BendPak XR-12000 User Manual

41
DIMENSIONS ARE IN MM
☺
A
B
C
D
14
15
DETAIL A
SCALE 1 : 3
7
8
10
54 9
20
DETAIL B
SCALE 1 : 3
6
13
12
11
DETAIL C
SCALE 1 : 3
2
1
DETAIL D
SCALE 1 : 4
3
19
18
16
17
21
22
23
NEXT ASSEMBLY
5250098
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5535119
M5 x 30mmL FLOOR ANCHOR
4
--
2 5530312
RHPS M5 x 55mmL
4
--
3 5550310
FTG TEE -04JIC -04JIC -04JIC
2
--
4 5545005
M6 FLAT WASHER
8
--
5 5535112
NUT M6 x 1.0
8
--
6 5540116
TRUARC Ø12mm 5103-50
8
--
7 5545201
WASHER, M12 SPRING LOCK
4
--
8 5530152
HHB M12 x 1.75 x 30mm
4
--
9 5530047
HHB, M6 x 1 x 30mmL
4
--
10 5540006
SNAP RING TRUARC 5103-100
4
--
11 5530167
HHB M10 x 1.5 x 45mm
4
--
12 5545200
WASHER M10 x Ø18 SL
4
--
13 5535998
NUT M10 x 1.5
4
--
14 5545535
C WASHER SHIM FOR LIFTS
20
--
15 5550489
FTG TEE 1/4-1/4-1/4 TUBE INS
3
--
16 5590175
POWER UNIT CONSOLE PUSH BUTTON AIR VALVE
1
--
17 5550486
FTG NPL -02 NPT x -04 F NPT
1
--
18 5550410
FTG ELB 1/4 TUBE INS 1/8 NPT
1
--
19 5550183
FTG ELB -06 JIC -06L ORB
1
--
20 5530019
HHB M6 x 1 x 16
4
--
21 5550106
FTG ELB -04 JIC-06 NPT
1
--
22 5550147
FTG NPL -04 JIC x -04 NPT
2
--
23 5550086
FTG ELB-04 NPT x -04 JIC
2
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5174219
01/15/2013
TM
00570
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5174680

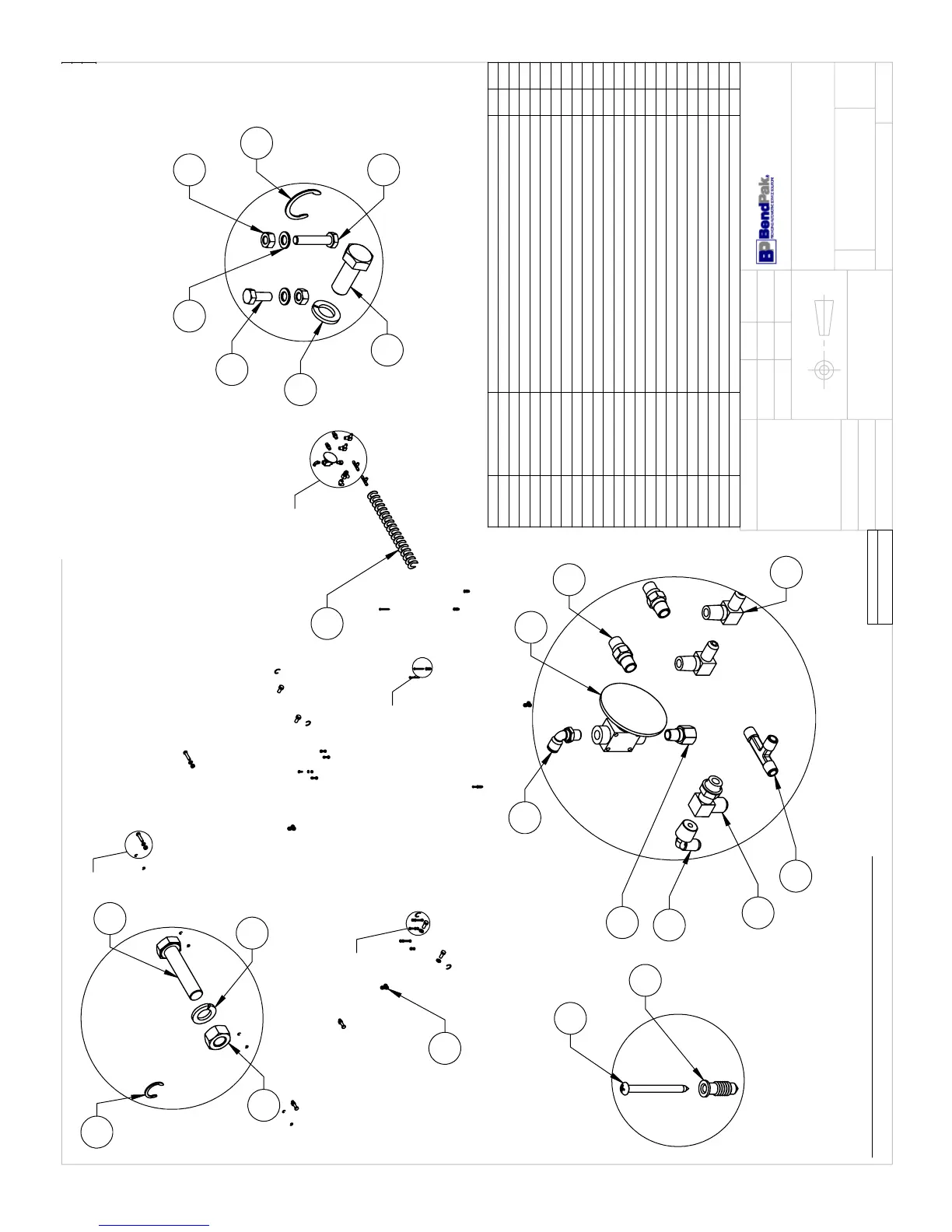

XR-12000 SERIES PARTS BAG
---
---
01/15/2013
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
MM
02/20/2013
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
