BendPak XR-12000 User Manual

42
DIMENSIONS ARE IN MM
☺
A
B
8
7
6
1
11
2
9
4
3
10
5
12
13
DETAIL A
SCALE 1 : 2
14
16
DETAIL B
SCALE 1 : 2
14
15 17
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
B
ADDED 5215361 AND 5502459
01/23/2013
TM
00570
C
ADDED 5540137, UPDATED BOM REVISION
03/05/2013
TM
00587
D
ADDED 5580422, 5530253, 5530060, 5535030,
UPDATED BOM REVISION
03/07/2013
TM
00588
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600727
XR-12000 CONSOLE WELDMENT
1
B
2 5736552
XR-12000 CONSOLE CYLINDER RETAINER PLATE
1
A
3 5746304
DOUBLE THREADED ROD M12 x 1.75 x 200
1
A
4 5535012
NUT M12x1.75 NL
1
--
5 5746305
XR-12000 SERIES CONSOLE CYLINDER PIN
2
B
6 5736547
XR-12000 CONSOLE PANEL
1
A
7 5530031
HHB M6 x 1 x 12
8
--
8 5701450
XR-12000 CONSOLE COVER
1
A
9 5535013
NUT M10 x 1.5 NL
6
--
10 5530249
THREADED ROD M10 x 1.5 x 105
2
--
11 5215361
XR-12000 VALVE BLOCK ASSEMBLY
1
C
12 5502459
CYLINDER ASSEMBLY Ø5.5 x 16.6
2
B
13 5540137
C RING, 50mm OD TRUARC 5103-200
4
--
14 5580422
MAGNETIC DOOR LATCH
2
-
15 5530253
FHPS M3 x 0.5 x 14
4
--
16 5530060
FHPS M3 x 0.5 x 5
2
--
17 5535030
NUT M3 x 0.5
4
--
NEXT ASSEMBLY
LIFT ACCESSORIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
D
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215579

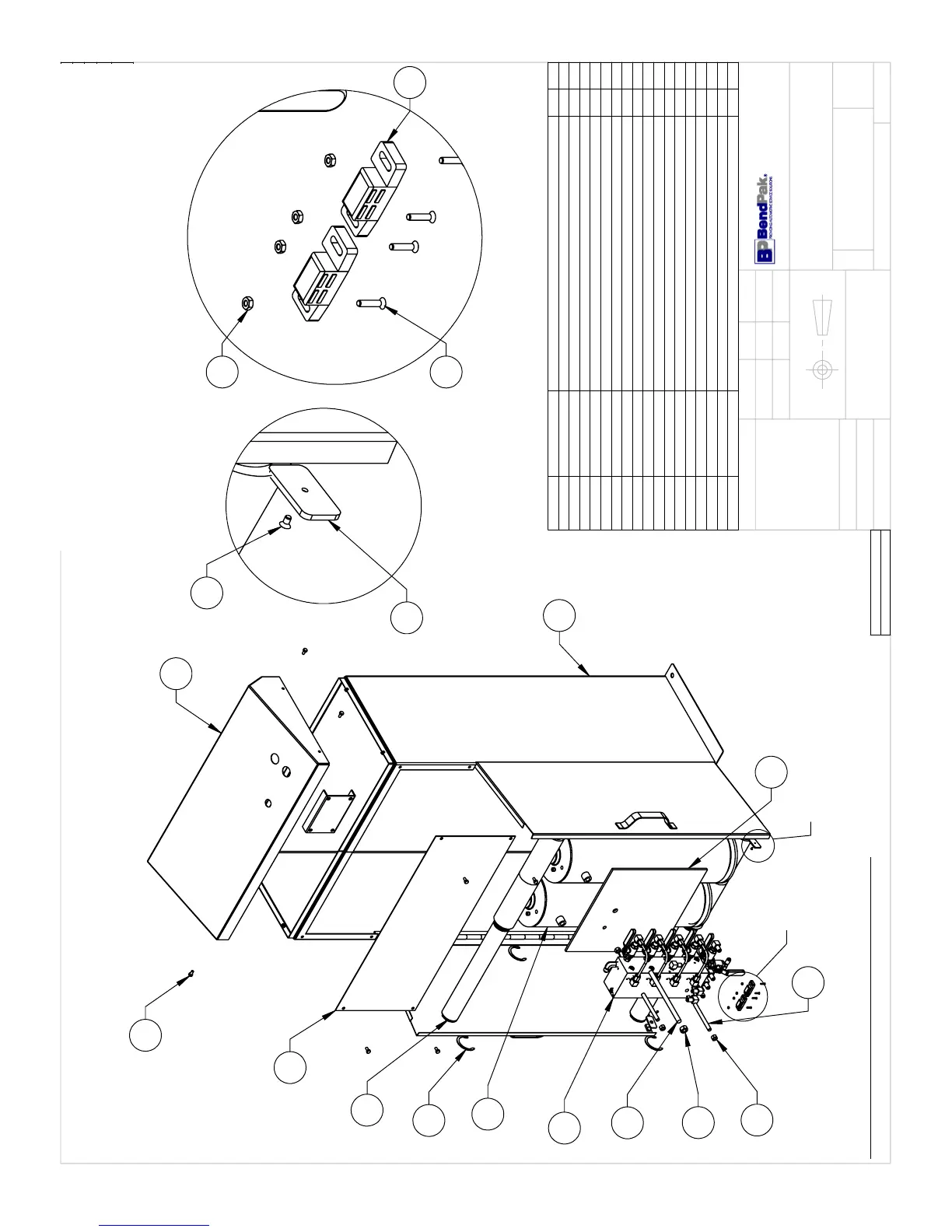

XR-12000 CONSOLE
ASSEMBLY
---
---
01/08/2013
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
MM
03/12/2013
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
