7 - 8
CONSUMER INFORMATION
The vehicle
identification
number or the
engine serial
number are used to
register the
vehicle,they are also
to assist your dealer
in terms of ordering
parts or referring to
special service
information

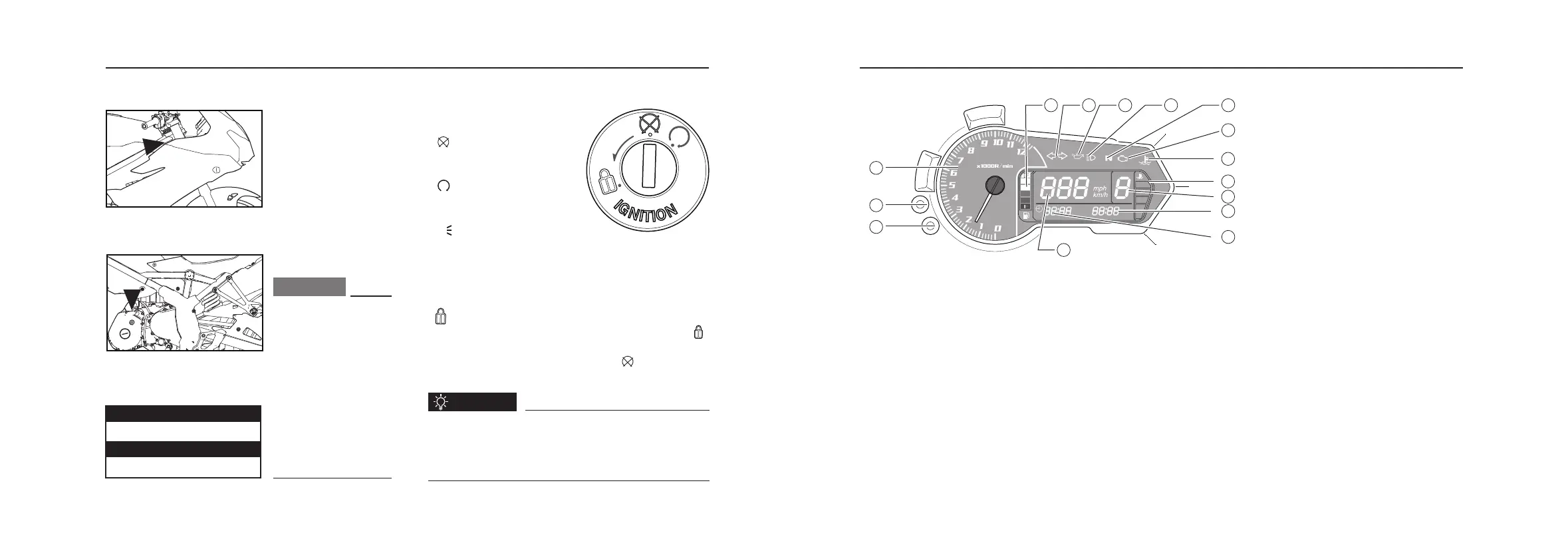

Meter & Indicator
engine serial number
● The vehicle identifi-
cation number ① is
stamped on the right
side steering head
tube.
● The engine serial
number ② is stamped
on the lower left of the
engine.
VIN No.
ENGINE No.
INSTRUMENT AND CONTROL
FUNCTIONS
“ ”（Off）position:
All the circuits are off.
“ ”（On） position:
The circuits are on.
“ ”(Parking): (IF EQUIPPED)
The taillight, license plate light and auxiliary lights
are on. The hazard lights and turn signal lights can
be turned on, but all other electrical systems are off.
The key can be removed.
“ ” (The steering lock) (IF EQUIPPED)
Turn the steering handle to left, press the key to “ ”
position, the steering lock is locked. When it needs
to open, insert the key and turn to “ ” position, the
steering lock is released;
P
Do not turn your key to lock the vehicle while
driving which is not necessary and is also apt to
cause accident.
Press the key in a proper force.
Vehicle identification number
( VIN )
1
2
P
U
S
H
miles
Km
TRIP AB
TOTAL
2
1
8
5
13
15
14
10
11
3
9
124 6 7
1. TACHOMETER
Tachometer indicates the revolution per minute of engine.
2. ADJUST BUTTON
Short press the button to switch between km/h and
mph.Long press the button to reset the "Trip" mileage.
3. SELECT BUTTON
Short press the button to switch between trip and
odometer functions on the meter.Press button “SELECT”
for several seconds, there will appear the interface for
time adjustment: “SELECT” for selection of digits of time
display and “ADJUST” for adjustment of each value.
4. FUEL LEVEL INDICATOR：
It indicates the fuel level in the fuel tank.
5.TURNING INDICATOR
The indication lamps would flash with the turning signals.
6.HIGH BEAM INDICATOR LAMP
When the high beam lamp of the headlamp turns on, the
high beam indicator lamp would be on.
10. ODOMETER & TRIP METER:
Relative mileage (TRIP): it records the mileage the
vehicle covers in a period of time.Odometer (TOTAL): it
records the total mileage the vehicle has covered in km.
11. CLOCK It shows the time.
12. ENGINE OIL PRESSURE WARNING LAMP
When this indicator light up, that means the bike has the
risk of insufficient lubrication and should be checked/
repaired immediately.
13. WATER TEMPERATURE INDICATOR
This indicator indicates the temperature of cooling liquid.
When the pointer is in between C and H, the temperature
is normal. It should stop to check the water tank if the
pointer is higher than H level.
14. FUEL LEVEL INDICATOR：
It indicates the fuel level in the fuel tank.
15. GEAR INDICATOR LAMP
Numbers on the meter indicate the gear positions of the
vehicleincluding 1, 2, 3, 4 ,5,and6.
7. NEUTRAL INDICATOR LAMP
When the transmission is in the neutral,
the indicator lamp would be on.
8. ENGINE CONTROL SYSTEM
TROUBLE INDICATOR:
Return to authorized dealer if this indicator
is activated during riding.
9.SPEEDOMETER
Speedometer shows the running speed,
hours/kilometers.
c
H
