Benelli TRK 502X - Page 14

TRK 502/ 502X
14

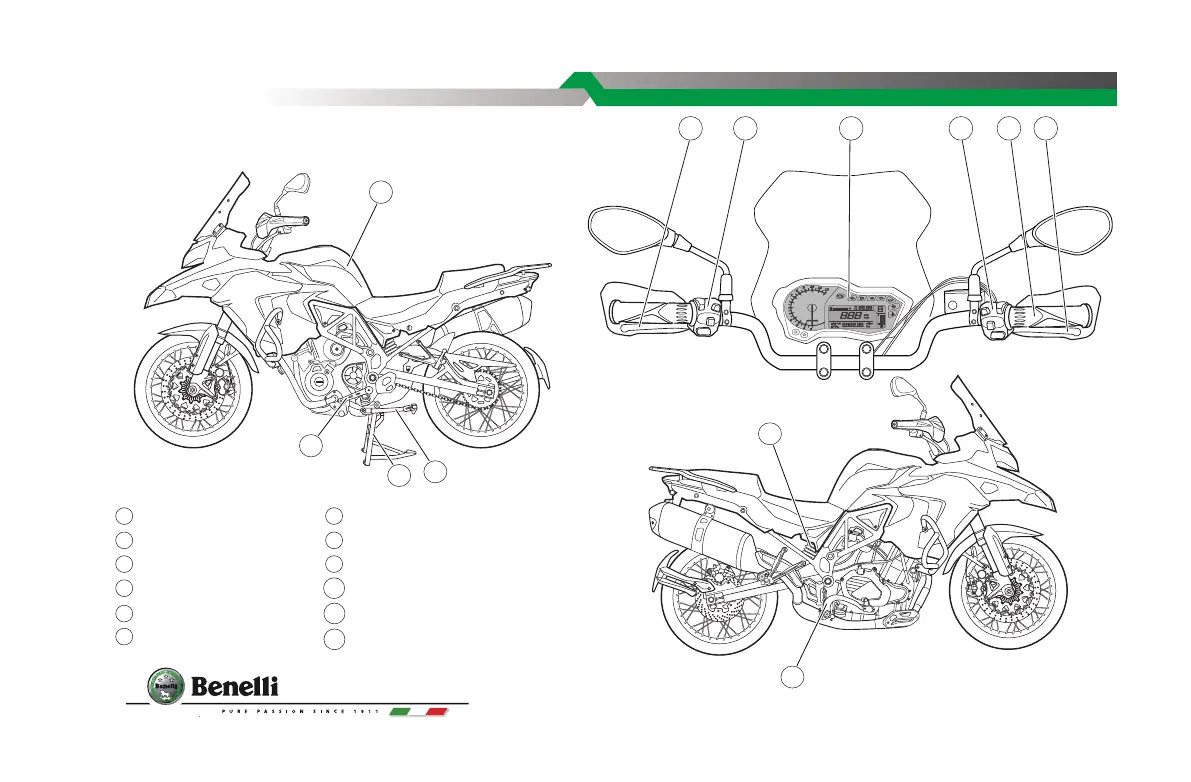

LOCATION OF PARTS
1 Clutch lever
2 Left handle switch
3 Meter
4 Right handle switch
6 Front brake lever
5 Throttle grip
7 Rear shock absorber
8 Rear brake pedal
9 Shift pedal
10 Main stand
11 Side stand
12 Tank
Off-Road Version (B)
Left view
Right view
1 5 42 63
12
9
10
11
8
7
