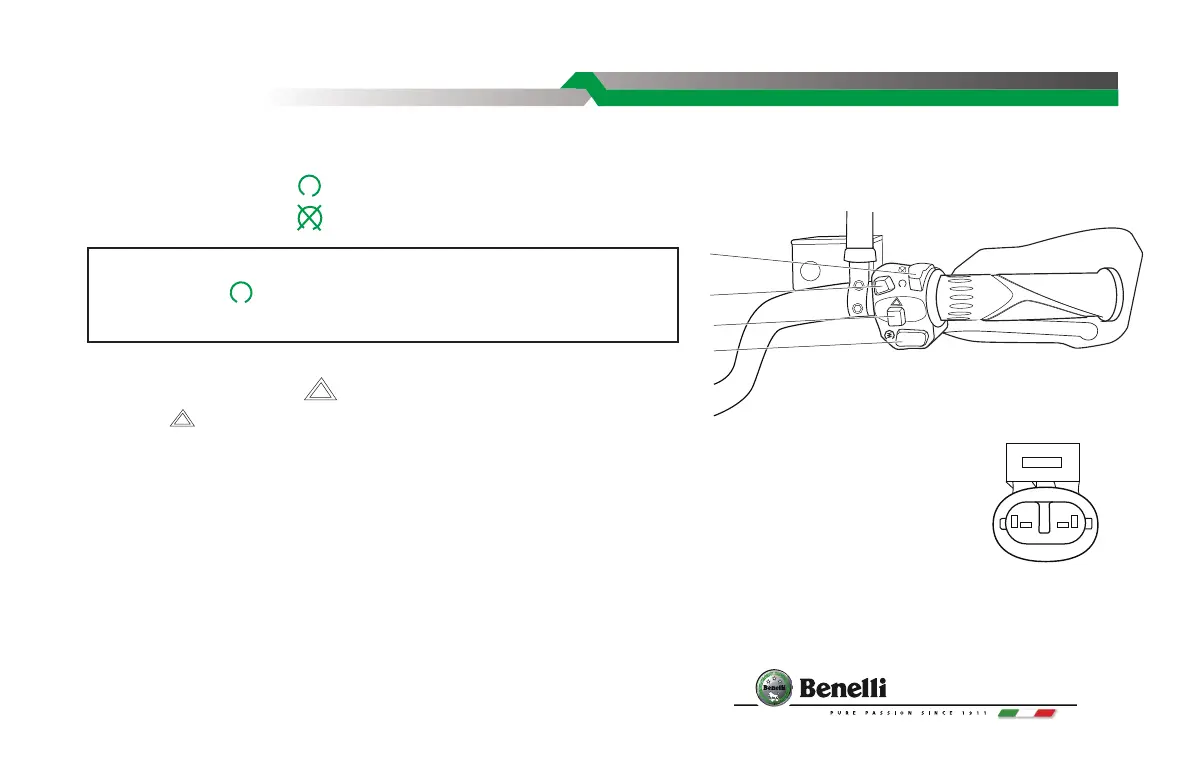

RIGHT HANDLE (B)
1. ENGINE STOP SWITCH
When the switch is on " " position and the power is on, the engine runs.
When the switch is on " " position and the power is o, the engine will not run.
2. HAZARD SWITCH” ”
Turn to “ ” and the four direction signal lamps would flash to warn
for emergency situation;turn to "●" for daytime driving.
3. ELECTRIC STARTER BUTTON
Pull the clutch lever or put in Neutral gear and press the button to run the
electric motor and start the engine.
4. HANDLEBAR HEATING BUTTON (IF EQUIPPED)(THE MAXIMUM CURRENT IS 2A)
Press the button to heat the handlebar, press again to stop heating.
PRIMARY PARTS
Note：Under normal conditions, this switch shall be
on "Operate" ( ) position. Use this switch under
emergency situation, for example accident or key switch problems.
1
2
4
3
Handlebar Heating Connector

Benelli TRK 502X Specifications

General

Displacement	500 cc
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Max Power	47.6 HP (35 kW) @ 8500 rpm
Transmission	6-speed
Final Drive	Chain
Frame	Steel Trellis
Ground Clearance	220 mm
Fuel Tank Capacity	20 liters
Weight (Dry)	213 kg
Engine Type	Liquid cooled, 4-stroke, 2-cylinder
Max Torque	46 Nm @ 6000 rpm
Fuel System	Electronic fuel injection
Front Suspension	50 mm upside-down fork, adjustable
Rear Suspension	Single shock, adjustable
Front Brake	320 mm double disc, ABS
Rear Brake	260 mm single disc, ABS
Front Tire	110/80 R19
Rear Tire	150/70 R17
Seat Height	840 mm
