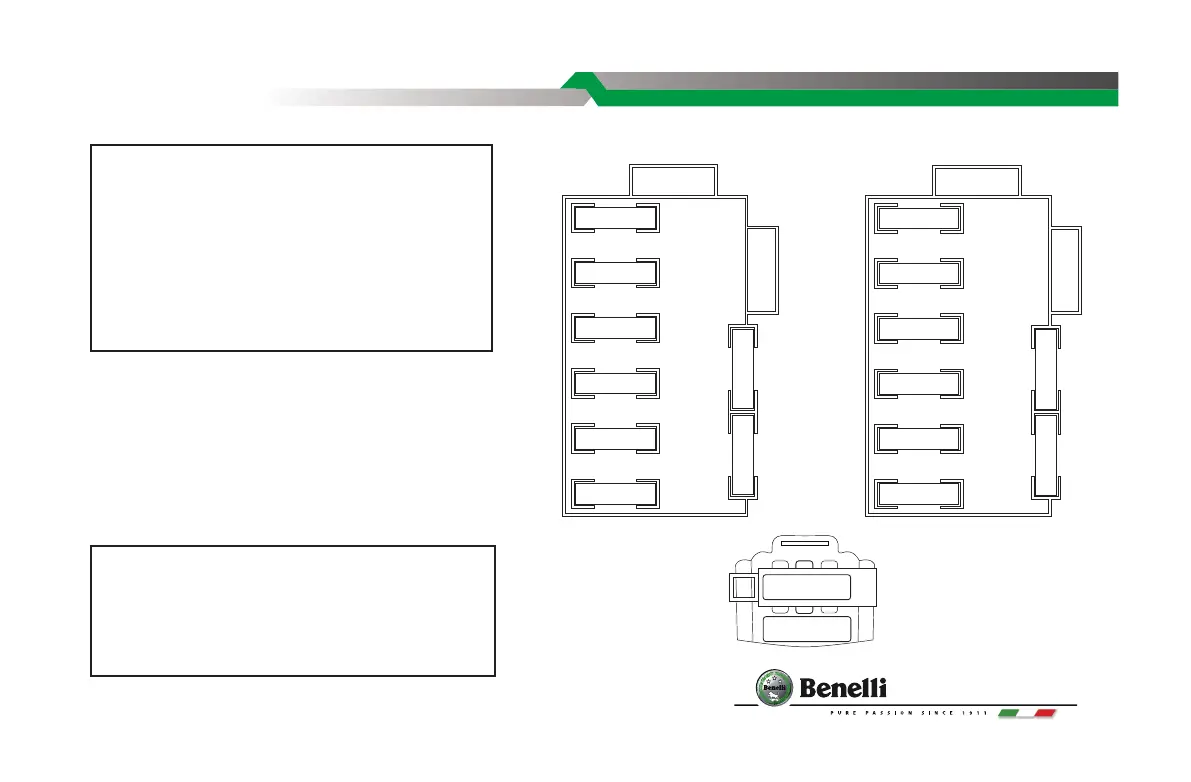

FUSE REPLACEMENT
The fuse is beside the battery. Frequent
blowing of fuse indicates short circuit or over
loading. Contact with the authorized dealer
for proper repairing.
Use the fuses for the same specication as indicated.
INSPECTION& MAINTENANCE
Notice:
The new bulb installed must in the same
specication with the old one. High-power
bulb will increase load to circuit system
which will cause faults such like battery
power shortage.
Warning:
It's dangerous to use other specications
of fuse, which would result severe failures
like burning, ring.
15A
15A
15A
15A
10A
15A
10A
15A15A
or
FUEL
PUMP
FAN
POWER
LOCK
ECU
HEAD
LIGHT
IGNITION
COIL
15A
15A
15A
10A
15A
10A
15A15A
FUEL
PUMP
FAN
POWER
LOCK
ECU
IGNITION
COIL
With Headlight SwitchWithout Headlight Switch
40A
40A
ABS fuse

Benelli TRK 502X Specifications

General

Displacement	500 cc
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Max Power	47.6 HP (35 kW) @ 8500 rpm
Transmission	6-speed
Final Drive	Chain
Frame	Steel Trellis
Ground Clearance	220 mm
Fuel Tank Capacity	20 liters
Weight (Dry)	213 kg
Engine Type	Liquid cooled, 4-stroke, 2-cylinder
Max Torque	46 Nm @ 6000 rpm
Fuel System	Electronic fuel injection
Front Suspension	50 mm upside-down fork, adjustable
Rear Suspension	Single shock, adjustable
Front Brake	320 mm double disc, ABS
Rear Brake	260 mm single disc, ABS
Front Tire	110/80 R19
Rear Tire	150/70 R17
Seat Height	840 mm
