Benelli TRK 702 User Manual

3 - 8
Instrument and control functions
EN
3

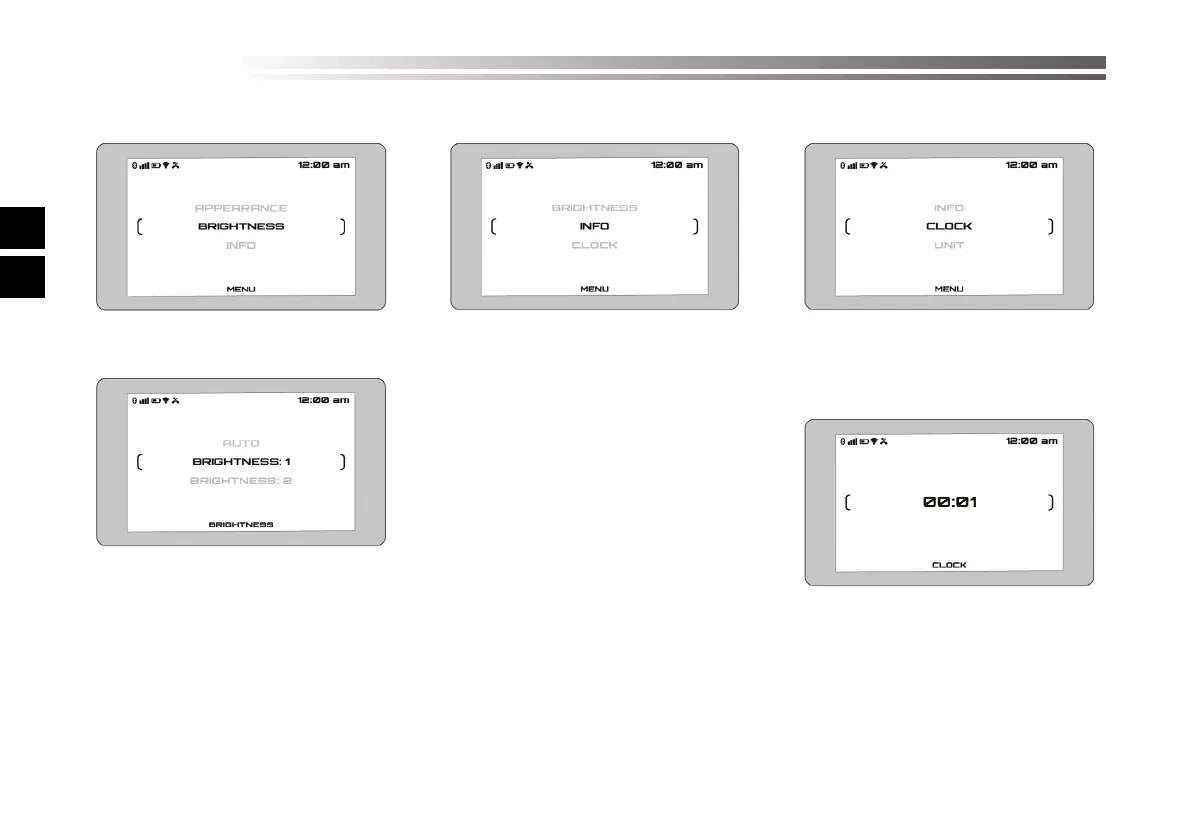

• BRIGHTNESS
You can select 5 brightness levels or AUTO.
When AUTO is selected, the brightness
sensor will adjust the display brightness
automatically based on the ambient bri-
ghtness.
• INFO
The fault codes present, the fault code hi-
story, the battery voltage, and the softwa-
re version installed in the multifunction
display can be viewed.
• CLOCK
It shows the time expressed in hours and
minutes. After having accessed the CLOCK
menu, the rst digit starts blinking.
Short press the SELECT button to change
the number or press ENTER to move the
blinking digit to the next position. Once
having completed the clock adjustment,
wait 5 seconds to allow the display to go
back to the main screen automatically.

Benelli TRK 702 Specifications

General

Displacement	698 cc
Bore x Stroke	83 mm x 64.5 mm
Compression Ratio	11.6:1
Fuel System	Electronic fuel injection
Transmission	6-speed
Final Drive	Chain
Seat Height	825 mm
Fuel Tank Capacity	20 liters
Engine Type	Liquid-cooled, 4-stroke, 2-cylinder
Maximum Torque	68.2 Nm @ 6, 250 rpm
Front Suspension	Upside-down telescopic fork
Rear Suspension	Monoshock, adjustable
Front Brake	Dual discs
Rear Brake	Single disc
Front Tire	110/80 R19
Rear Tire	150/70 R17
Weight	220 kg
