Benelli TRK 702 User Manual

3 - 10
Instrument and control functions
EN
3

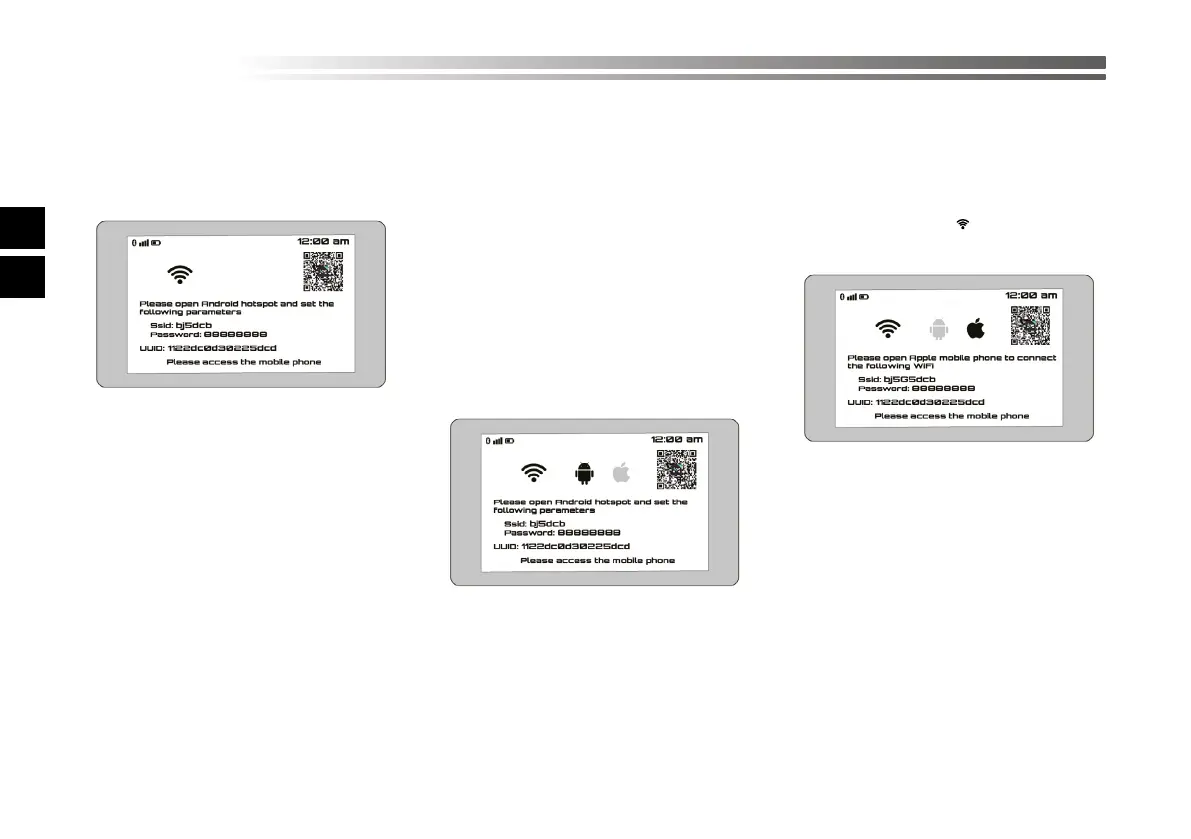

Apple device
For connection to the multifunction di-
splay via Apple device, access the WIFI
menu of the phone and connect with the
network shown on the display.
Once the WIFI connection is completed
successfully, the icon will be displayed.
By short pressing the SELECT button, the
Android or Apple pairing mode can be se-
lected.
Once having selected the related icon,
press ENTER to conrm.
Android device
For connection to the multifunction di-
splay via Android device, create a Hotspot
by entering the username and the pas-
sword as shown on the display.
• WIRELESS CONNECTION
Press the ENTER button for 3 seconds with
the bike stopped to access or exit the WI-
RELESS connection menu.
The WIRELESS connection menu allows
to scan the QR code for downloading the
App “CARBIT RIDE” from Play Store or
App Store, for accessing the navigation
mode on the vehicle.
NOTE
The download of a dierent application
might be necessary over time.
By short pressing “ENTER” button, the pai-
ring menu of the multifunction display
can be enabled/disabled.

Benelli TRK 702 Specifications

General

Displacement	698 cc
Bore x Stroke	83 mm x 64.5 mm
Compression Ratio	11.6:1
Fuel System	Electronic fuel injection
Transmission	6-speed
Final Drive	Chain
Seat Height	825 mm
Fuel Tank Capacity	20 liters
Engine Type	Liquid-cooled, 4-stroke, 2-cylinder
Maximum Torque	68.2 Nm @ 6, 250 rpm
Front Suspension	Upside-down telescopic fork
Rear Suspension	Monoshock, adjustable
Front Brake	Dual discs
Rear Brake	Single disc
Front Tire	110/80 R19
Rear Tire	150/70 R17
Weight	220 kg
