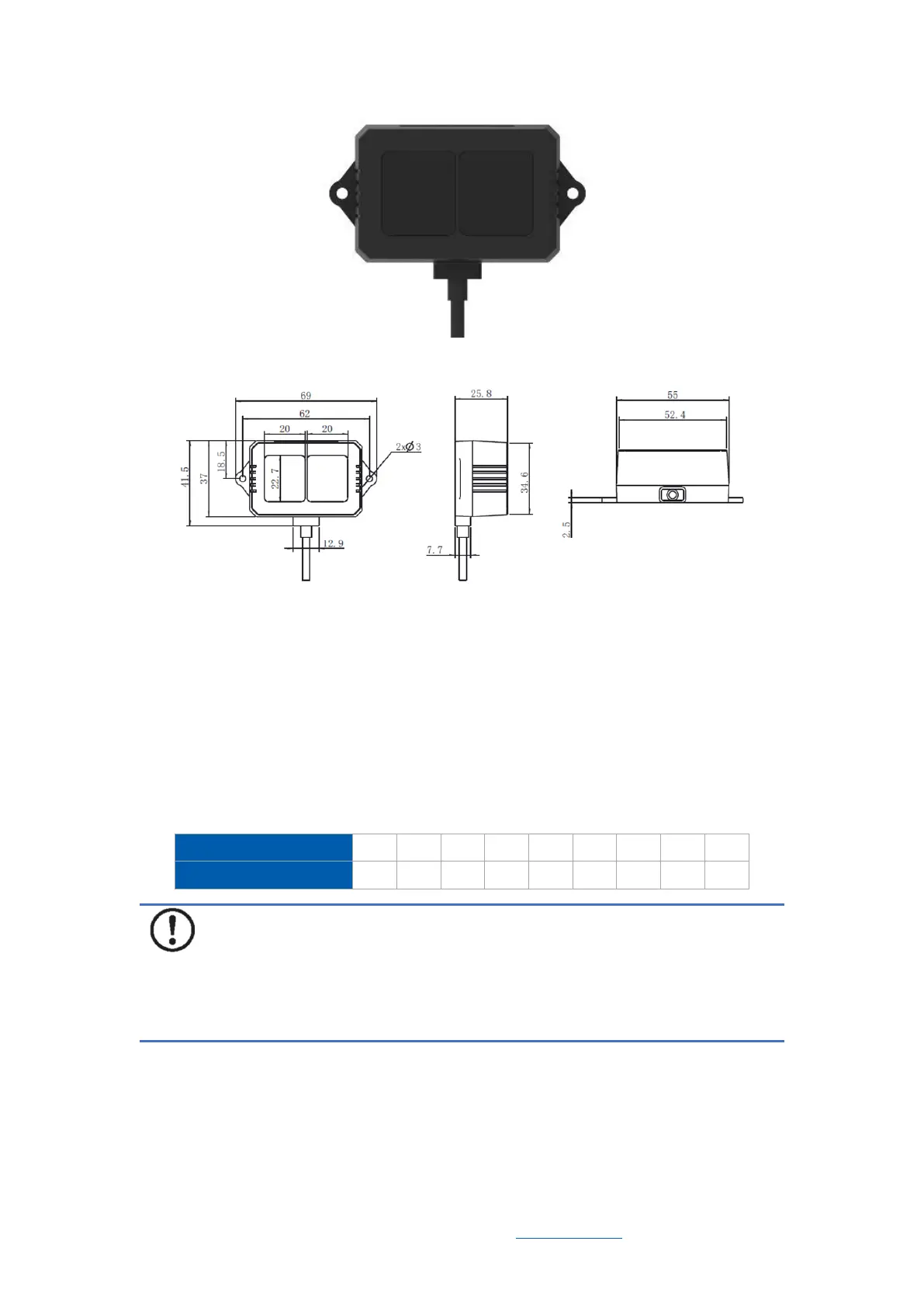

Figure 1-1 Appearance of TF02-Pro
Figure 1-2 Dimensions of TF02-Pro (Unit: mm)
TF02-Pro is recommended to use M2.5 round Phillips screws for installation. Please
remove the protective film of the optical lens before use. The lens of front panel of LiDAR
cannot be covered. Please keep it clean. The surface of optical lens is the ranging zero
of LiDAR.
The detection angle of TF02-Pro is 3°. At different distances, the size of light spot,
namely the edge length of the detection range, is different. Side length of the detection
range at different distances (the detection range is a square), is shown in Table 1-2.
Table 1-2 Spot Size at Different Distances
Distance (m)
1
2
3
5
7
10
20
30
40
Spot Size (cm)
5
10
16
26
37
52
105
156
208
Note
The side length of target object generally should be larger than size of the
TF02-Pro light spot; if the side length of the detected object is smaller than
size of light spot, the output (Distance) from TF02-Pro will be a value
between the actual distance values of the two objects.
1.4 Storage
 Device should be stored at -30°C to 80°C with a relative humidity ≤ 60% and
ventilation free from corrosive gases.
