2 to 9 Tonne Dumper Instruction Manual
Towing
z If using a crane or lifting device the rope, chain, strap etc.
should be of sufficient strength to support the machine safely
and be free from damage. See Technical Data section for
machine weights.
No Lifting Point On 9 Tonne Dumper
z Before lifting the dumper ensure the vehicle is positioned in the
straight ahead position, i.e. front and rear chassis are in line.
To prevent both chassis halves swinging relative to each
other the articulation lock must be used.

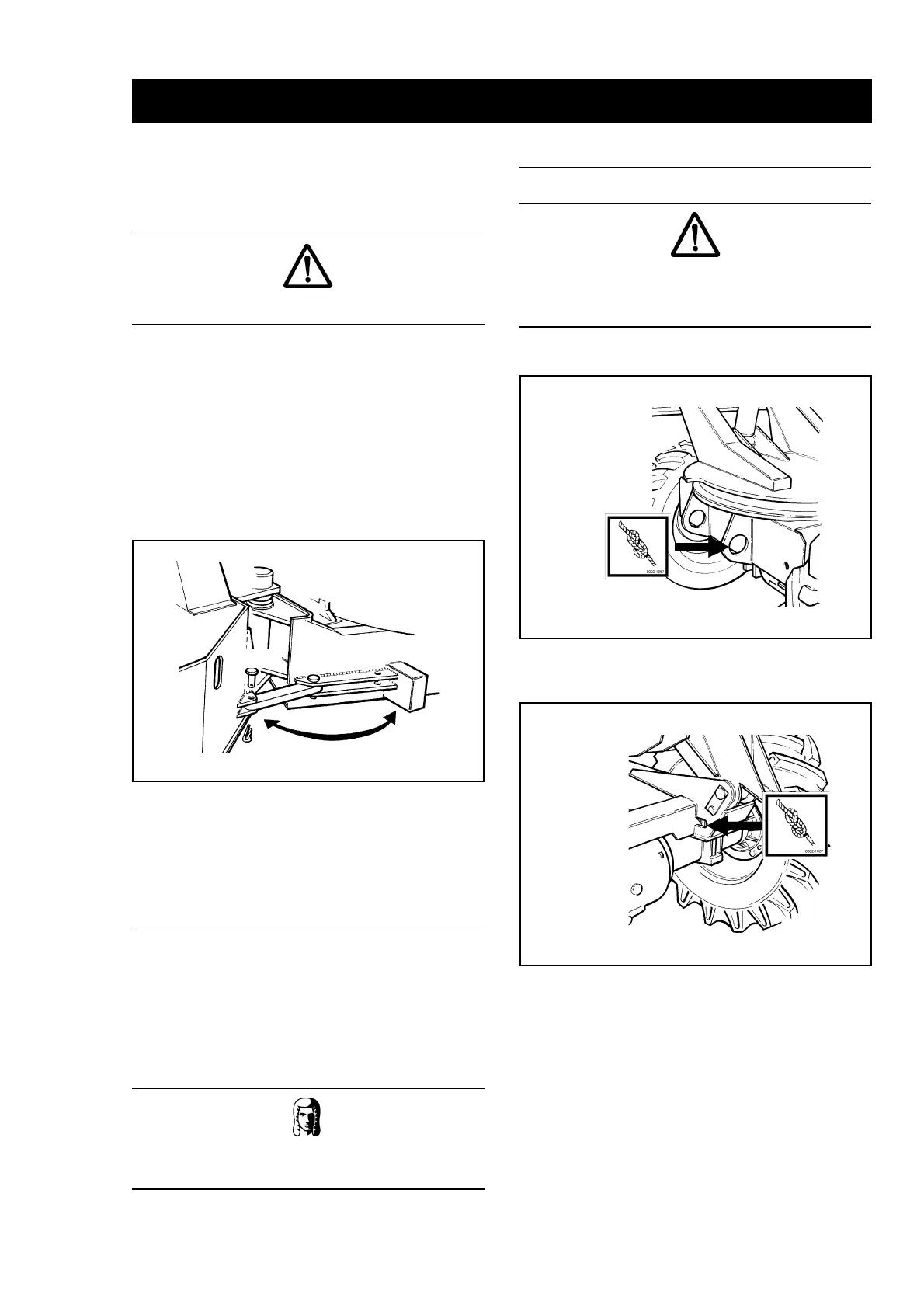

To fit the lock remove grip clip and pin from front storage
position. Pivot the locking bar around until the holes in the
bar are in line with the holes in rear chassis locking bracket.
Fit the pin through the holes and secure with the grip clip.
z Secure the dumper to the lorry chassis using chains, straps
or ropes of sufficient strength attached to the machines front
lashing points and the rear towing hitch.
Using Dumper as a Towing Vehicle
The dumper is not purpose designed as a towing vehicle, but if
so used always make sure the weight of any trailer and its load
does not exceed half the rated payload of the dumper. It is
important that if used as a towing medium skip should be loaded
with half the rated payload to provide adhesion when braking.
Never tow down gradients as 'jack knifing' may occur and
always tow in first gear on level ground.
Manufacturer Cannot be Held Responsible for Any Accident
Resulting from the Use of this Dumper as a Towing Vehicle
Towing - Torque Converters Models
If towed, disconnect the top drive propshaft to prevent
gearbox oil starvation. Failure to observe this
instruction may cause extensive gearbox damage
Grip Clip
Pin
Swing Skip
Fixed Skip
