Benford 5000 - Lubrication Points and Lubricants 5, 6, 7 and 9 Tonne Straight

June 2004 - 9507EL/5
3-11
2 to 9 Tonne Dumper Instruction Manual

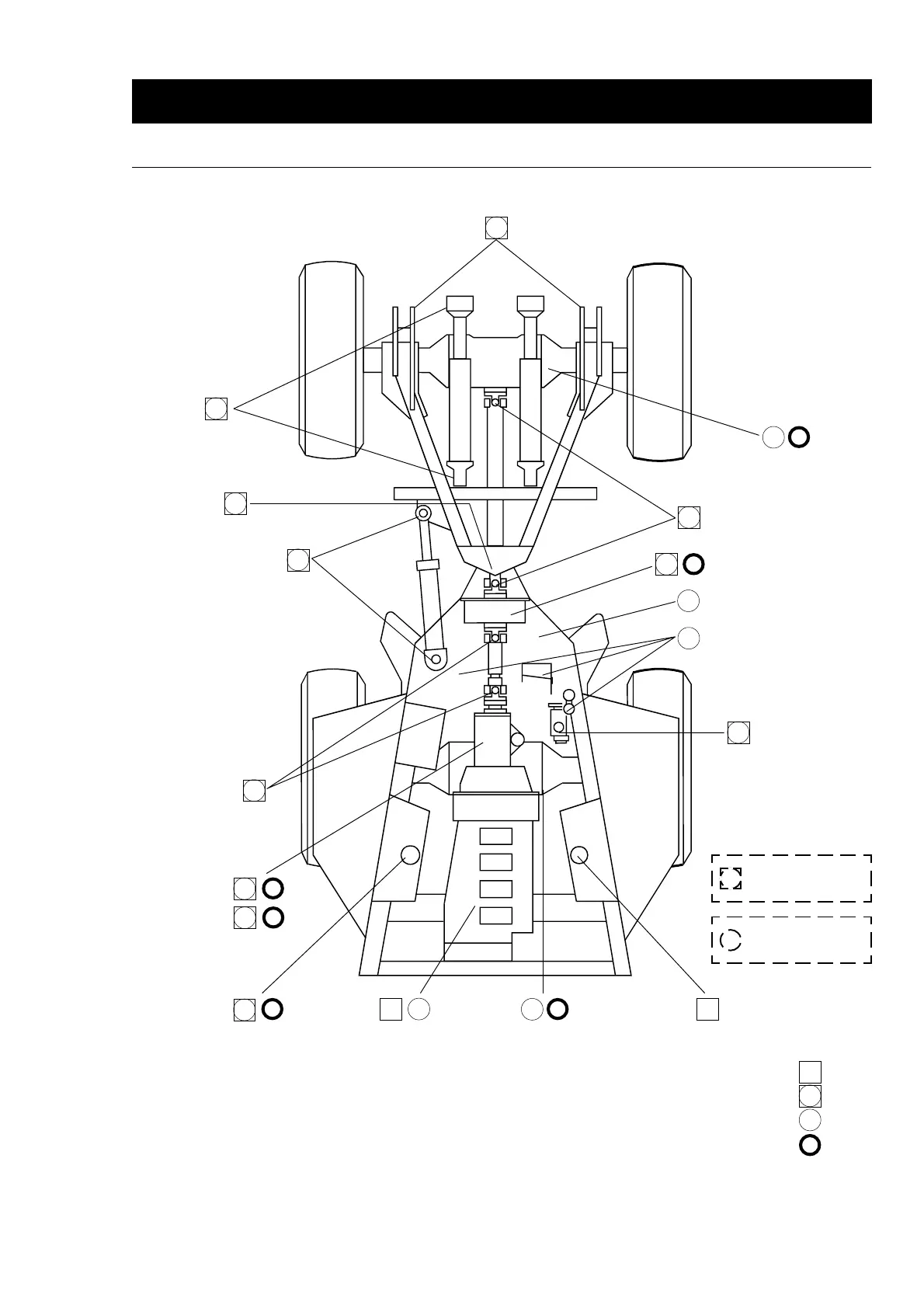

Lubrication Points and Lubricants 5, 6, 7 and 9 Tonne Straight
Lubrication
Gearbox
Gearbox ITL
1
Drive Shaft
Couplings
1
Steer Ram
Pivots
1
Drive Shaft Couplings
2
2
Transfer Box
1
Handbrake Cable
1
Brake, Clutch and
Accelerator Linkage
5
Brake Reservoir
3
3
4
4
Engine Sump
3
3
6
Fuel Tank
5 5
7
Centre Pivot
1
Skip Ram
Pivots
1
Skip Pivots
Front Axle
Rear Axle
8 8
1 ......... Multi-Purpose Grease 5 ......... HDZ46 Daily
2 ......... SAE 85W/90 6 ......... Diesel Weekly
3 ......... Mobilfluid 422 or Texaco AS Trans. - 8 Stud 7 ......... Texaco Multifac EP2 Grease Monthly
4 ......... 15W/40 API CC/SE 5, 6 & 7 8 ......... Texomatic C3 Six Monthly
........... SAE 15W/40 - 4, 5, 6000 & 2/3000 Deutz 9 ......... Texamatic 9330
Radiator Coolant
Level
Grease Folding
ROP's Pivot
Hydraulic Tank
9 9
