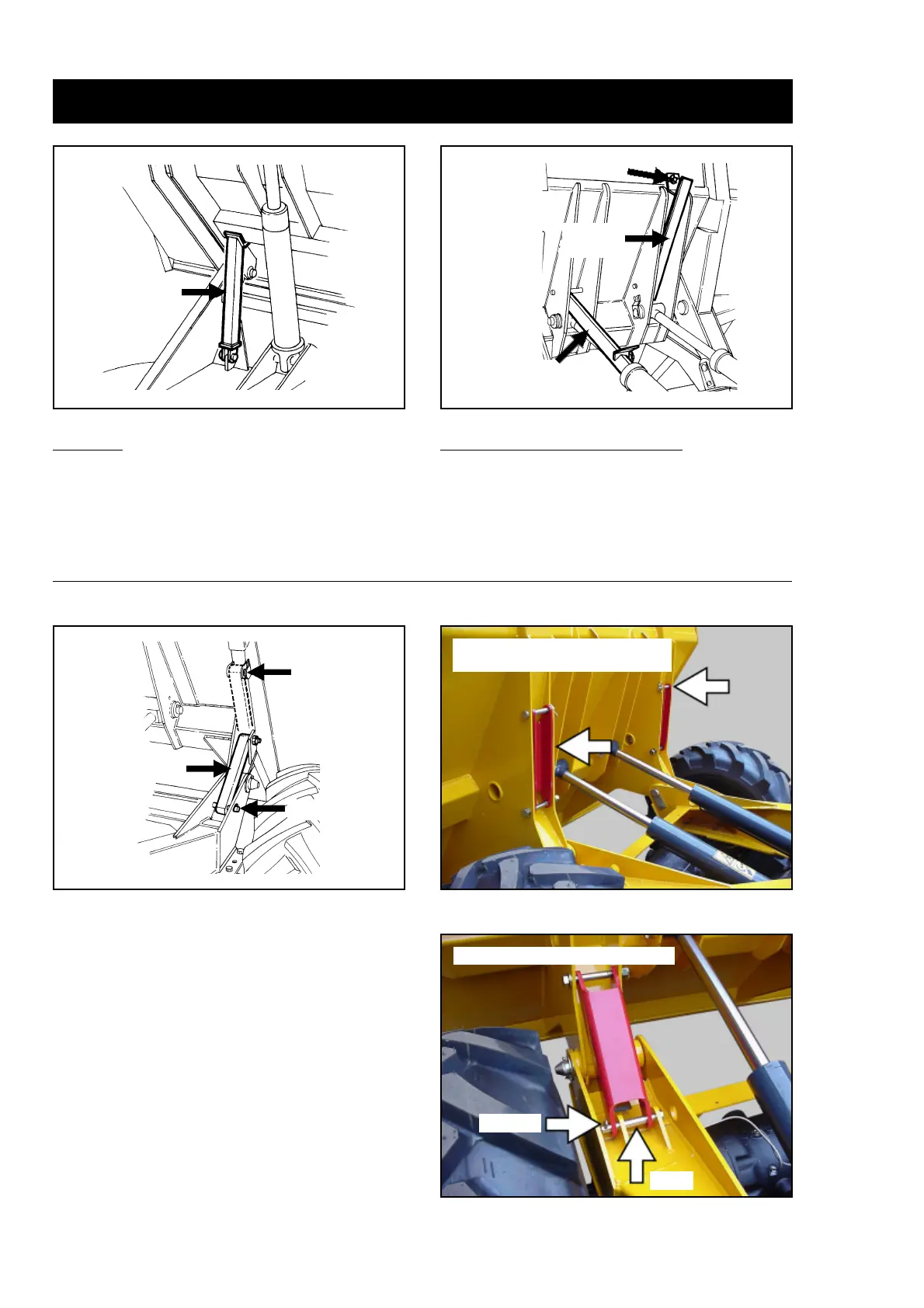

Benford 5000 - Skip Prop Instructions

June 2004 - 9507EL/5
3-6
2 to 9 Tonne Dumper Instruction Manual
Skip Prop Instructions
z Once the skip has been fully elevated, remove the upper grip
clips from both skip props in turn.
z Remove the pins and allow the props to enter the lock
positions on the front chassis.
z Position the pins through the holes in the front chassis and
through the corresponding holes in the props. When pushed
fully through, push the grip clips securely through the locking
pins.
Skip Prop
Linch Pin
Skip Prop
Stored
Skip Prop in
Prop Position
Swing Skip
z Elevate the skip fully and lift the skip prop into its upright
position. Lower skip until the skip prop supports the skip.
2, 3, and 4 Tonne Straight Skip Including 9 Tonne from August 2002
Early 5, 6, 7 and 9 Tonne Straight Skip
z Elevate skip fully, remove linch pins securing props in their
storage position. Lower both props gently onto the extended
rams. Lower skip until skip props support the skip.
Skip Prop
Pin
Pin
0202-046a
9000 - Skip Props in Locked Position
Grip Clip
Pin
0202-044a
9000 - Skip Props in Storage Position
with Pins and Grip Clips Fitted
