June 2004 9507EM/5
2-8

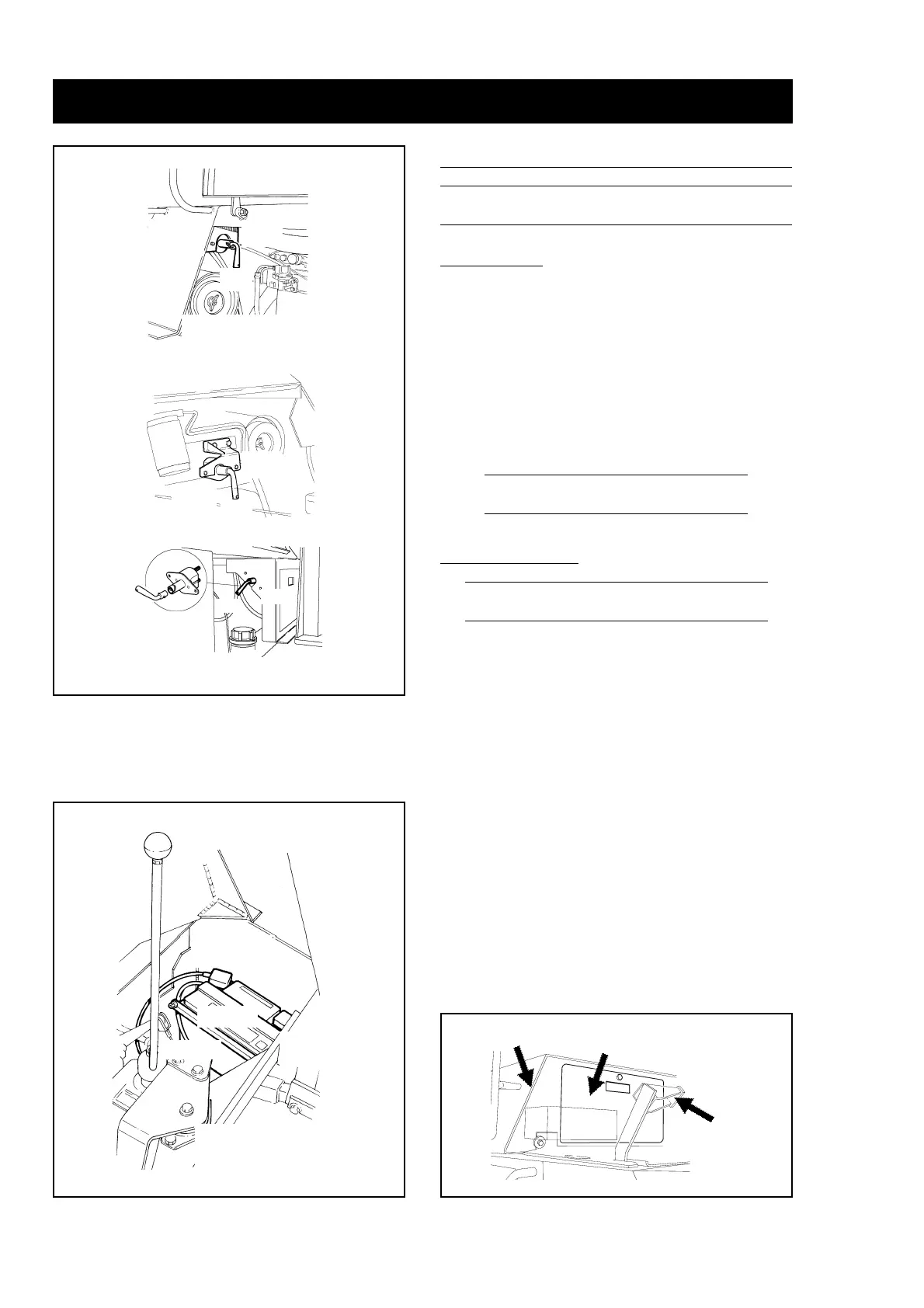

2 to 9 Tonne Dumper Instruction Manual
Maintenance
Battery
Before Attempting Any Major Maintenance Disconnect Battery
Battery Isolator
Battery Isolator must always be used when carrying out service/
maintenance work which would be dangerous if the engine was to be
started or the machine electric system were to be activated.
When major maintenance work is being carried out,
battery must be disconnected.
The battery isolator lever is removable when in the OFF position
and may be used as an anti-vandal device when the machine is
left for periods of time.
Use Isolator for Emergency Battery Isolation
Battery Maintenance
Disconnect Negative Battery Lead Connection First
z Always wear safety glasses when working on the battery.
z Always disconnect Negative (-) battery lead before
disconnecting the Positive (+) battery lead.
z Always connect the Positive (+) battery lead first when
reconnecting battery and ensure battery vent pipe is correctly fitted.
z Never allow metal objects to touch both battery terminals at
same time or allow metal objects to touch Positive (+)
terminal and frame.
z When charging the battery hydrogen gas is produced. Ensure
the area is well ventilated to prevent the risk of explosion
from a build up of hydrogen.
z Do not smoke, weld, cut, grind etc. in vicinity of a battery
being charged.
z If the skin is exposed to battery electrolyte, the affected skin
must be washed immediately with running water.
z If eyes are exposed to battery electrolyte wash eyes with running
water and obtain immediate professional medical attention.
Fuel Tank
Battery
Isolator
9000 Only
ON
OFF
Battery
Isolator
Nearside
Bonnet Door
2, 3 & 4 Tonne
5 & 6 Tonne Deutz
OFF
ON
OFF
ON
Battery
Perkins Only
9000 Only
Battery Access Door
Seat Support
Brake
Pedal
Battery
Gearlever
Battery Location,
Floorplate Removed
Battery
Positive
Terminal
Vent Pipe
Negative
Terminal
To Next Page
