2 to 9 Tonne Dumper Instruction Manual
Driving Controls
0202-085a
A
B
I
G
D
E
C
F
H
J
srekaerBtiucriCsgninraWelbiduA-A
hctiwSnoitceriDenihcaM-B
gninraWegrahCyrettaB-C
gninraWerusserPliOxobraeG-D
gninraWerutarepmeTretaW-E
erusserPliOenignE-F
gninraW.pmeTliOxobraeG-G
gninraWNOekarBgnikraP-H
nottubnroH-I
gninraWretaeHenignE-J
gninraWYNA,enihcaMehtgnitarepOnehw,fienignEehtpotSdnanoitisoPefaSanienihcaMehtkraP
.enihcaMehtgnisUerofeBdeifitceRmelborPehtevaH.detanimullIsithgiL

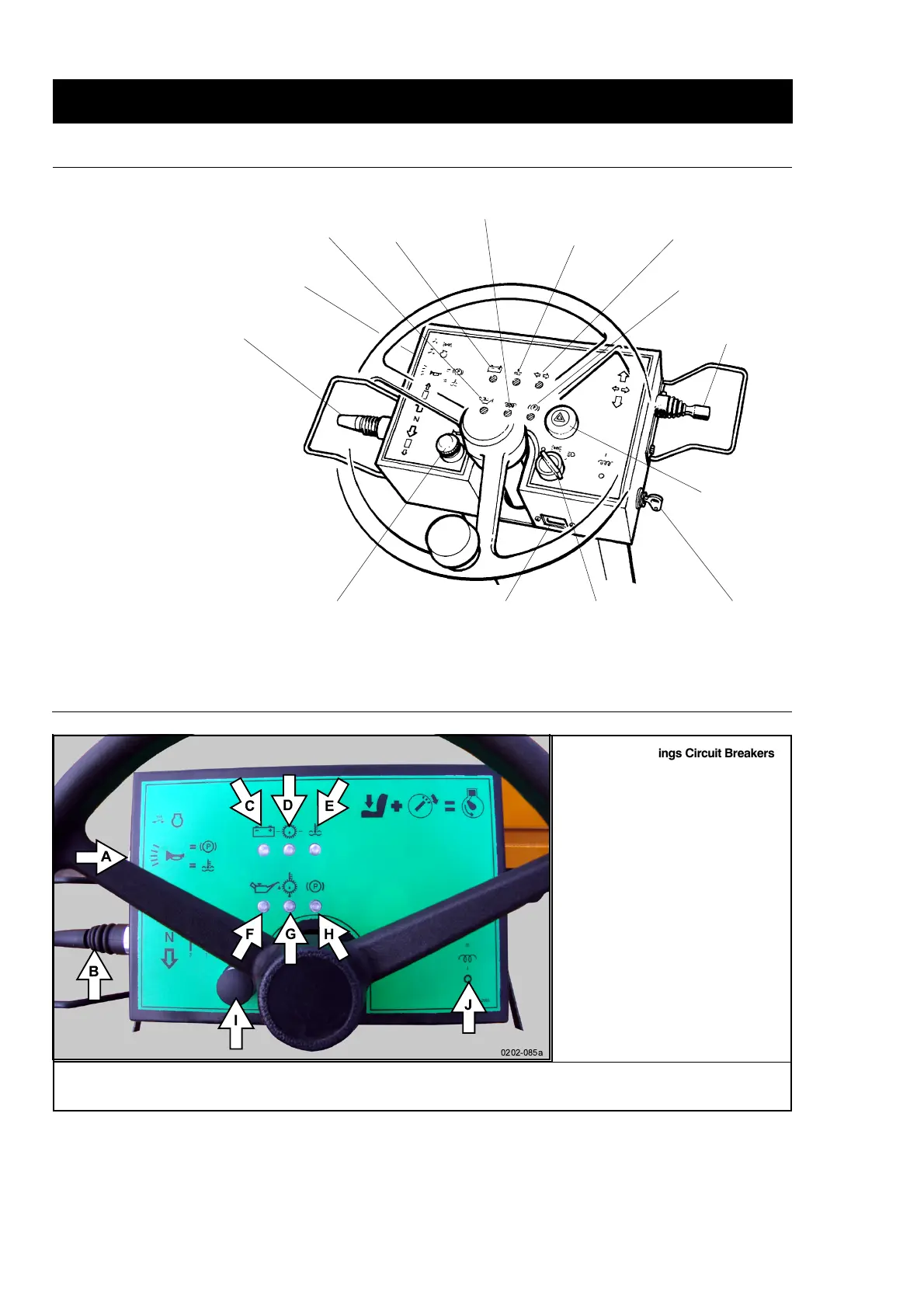

Dashboard Controls - Machines Fitted with ITL Gearbox
4 Tonne Perkins 3.152
5 Tonne Perkins 1004-4 / 1004-42
6 Tonne Perkins 1004-4 / 1004-42
5 Tonne Deutz F4L913
6 Tonne Deutz F4L913
7 Tonne Perkins 1004-4 / 1004-42
9 Tonne Perkins 1004-4T / 1004-40T
Hazard Light
Switch
Horn Hour Meter Light Switch Start Switch
Battery
Charge Light
Circuit Breakers and
Audible Warning
Oil Pressure
Light
Indicator
Switch
Handbrake Light
Indicator
Warning Light
Water Temp or
Fan Belt Light
Engine Heater
Light - if fitted
Forward / Reverse
Selector Switch
Dashboard Controls - Machines Fitted with Turner Gearbox
