June 2004 9507EM/5
2-22
2 to 9 Tonne Dumper Instruction Manual
Maintenance

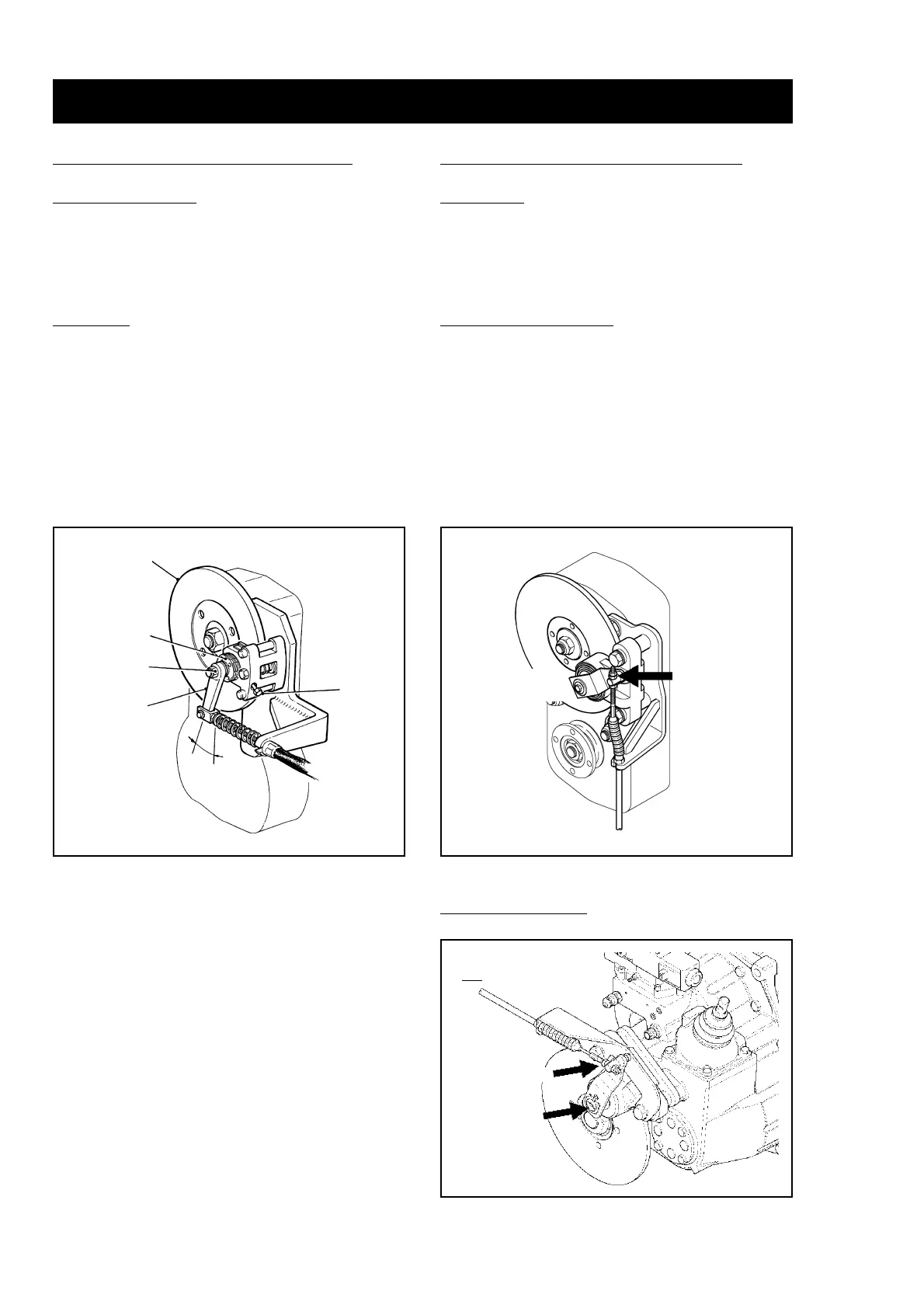

Transmission Parking Brake - Upto March 2001
4, 5, 6, 7 and 9 Tonne
The parking brake is mounted on the transmission between the
gearbox and the transfer box, and can be accessed from the
underside of the dumper. Wear can occur either by stretching of
the handbrake cable, or wear on the disc pads themselves,
causing a reduction in efficiency.
Adjustment
z Slacken locking bolt and screw in brake module until linings
contact disc.
z Back off module until flat lines up with locking bolt. Tighten
locking bolt.
z Remove retaining nut from piston and position operating
lever as shown.
z Refit nut and tighten securely.
z Reconnect brake cable.
Transmission Parking Brake - From March 2001
5 to 9 Tonne
The parking brake is mounted on the transmission between the
gearbox and the transfer box, and can be accessed from the
underside of the dumper. Wear can occur either by stretching of
the handbrake cable, or wear on the disc pads themselves,
causing a reduction in efficiency.
Adjustment - Turner & ITL
z Slacken the locknuts on the handbrake cable.
z Tighten the lower nut until the linings contact the brake disc
and prevent the disc from turning easily.
z Slacken the nut off until the brake disc turns freely without
any friction on the brake disc.
z Tighten the locknuts and check the brake disc still turns freely.
z Any further adjustment should be done using the handbrake
lever, as described previously.
Brake Disc
Locknuts
Handbrake Cable
Handbrake
Caliper
From March
2001
Disc
Brake
Module
Retaining
Nut
Operating
Lever
Locking
Bolt
30º
Upto March
2001
9000 with ITL Gearbox
ITL
ITL_Gearbox
Handbrake
Cable
Brake Disc
Handbrake
Caliper
Locknuts
