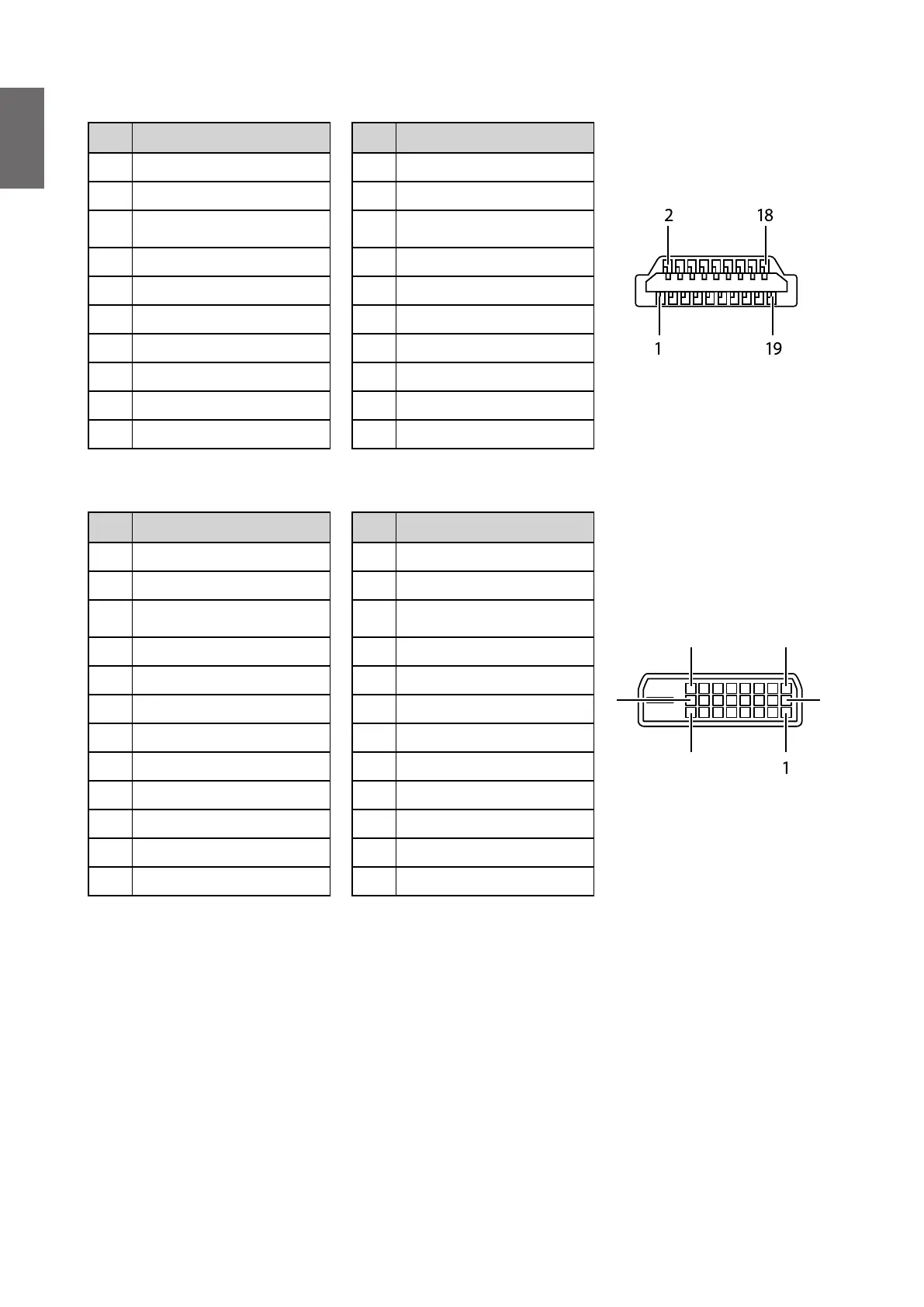

HDMI 1
No. Serial No. Serial
Even-numbered pins of 2 to 18
Odd-numbered pins of 1 to 19
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5 V Power (max 50 mA)
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
DVI-D
No. Serial No. Serial
8
16
1724
9
1 T.M.D.S data 2- 13 -
2 T.M.D.S data 2+ 14 -+5 V
3 T.M.D.S data 2/4 shield 15 GND
4 - 16 Hot plug detection
5 - 17 T.M.D.S data 0-
6 DDC clock 18 T.M.D.S data 0+
7 DDC data 19 T.M.D.S data 0/5 shield
8 - 20 -
9 T.M.D.S data 1- 21 -
10 T.M.D.S clock1+ 22 T.M.D.S clock shield
11 T.M.D.S data 1/3 shield 23 T.M.D.S clock+
12 - 24 T.M.D.S clock-
