6
Set up the display
Please pay attention to the following notes during installation:
• This display should be installed by at least two adult persons. Attempting to install this display by only one
person may result in danger and injuries.
• Refer the installation to qualified technicians. Improper installation may cause the display to fall or
malfunction.
• Stability Hazard: The flat panel may fall, causing serious personal injury or death. To prevent injury, this flat
panel must be securely attached to the wall in accordance with the installation instructions.

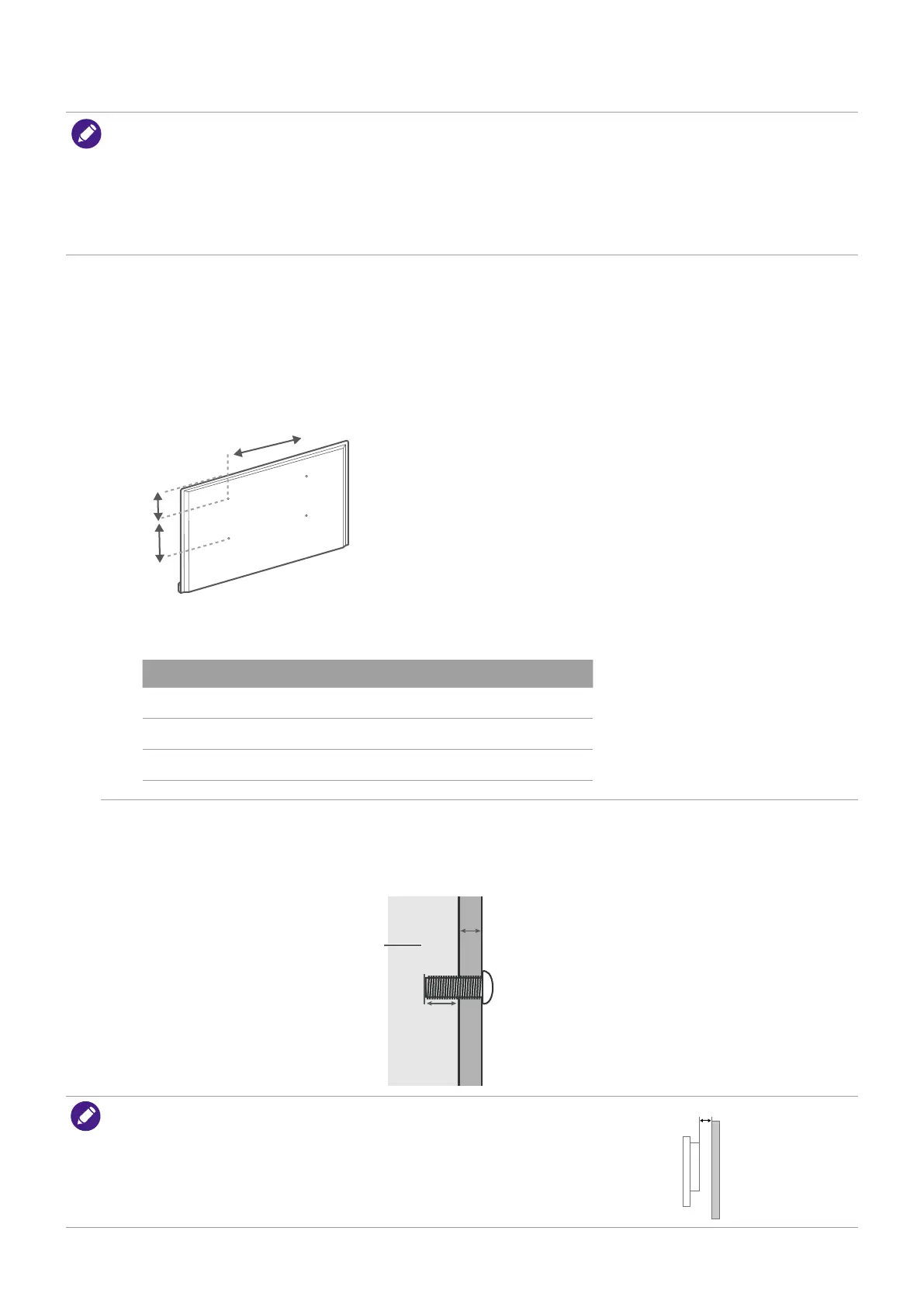

Install the display on a wall
1. Place a clean, dry and lint-free cloth on a flat, horizontal and object-free surface. Make sure
that the size of the cloth is larger than the display.
2. Gently lay the display on the cloth with the LCD screen facing down.
3. Identify the wall mounting screw holes on the back of the display as shown in the
illustration.
A
B
C
- Screw type: M8 x 25L
- Quantity: 4
Dimension 65" 75" 86"
A
600 mm 800 mm 800 mm
B
244.5 mm 313.2 mm 282.2 mm
C
400 mm 400 mm 600 mm
4. Install the wall mounting bracket on the display and attach the display to the wall according
to the mounting bracket’s instructions. The length of the screw should exceed the thickness
of the wall mounting bracket by at least 25 mm. Make sure that all screws are tightened and
secured properly. (Recommended torque: 470 - 635N•cm).
Thickness of the
wall mounting
bracket
25 mm
(0.98")
LCD
display
• To maintain proper ventilation, keep at least 10 mm of clear space from the
back cover of the display to the wall.
• Please consult a professional technician for wall mount installations.
The manufacturer accepts no liability for installations not performed by a
professional technician.
