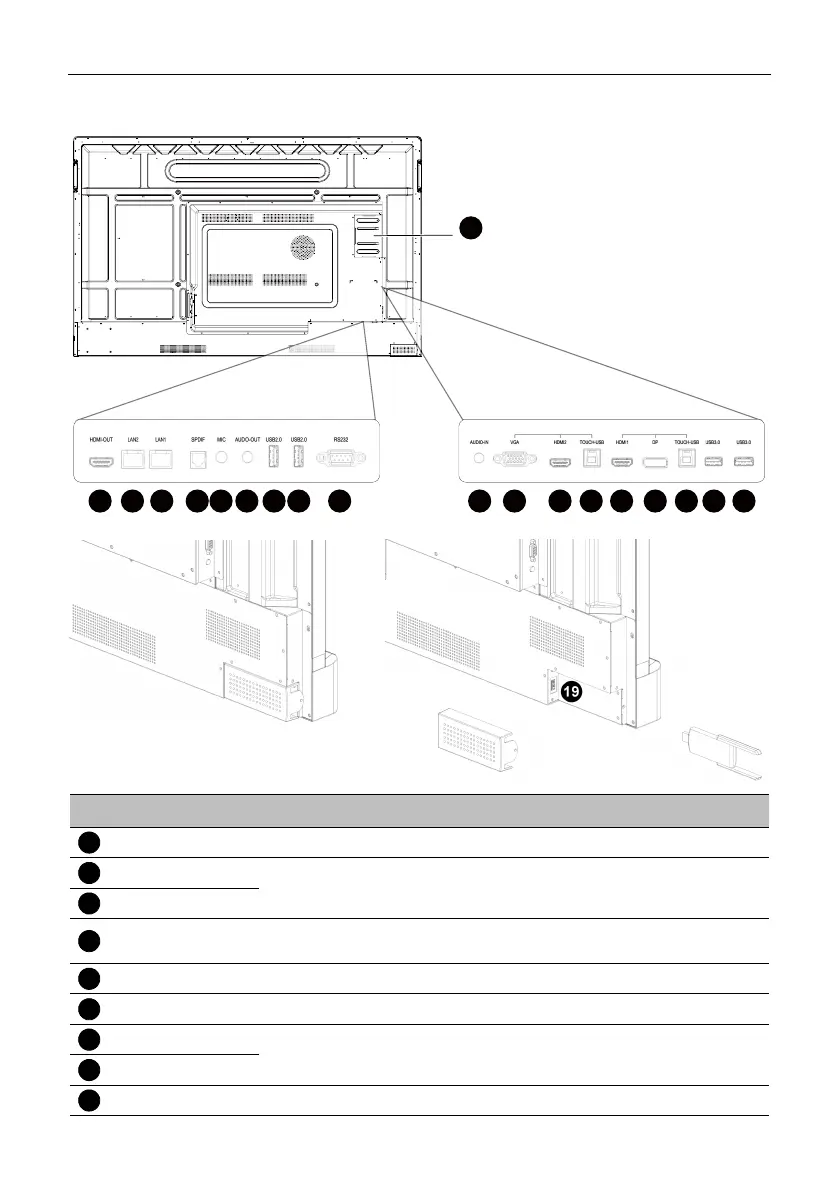

Input/output terminals
No. Name Description
HDMI OUT Connect to display devices with an HDMI input.
LAN2
Supports LAN In and Out, 10/100 Mbps for Android system, 10/
100/1000 Mbps for OPS.
LAN1
SPDIF
Connect the SPDIF cable from external audio devices to the display
for audio out.
MIC Connect to a microphone.
AUDIO OUT Connect to external speakers or earphones.
USB 2.0
Connect USB devices such as keyboards, mice, and USB flash drives.
USB 2.0
RS232 Serial interface, used for mutual transfer of data between devices.
