14 Positioning your projector

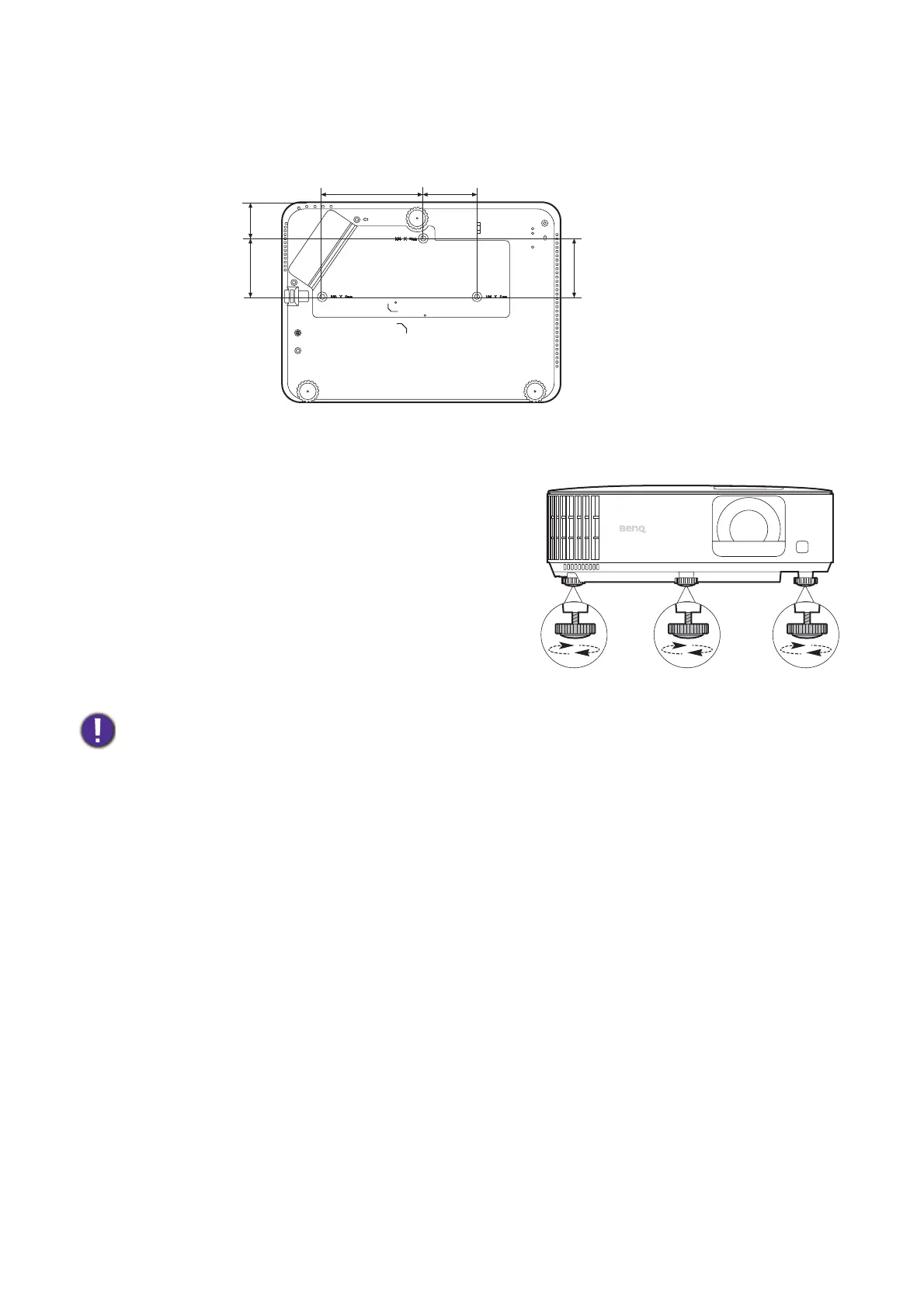

Ceiling/Wall mount installation diagram
Adjusting the projected image
Adjusting the projection angle
If the projector is not placed on a flat surface or the
screen and the projector are not perpendicular to each
other, the projected image becomes trapezoidal. You
can adjust the adjuster feet to fine-tune the horizontal
angle.
To retract the feet, screw the adjuster feet in a reverse
direction.
Do not look into the lens while the light source is on. The strong light from the light source may cause
damage to your eyes.
Ceiling/Wall mount screw hole: M4 x 8 mm
Unit: mm
65.89
65.89
40.27
113.54 60
