BenQ TK700ST - RS232 Command; Rs-232 Pin Assignment

52 Specifications

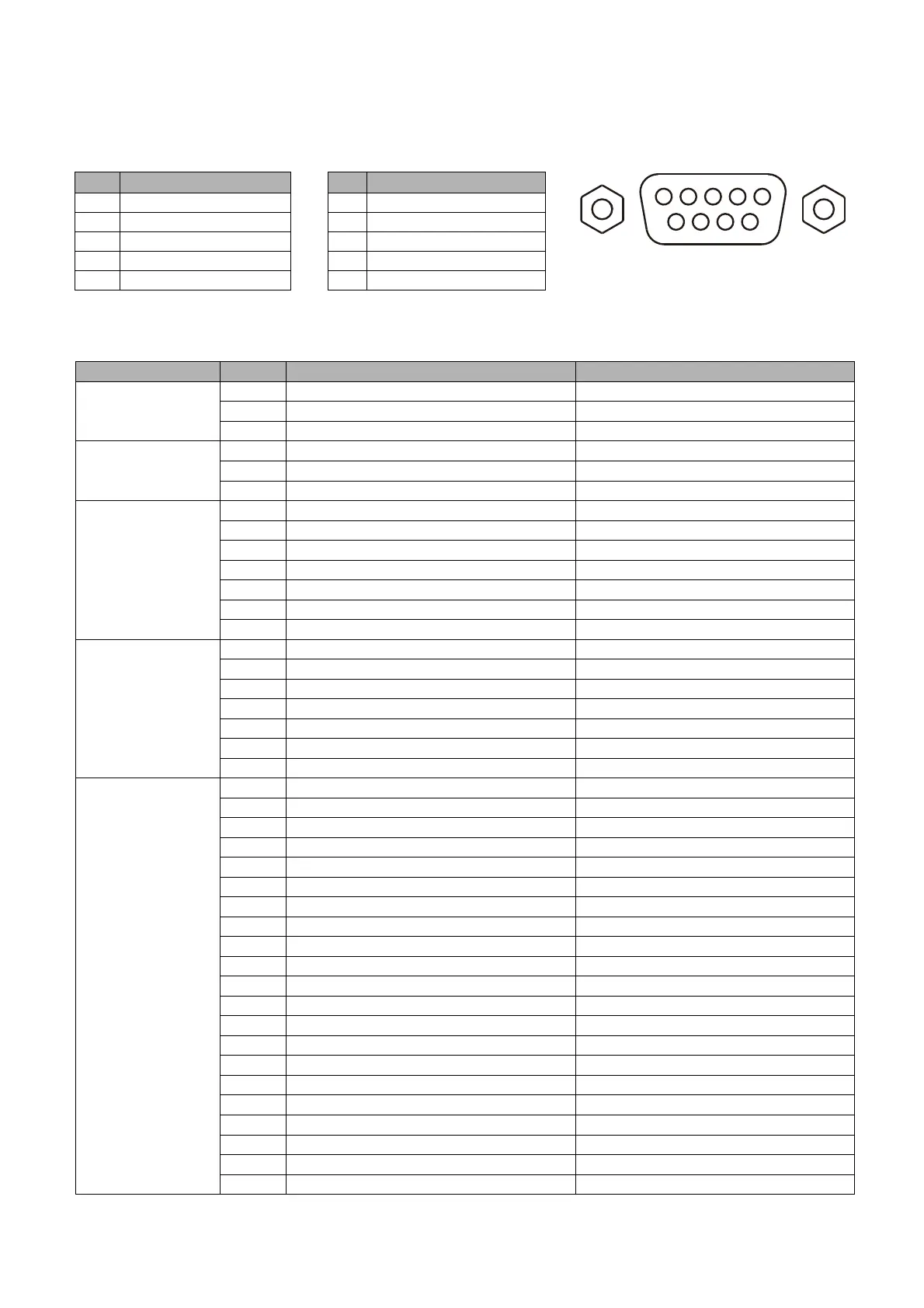

RS232 command
RS232 pin assignment
No. Serial No. Serial
1NC 6NC
2RX 7RTSZ
3TX 8CTSZ
4NC 9NC
5GND
Function Type Operation ASCII
Power
Write Power On <CR>*pow=on#<CR>
Write Power Off <CR>*pow=off#<CR>
Read Power Status <CR>*pow=?#<CR>
Source Selection
Write HDMI(MHL) <CR>*sour=hdmi#<CR>
Write HDMI 2(MHL2) <CR>*sour=hdmi2#<CR>
Read Current source <CR>*sour=?#<CR>
Audio Control
Write Mute On <CR>*mute=on#<CR>
Write Mute Off <CR>*mute=off#<CR>
Read Mute Status <CR>*mute=?#<CR>
Write Volume + <CR>*vol=+#<CR>
Write Volume - <CR>*vol=-#<CR>
Write Volume level for customer <CR>*vol=value#<CR>
Read Volume Status <CR>*vol=?#<CR>
Picture Mode
Write Bright <CR>*appmod=bright#<CR>
Write Living Room <CR>*appmod=livingroom#<CR>
Write Game <CR>*appmod=game#<CR>
Write Cinema(Rec.709) <CR>*appmod=cine#<CR>
Write User1 <CR>*appmod=user1#<CR>
Write Sport <CR>*appmod=sport#<CR>
Read Picture Mode <CR>*appmod=?#<CR>
Picture Setting
Write Set Contrast value <CR>*con=value#<CR>
Read Contrast value <CR>*con=?#<CR>
Write Brightness + <CR>*bri=+#<CR>
Write Brightness - <CR>*bri=-#<CR>
Write Set Brightness value <CR>*bri=value#<CR>
Read Brightness value <CR>*bri=?#<CR>
Write Set Color value <CR>*color=value#<CR>
Read Color value <CR>*color=?#<CR>
Write Set Sharpness value <CR>*sharp=value#<CR>
Read Sharpness value <CR>*sharp=?#<CR>
Write Color Temperature-Warm <CR>*ct=warm#<CR>
Write Color Temperature-Normal <CR>*ct=normal#<CR>
Write Color Temperature-Cool <CR>*ct=cool#<CR>
Write Color Temperature-lamp native <CR>*ct=native#<CR>
Read Color Temperature Status <CR>*ct=?#<CR>
Write Aspect 4:3 <CR>*asp=4:3#<CR>
Write Aspect 16:9 <CR>*asp=16:9#<CR>
Write Aspect Auto <CR>*asp=AUTO#<CR>
Read Aspect Status <CR>*asp=?#<CR>
Write Vertical Keystone + <CR>*vkeystone=+#<CR>
Write Vertical Keystone - <CR>*vkeystone=-#<CR>
