BenQ TK710 - Adjusting the Projected Image

16 Positioning your projector

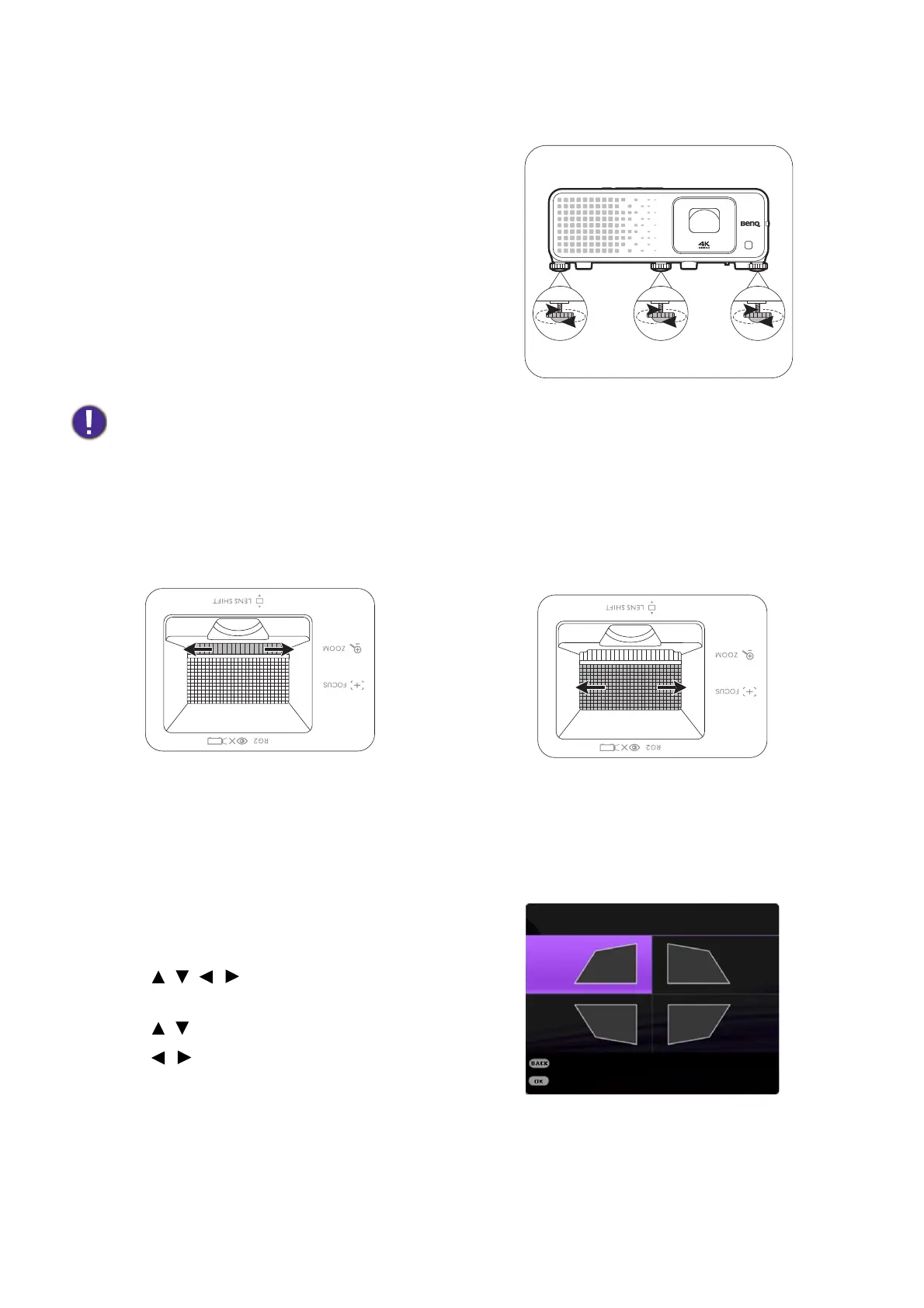

Adjusting the projected image
Adjusting the projection angle
If the projector is not placed on a flat surface or
the screen and the projector are not
perpendicular to each other, the projected
image becomes trapezoidal. You can screw the
adjuster feet to fine-tune the horizontal angle.
To retract the feet, screw the adjuster feet in a
reverse direction.
Fine-tuning the image size and clarity
Adjusting image corners
You can manually adjust four corners of the image by setting the horizontal and vertical values.
Do not look into the lens while the light source is on. The strong light from the light source may cause
damage to your eyes.
• Adjust the projected image to the size that
you need using the zoom ring.
• Sharpen the image by rotating the focus ring.
1. Go to the Basic/Advanced menu -
Installation > 4 Point Adjustment and
press OK to display the correction page.
2. Press / / / to select one corner and
press OK.
3. Press / to adjust vertical values.
4. Press / to adjust horizontal values.
4 Point Adjustment
Press for 2 seconds to reset
Exit
