BenQ TK710 - Projector Exterior View

9 Introduction

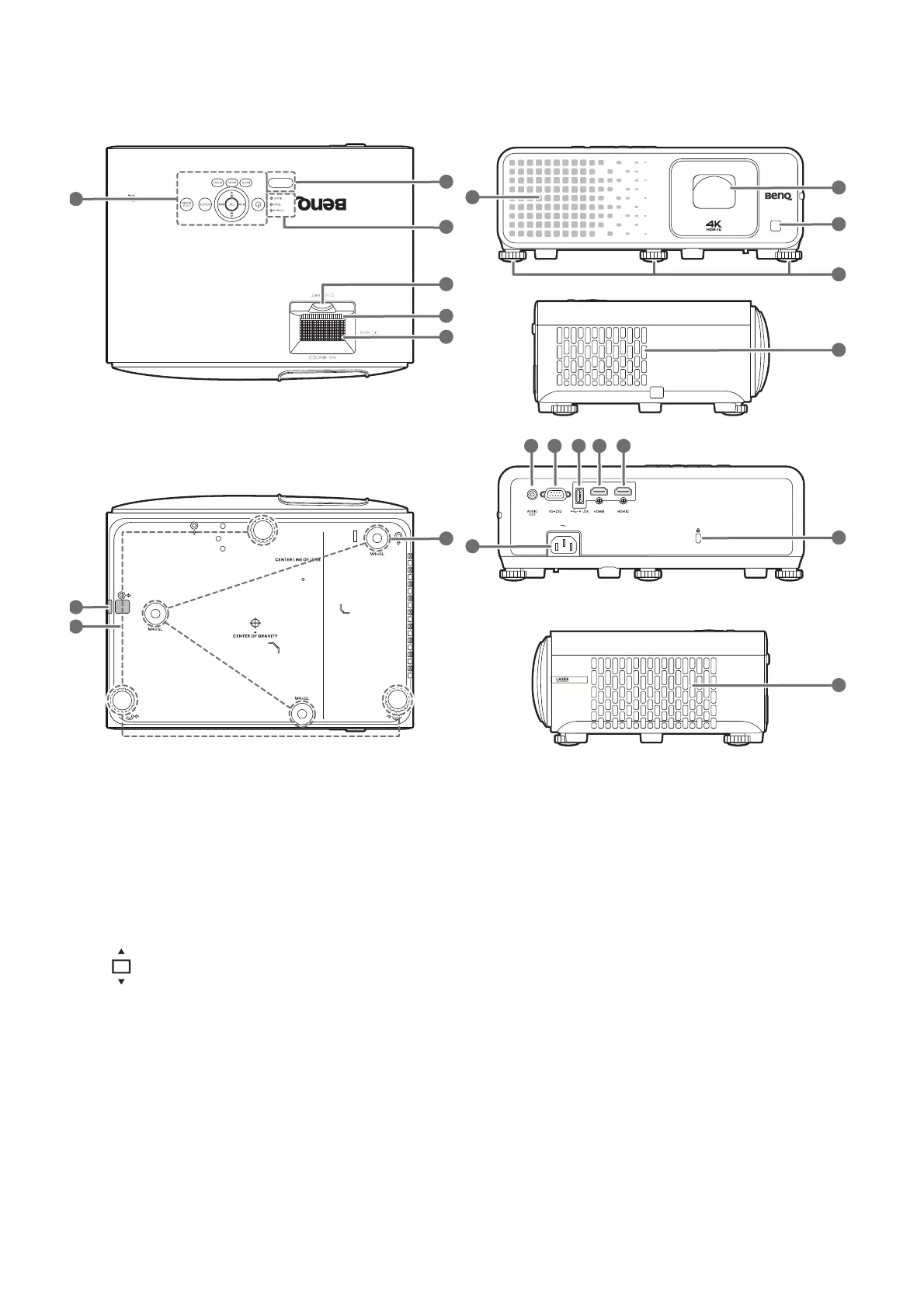

Projector exterior view
1. External control panel
(See Controls and functions on page 10.)
2. IR remote sensor
3. POWER indicator light/TEMPerature
warning light/LIGHT indicator light
(See Indicators on page 44.)
4. Lens shift adjustment control
(Up/Down)
5. Zoom ring
6. Focus ring
7. Security bar
8. Adjuster feet
9. Ceiling/Wall mount holes
10. Vent (air inlet)
11. Projection lens
12. Vent (air exhaust)
13. Audio output jack
14. RS-232 control port
15. USB-A port with power charging
16. HDMI 1 input port
17. HDMI 2 input port
18. AC power jack
19. Kensington anti-theft lock slot
