Introduction 9
English

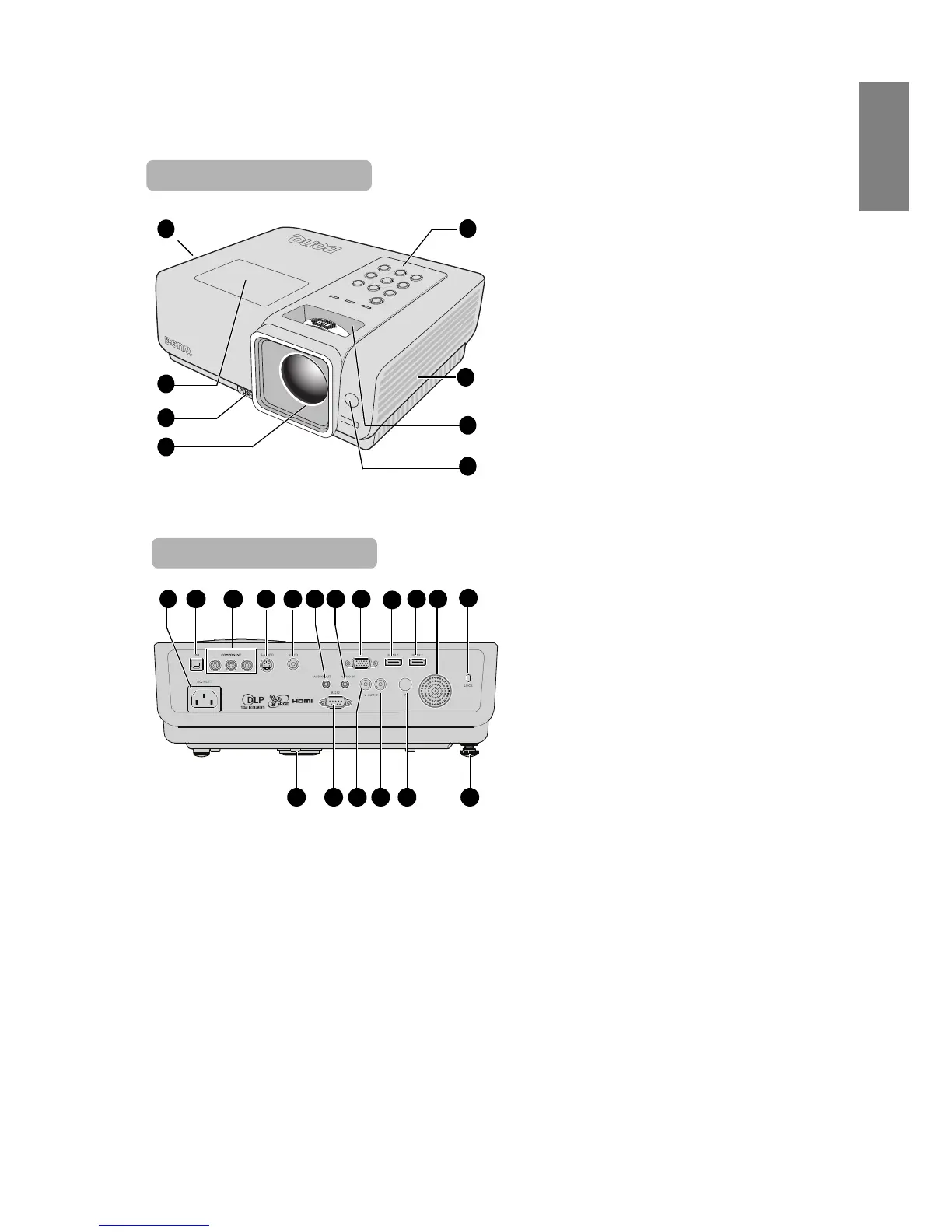

Projector exterior view
1. Vent (heated air exhaust)
2. Lamp cover
3. Quick-release button
4. Projection lens
5. External control panel
(See "Projector" on page 10 for
details.)
6. Vent (cool air intake)
7. Focus ring and Zoom ring
8. Front IR remote sensor
9. AC power cord inlet
10. USB input jack
11. COMPONENT input jacks
12. S-VIDEO input jack
13. VIDEO input jack
14. AUDIO output jack
15. AUDIO input jack
16. PC input jack
17. HDMI 1 input jack
18. HDMI 2 input jack
19. AUDIO speaker
20. Kensington anti-theft lock slot
21. Rear adjuster foot
22. IR receiver
23. AUDIO input jack (right)
24. AUDIO input jack (left)
25. RS-232 control port
26. Quick-release foot
W
10
0
0
Front/upper side
7
1
5
3
4
2
6
8
7
Rear/lower side
1612
10
9
17
18 19
20
22 21
11
13
2324
1514
2526
