Color Wheel Delay Adjustment
1. Switch Timing to ”1280x720 @ 60HZ”

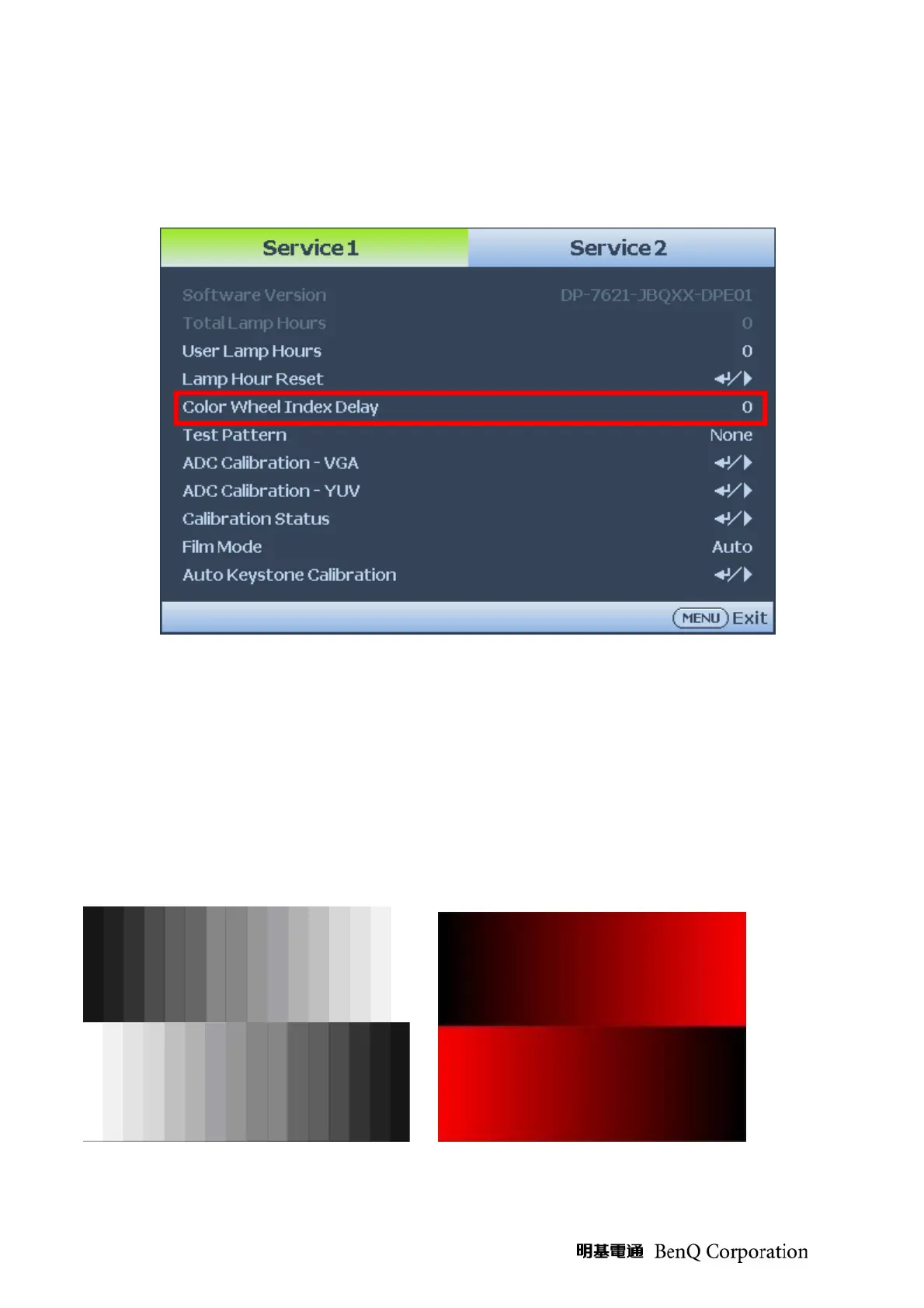

2. In Service mode1.
3. Switch bright mode and Pattern 47 “16 Gray Scale”, and then check gray scales are still
distinct.
4. Select “CW INDEX Delay Time”.
The default value is 138, the adjustment range is 0~719.
5. Switch to pattern 49 “256 Gray Scale”, tune off G, B channel, check the smooth in
brighter level of the R 256 ramp. If not, fine tune “CW INDEX Delay Time” until R 256
ramp smooth.
Brightness and Contrast need to measure with RGB source “1280x720 @ 60HZ”
