3500 Galvanic Isolator Interface Manual
12

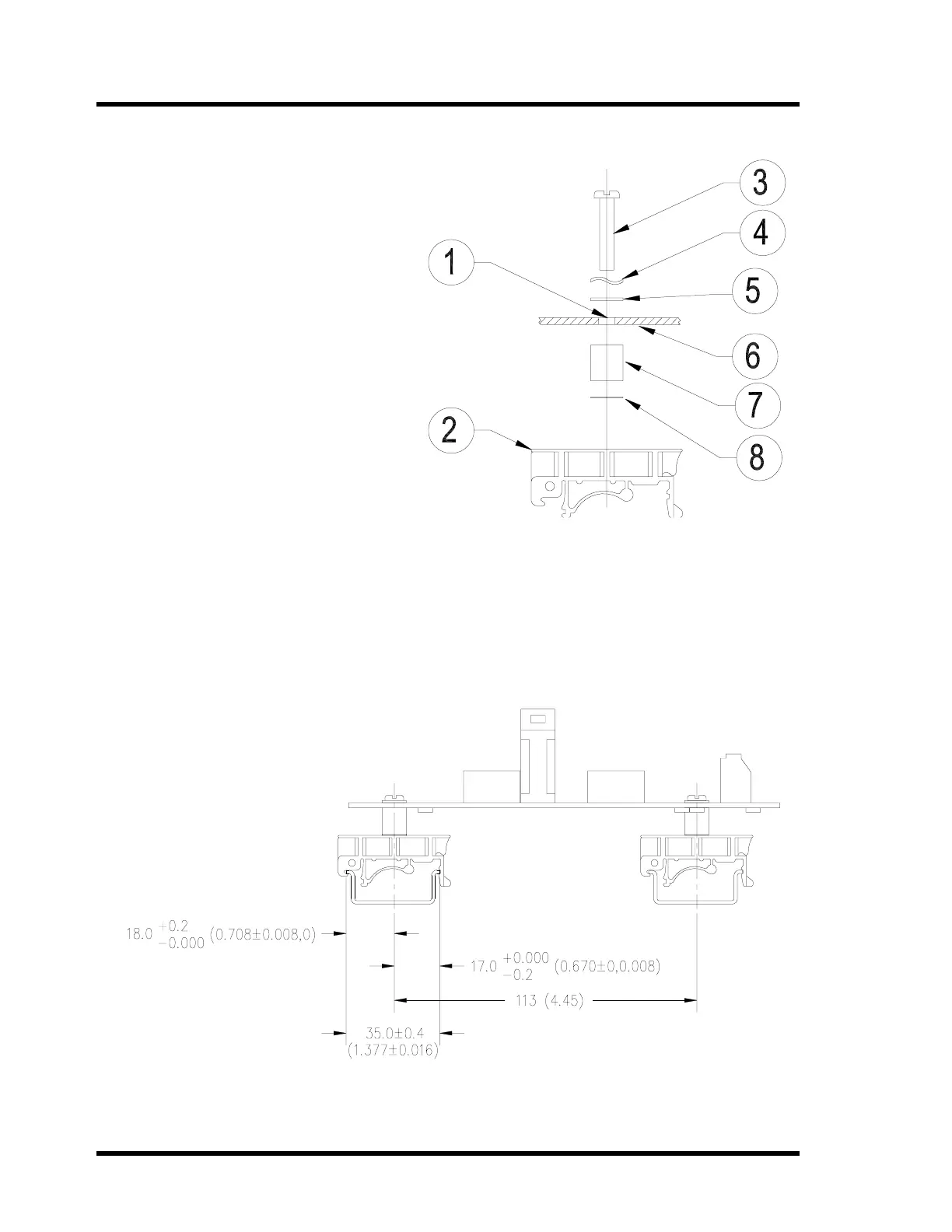

1. Attach the DIN-rail mounting feet onto two lengths of "G" or T-section DIN
rails.
1) Mounting
Hole “A”
2) DIN Rail
Mounting
Foot
3) M4 x 20mm
Screw
4) Locking
Washer
5) Plain
Washer
6) Backplane
7) M4 x 10mm
Spacer
8) M4 Interference Fit Washer
2. Position the screws and washers through the backplane mounting holes
marked "A" as shown.
3. Attach the backplane to the mounting feet with the fixing screws as shown.
Dimensions: Millimetre (inch)
