Bently Nevada 3500 Galvanic Isolator Interface - Cable Pin Outs

Section 4 — Wiring the Hardware
25
3
3
2
4
5
4.5.1 Cable Pin Outs

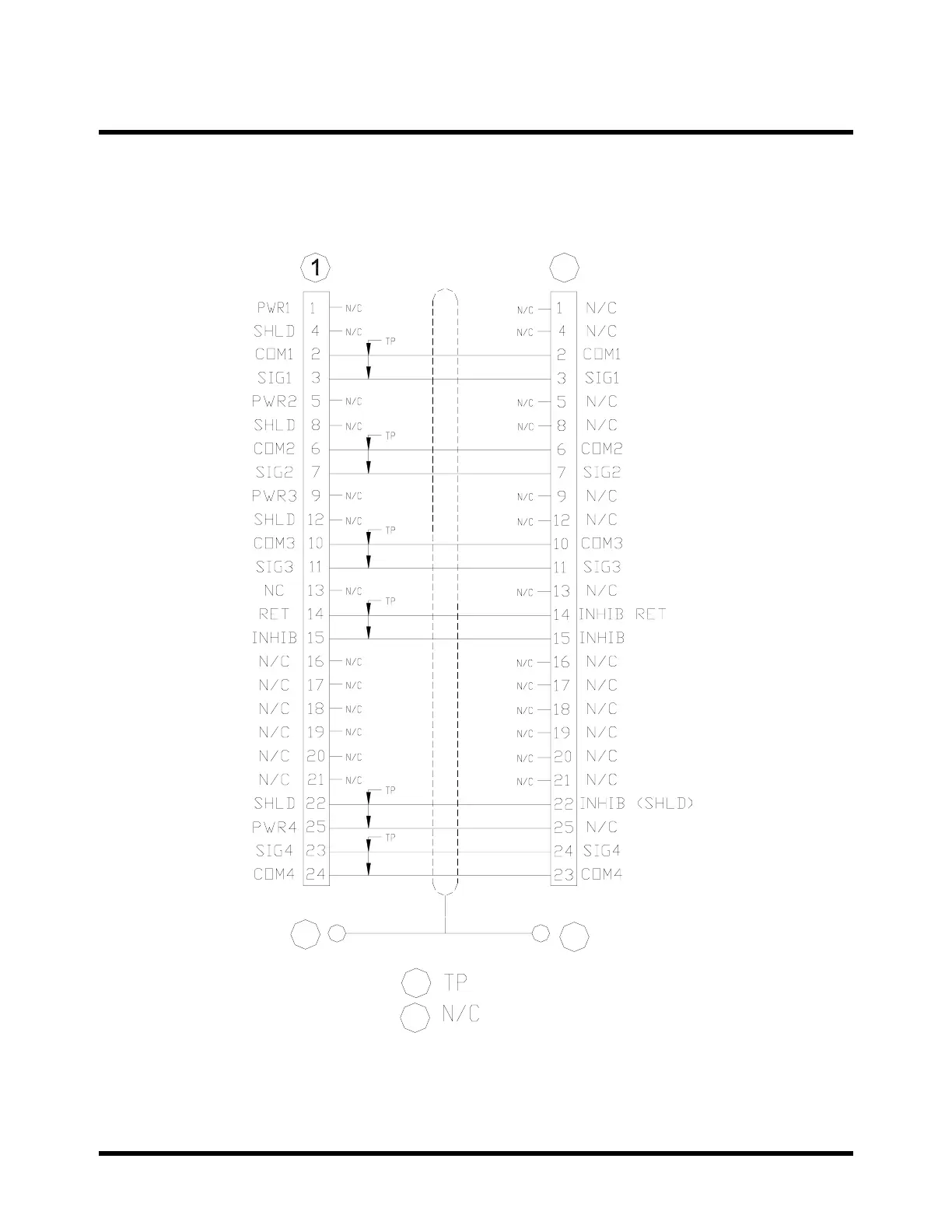

4.5.1.1 Cable Number 141707-AXXXX-BXX, 3500 Galvanic Interface (Vibration)
Cable
1) Connector J1 (3500)
2) Connector J2 (Backplane)
3) Connect Shield to Backshell
4) TP= Twisted Pair
5) N/C= No Connect
