3500 Galvanic Isolator Interface Manual
26
3
5
4
3
2

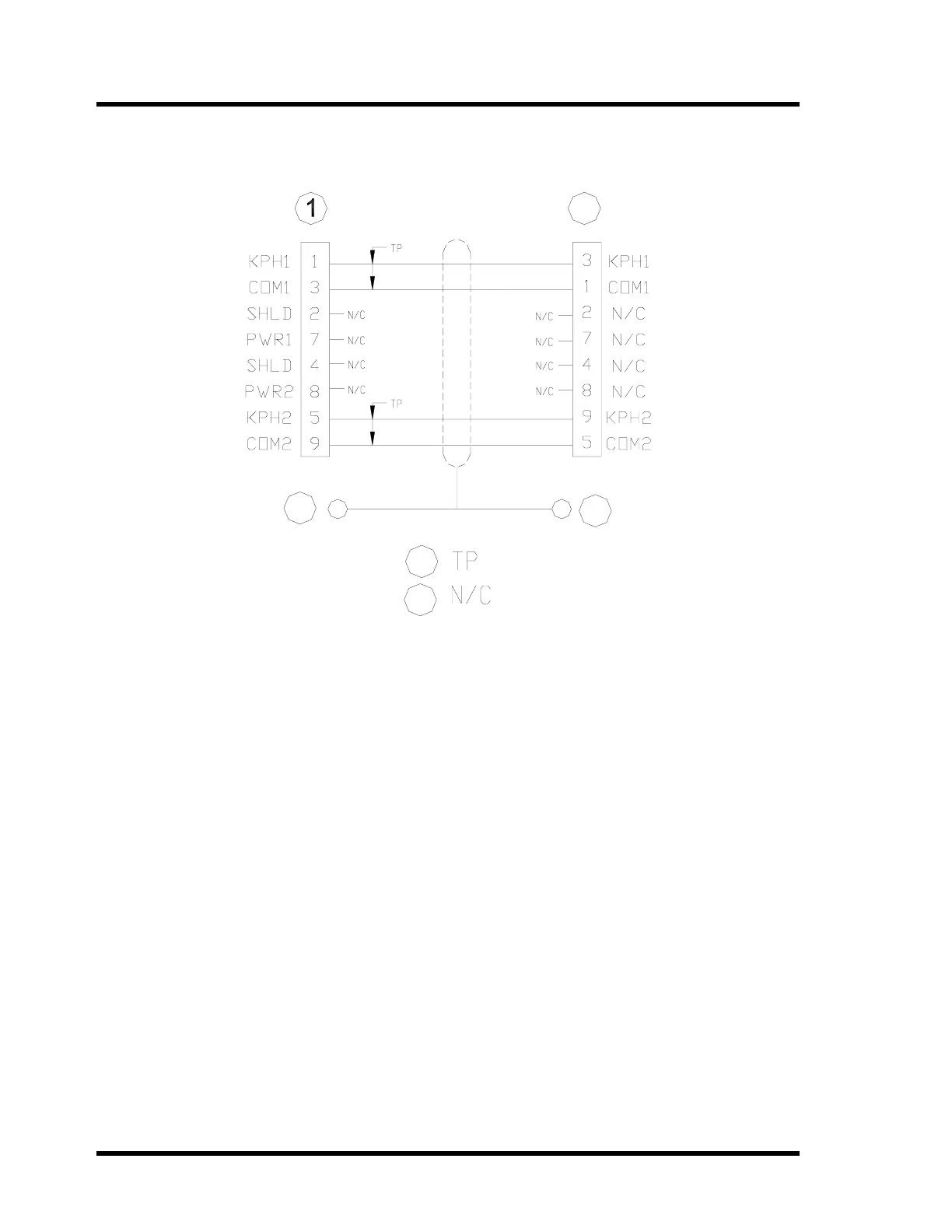

4.5.1.2 Cable Number 141708-AXXXX-BXX, 3500 Galvanic Interface
(Keyphasor) Cable
1) Connector J1 (3500)
2) Connector J2 (Backplane)
3) Connect Shield to Backshell
4) TP= Twisted Pair
5) N/C= No Connect
