Bently Nevada 3500 Galvanic Isolator Interface - Page 31

Section 4 — Wiring the Hardware
27
2
3
5
4
3

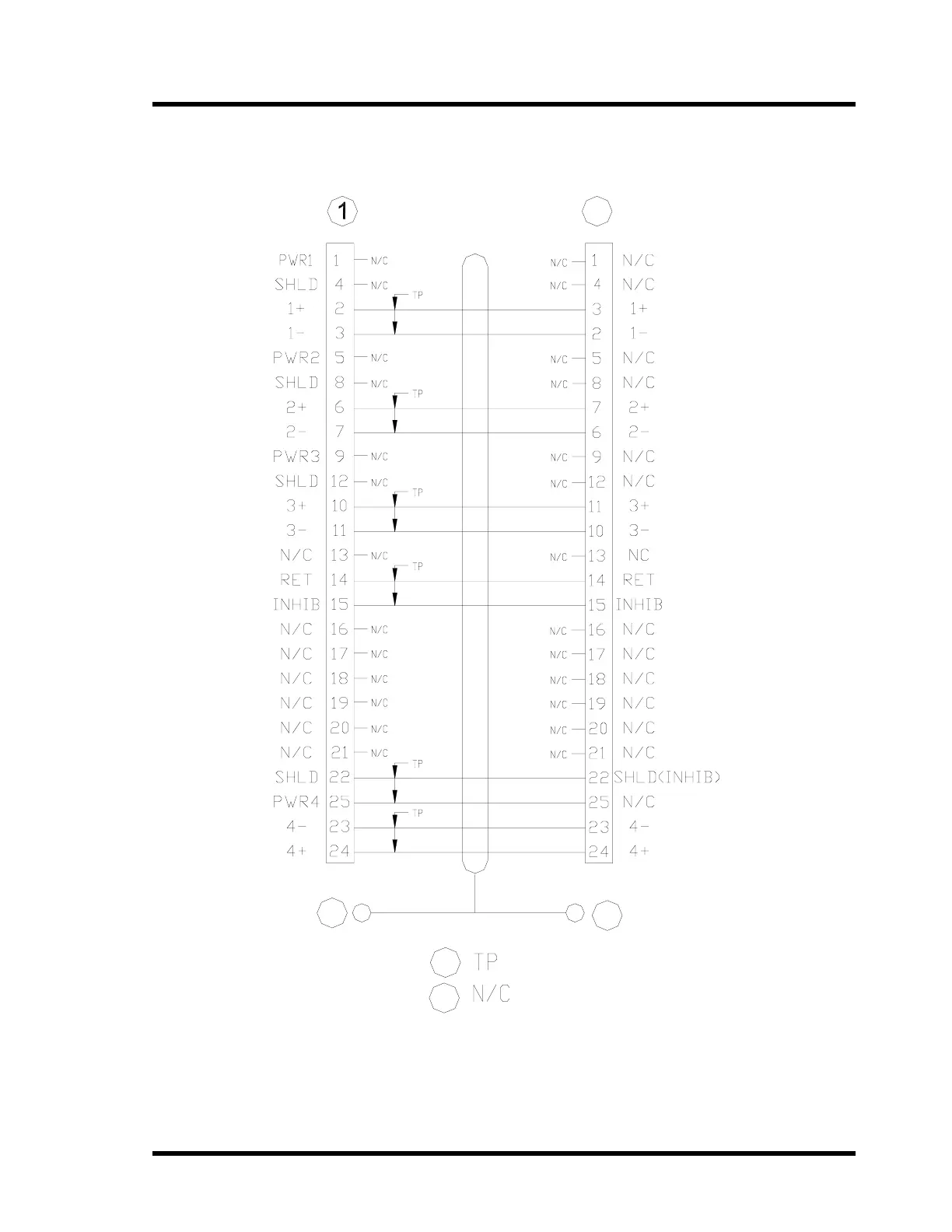

4.5.1.3 Cable Number 141710-AXXXX-BXX, 3500 Galvanic Interface
(Aeroderivative) Cable
1) Connector J1 (3500)
2) Connector J2 (Backplane)
3) Connect Shield to Backshell
4) TP= Twisted Pair
5) N/C= No Connect
