Section 3 — Installing the Hardware
13
3.2.8 Installing the Backplane into an Enclosure

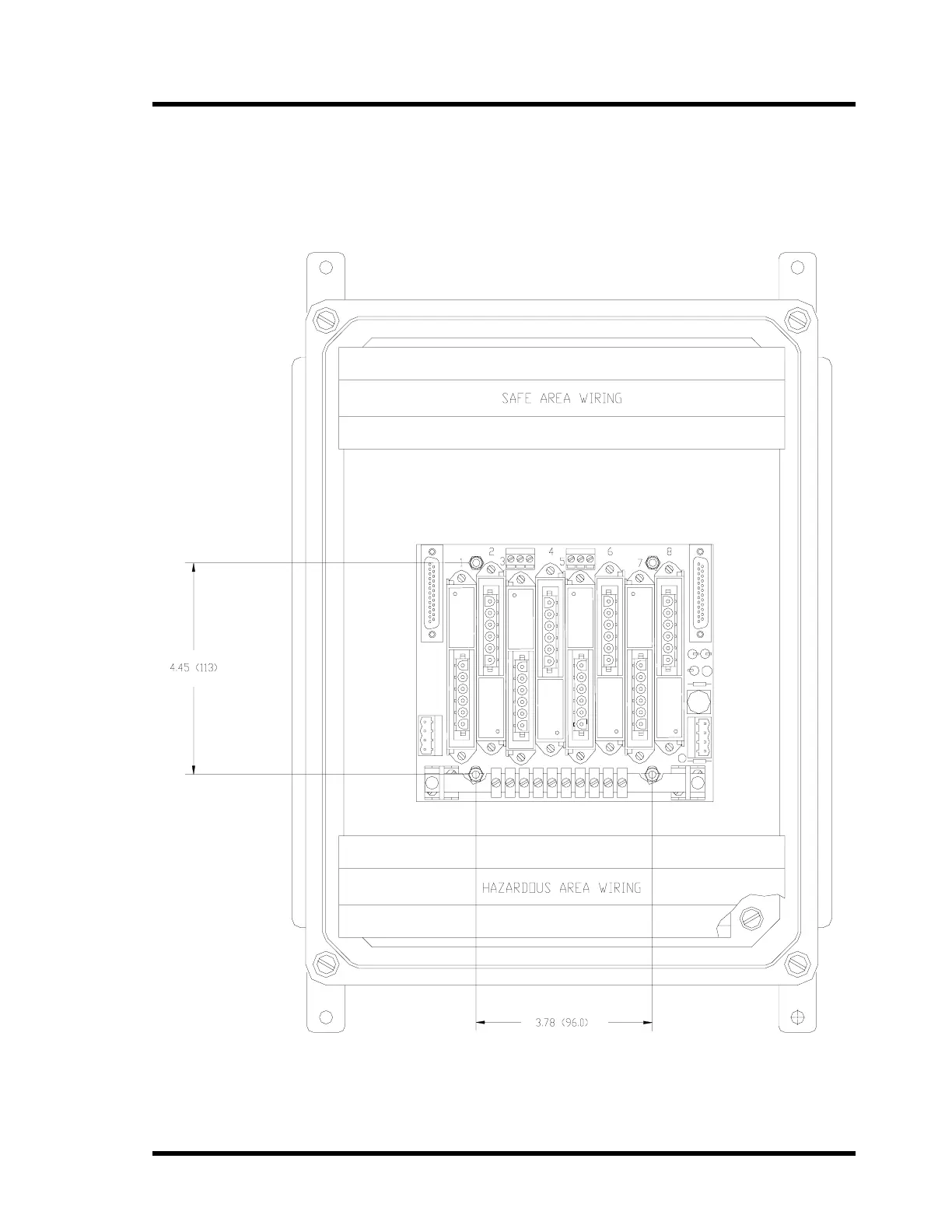

The Bently Nevada enclosure includes a mounting plate with tapped holes that
correspond to the "A" holes of the backplane. Position and install the backplane
as shown using the surface mount portion of the mounting kit.
Dimensions: Inch (millimetre)
