3500 Galvanic Isolator Interface Manual

3.2.8.1 Installing the Enclosures to a Surface

Install the enclosure to a surface use the following procedure:

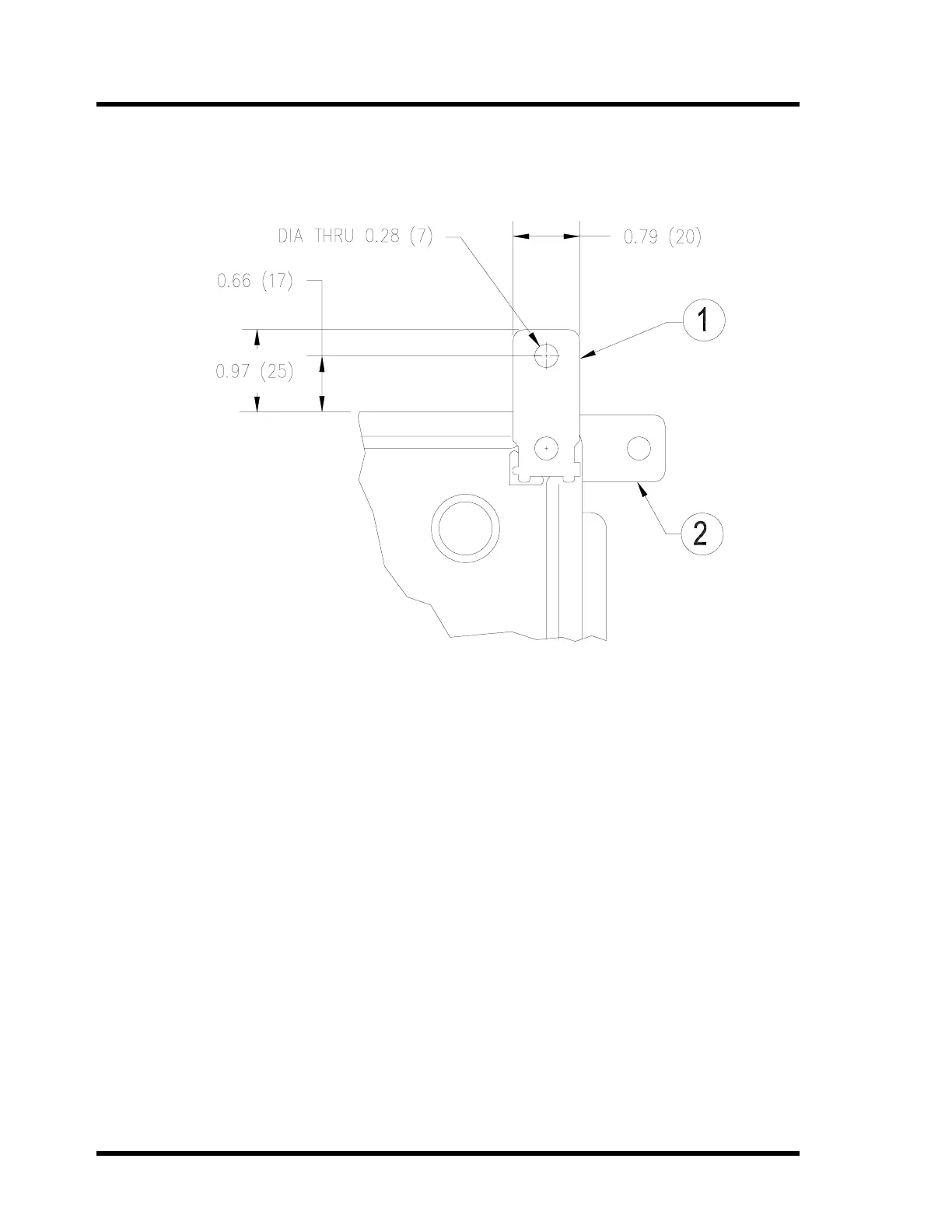

1. Attach wall-mounting lugs to the underside of the enclosure as shown.

Dimensions: Inch (millimetre)

1) Wall Mounting Lug

2) Alternate Position

2. Secure with a fixing screw. Slide the screw into the TOP of the enclosure

and screw it into the mounting lug. This requires a long screwdriver.

3. Mount the enclosure on a surface at the appropriate centers. Refer to the

data sheet at the end of this manual.
