20
Bentone
165 105 23
Note:
* When servicing/replacing components that affect combustion, an
analysis and soot test shall be carried out on the installation.
6. Burner servicing
6.1 Servicing the combustion assembly
Removal and installation
1. Switch off the main power.

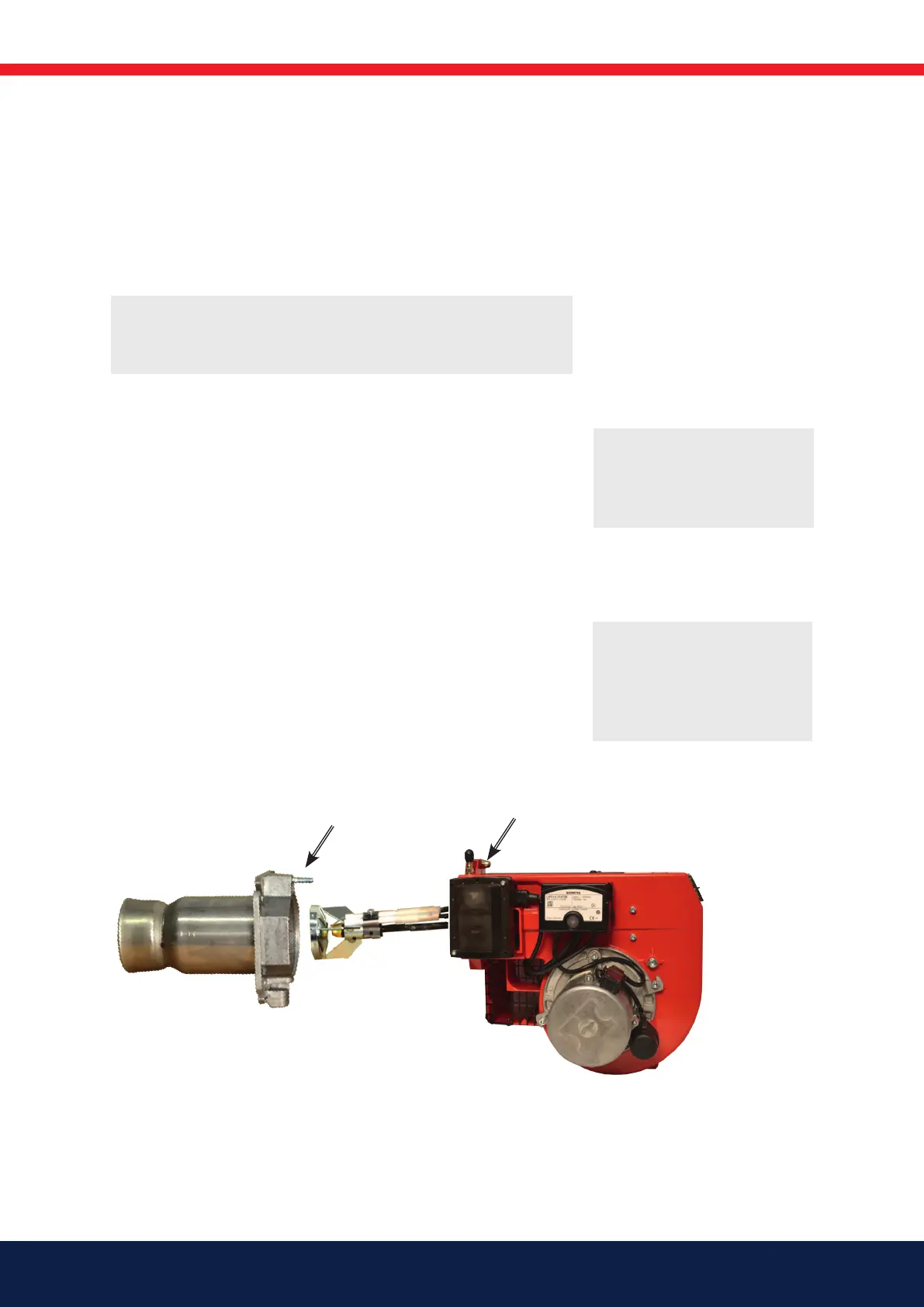

2. Loosen the nut (G) and remove the burner body from the burner flange.
3. Remove the brake plate from the oil pipe and clean the brake plate.
4. Unscrew the nozzle/nozzles.
5. Install new nozzle/nozzles.
6. Install the brake plate. (see technical data)
7. Check the ignition electrodes. (see technical data)
8. If necessary, replace the ignition electrodes.
9. Fit the burner body and the burner flange together and secure with the
nut (G).
10. Open the boiler/spectacle flange to access the burner pipe.
11. Remove and clean the burner pipe. Turn anticlockwise.
12. Install the burner pipe, make sure you install the drainage hole (not on
all burner pipes) facing downwards so that any spilled oil can drain out.
13. Close the boiler / spectacle flange.
14. Turn on the main power.
15. Check combustion*.
!
If the burner is directly connected, ensure that all
components on the burner are without power.
!
Use caution when
operating the bur-
ner, surfaces may
be hot.
!
NB: When soiled,
always replace
nozzles with new
nozzles. Do not
clean.
G
G
