9 Bentone
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure 10 bar (8-25 bar)
Combustion
device
d
1
d
2
d
3
B 30 ø 110 M10 ø 160-200
Because of the various boiler types with varying furnace geometries and
furnace loads, it is impossible to commit to a certain scattering angle or a
specific distribution pattern.
It should be noted that the scattering angle and distribution pattern changes
with pump pressure.
d
1
d
2
d
3
!
*NB It is important that
the spark does not strike
against the brake plate or
nozzle
a b c d
B30 2.5-3.5 7,0-9,0 1.0-2.0 5.0-6.0
a
b
c
d

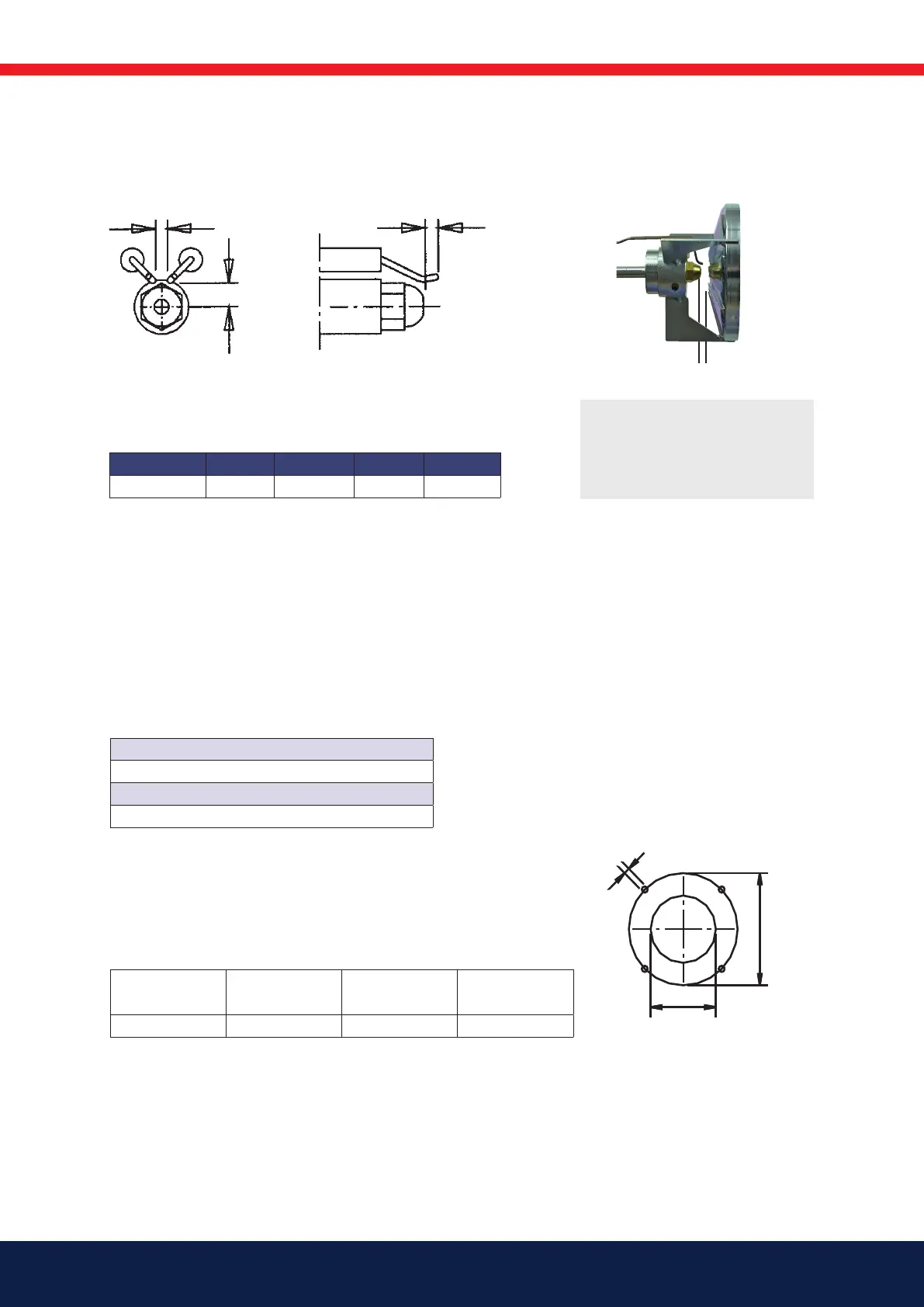

2.4 Setting of brake plate and air flow
2.5 Recommended nozzle and
pressure
2.6 Burner installation
2.6.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner flange.
