CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)
7.TRANSFORMERS
7.1CHROMOPHARE® D 650
CHROMOPHARE® D 650plus, D 530plus, D 500plus
Mounting separate from the ceiling tube, distance of transformer to ceiling tube over 20 m

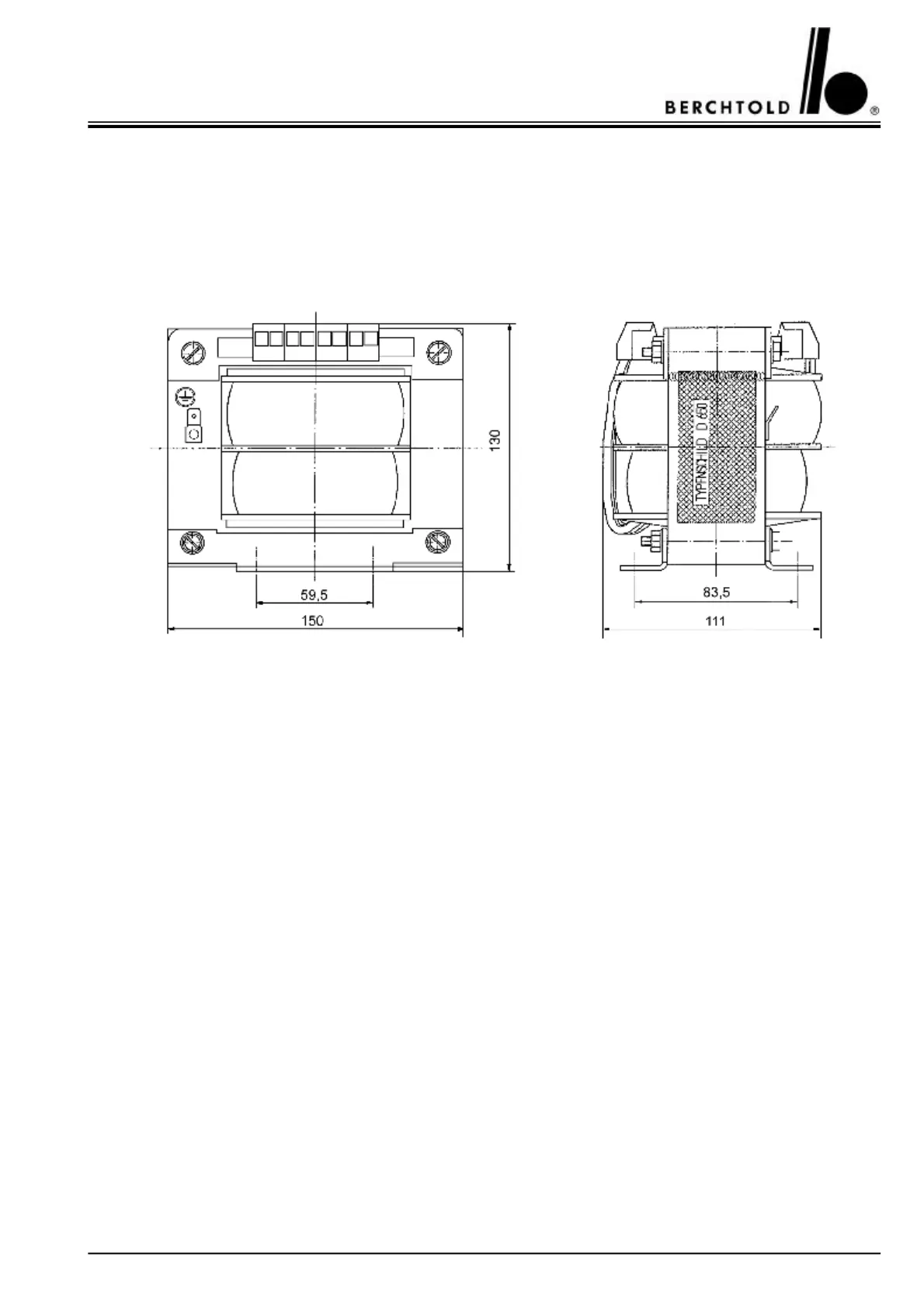

CB 502-40Transformer mounted on flange tube 220/230/240V / 400 VA
CB 505-40Transformer mounted separately 220/230/240V / 400 VA
CB 502-42Transformer mounted on flange tube 100/120/127 V / 400 VA
CB 505-42Transformer mounted separately 100/120/127 V / 400 VA
How to proceed the transformer adjustment (with topped filtering board):
1. Measuring of the terminal voltage on the ceiling terminal.
2. The terminal voltage of the emergency supply is similar to the reference value (D.C.). The reference value (D.C.)
is measured on the ceiling tube’s terminal connection situated behind the filtering board. The secondary tap on the
transformer should be chosen in that way that the above measured reference value (D.C.) is reached. This proce-
dure is valid for separately mounted transformers with filtering board as well as on ceiling tube mounted trans-
formers with filtering board.
The following taps can be chosen:
