CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)
9.3.10 CHROMOPHARE® D 530plus/530plus, D 530/530 (flat cardanic)

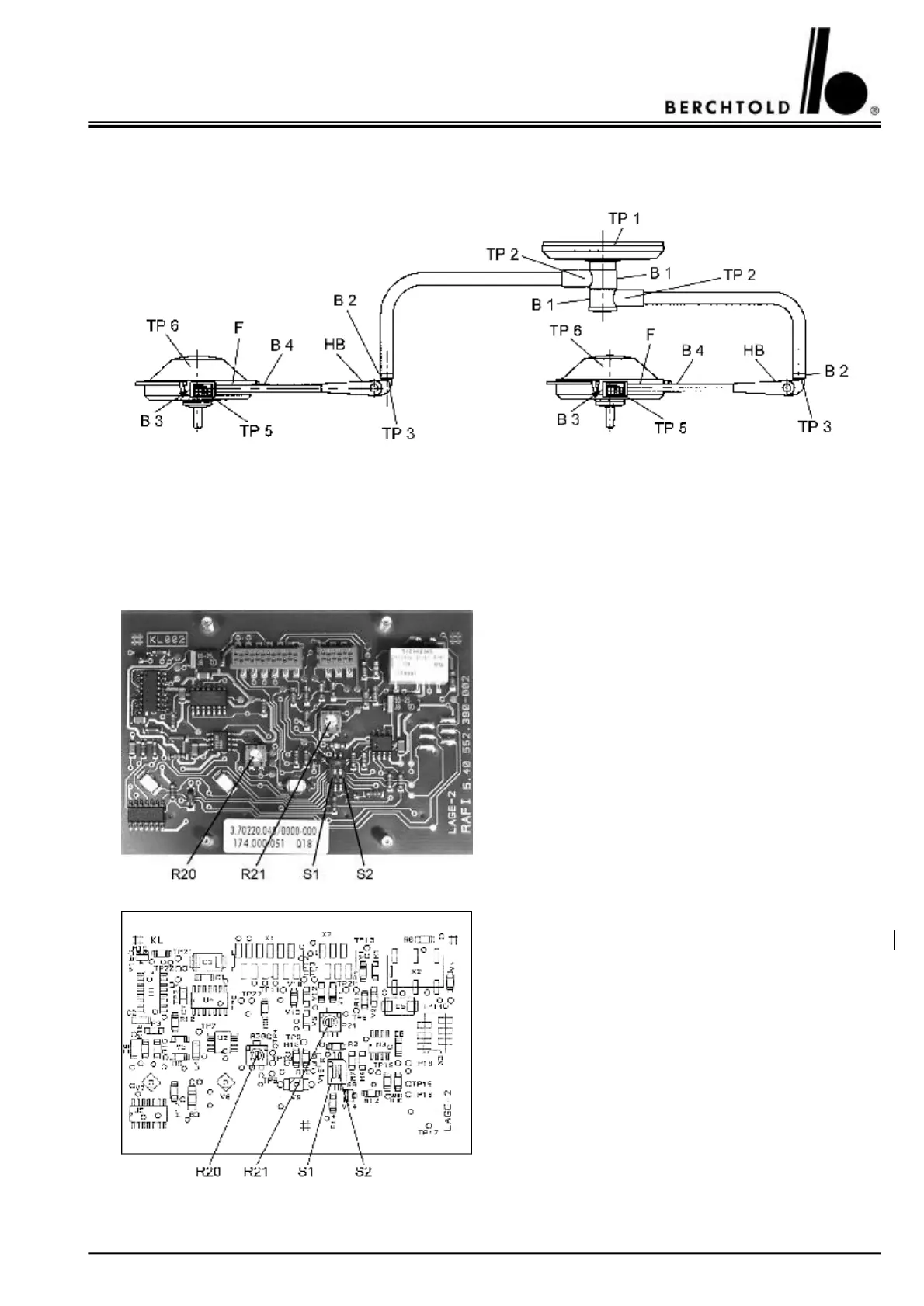

BBrake screwFSpring adjustment, see page 65 - 66
TPTest points, see page 59HBHeight movement, see page 66
9.4Adjustment points for halogen bulb and EndoLite® bulb voltage
(only D 650plus, D 530plus, D 650, D 530)
Back side of touch control boardPart no. 68823
Part no. 68824
Part no. 68825
Part no. 68826
S1Switch for Booster-switching. Switch of „on“
for setting the function.
(only D 650plus, D 650).
S2Switch has no function
R20Adjustable resistor for setting the max. halogen
bulb voltage
D 650:
22,0 V A.C. und D.C. RMS tolerance +0.3 Volt
D 650plus, D 530plus, D 530:
22,8 V A.C. und D.C. RMS tolerance +0.3 Volt
R21Adjustable resistor for setting the EndoLite®
bulb voltage
max. 11.0 V A.C. und D.C. RMS, -1 Volt
tolerance
