CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)
8.GRAPHIC SPARE PART DESCRIPTION
8.1 CHROMOPHARE® generation D complete

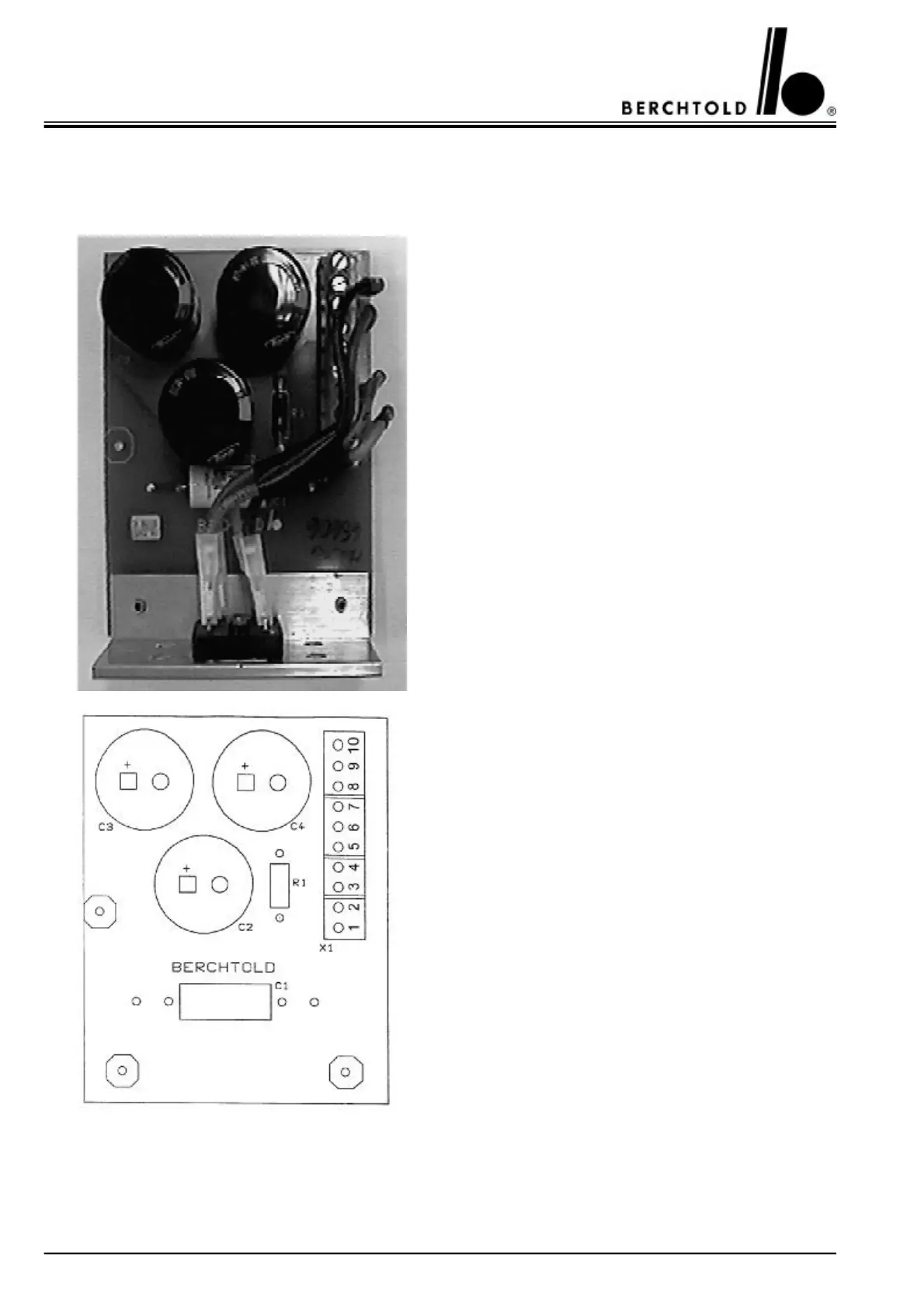

Filtering board, part no. 65606
Note!
Due to the EMV conditions, the filtering board has gen-
erally to be connected and installed as near as possible to
the transformer.
Please consider that the installed filtering board should be
able to eliminate heat through a large surface.
1AC K9, to emergency relays
2AC V1
3AC Transformer input
4AC V1
5AC Transformer input
6AC K9, to emergency relays
7+ V1
8+ out, to light 24 – 27 V D.C.
9– V1
10– out, to light 24 – 27 V D.C.
The wiring diagram please see page 72 - 95
