CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)

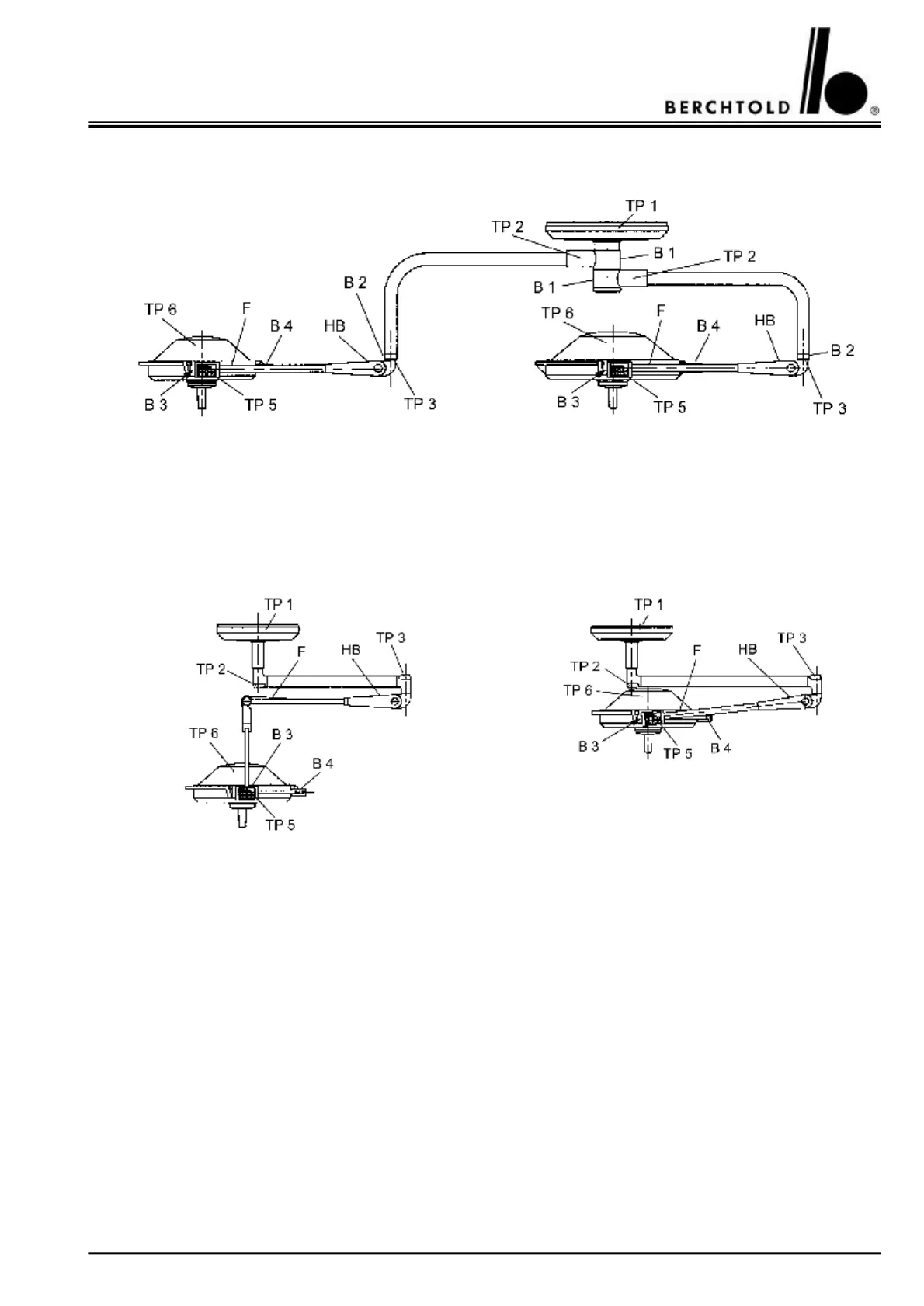

9.3.4 CHROMOPHARE® D 650plus/530plus, D 650/530 (flat Kardanik)
BBrake screwFSpring adjustment, see page 65 - 66
TPTest points, see page 59HBHeight movement, see page 66
9.3.5CHROMOPHARE® D 530plus, D 530
(classic cardanic)
9.3.6CHROMOPHARE® D 530plus, D 530
(flat cardanic)
BBrake screwFSpring adjustment, see page 65 - 66
TPTest points, see page 59HBHeight movement, see page 66
