CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)
10.3 CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 (flat cardanic)

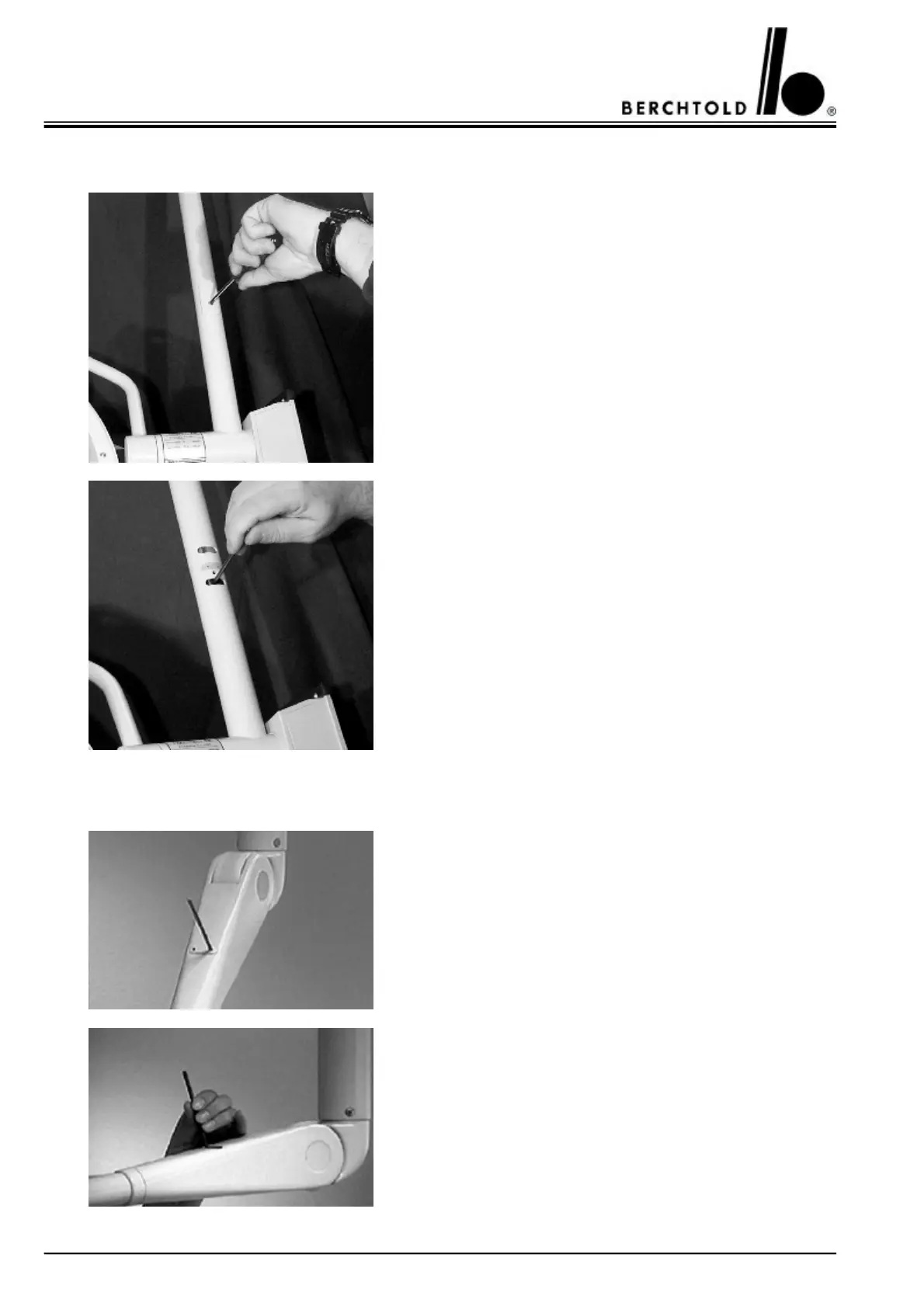

Remove the cover plate by using a Phillips screwdriver.
Adjustment:
Light head drifts upward:
Move the acrobat arm upward or downward as far as the circu-
lar nut becomes visible in one of the two windows. Turn this
circular nut with a steel pin, diameter 4 mm, in the direction of
the minus symbol.
Light head moves downward:
Turn the circular nut in the direction of the plus symbol.
11.ADJUSTMENT OF HEIGHT MOVEMENT ON THE SPRING ARM
The spring arm can be adjusted to a horizontal position on a low
ceiling.
Remove the cap.
Adjust the arm until the round nut in the groove becomes visi-
ble. Turn to the desired adjustment with a 4 mm dia. steel pin.
