Berchtold CHROMOPHARE D 650plus - 14.11-14.14 CHROMOPHARE D 650 plus;650 plus, D 650;650 Wiring Diagrams

82
CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)

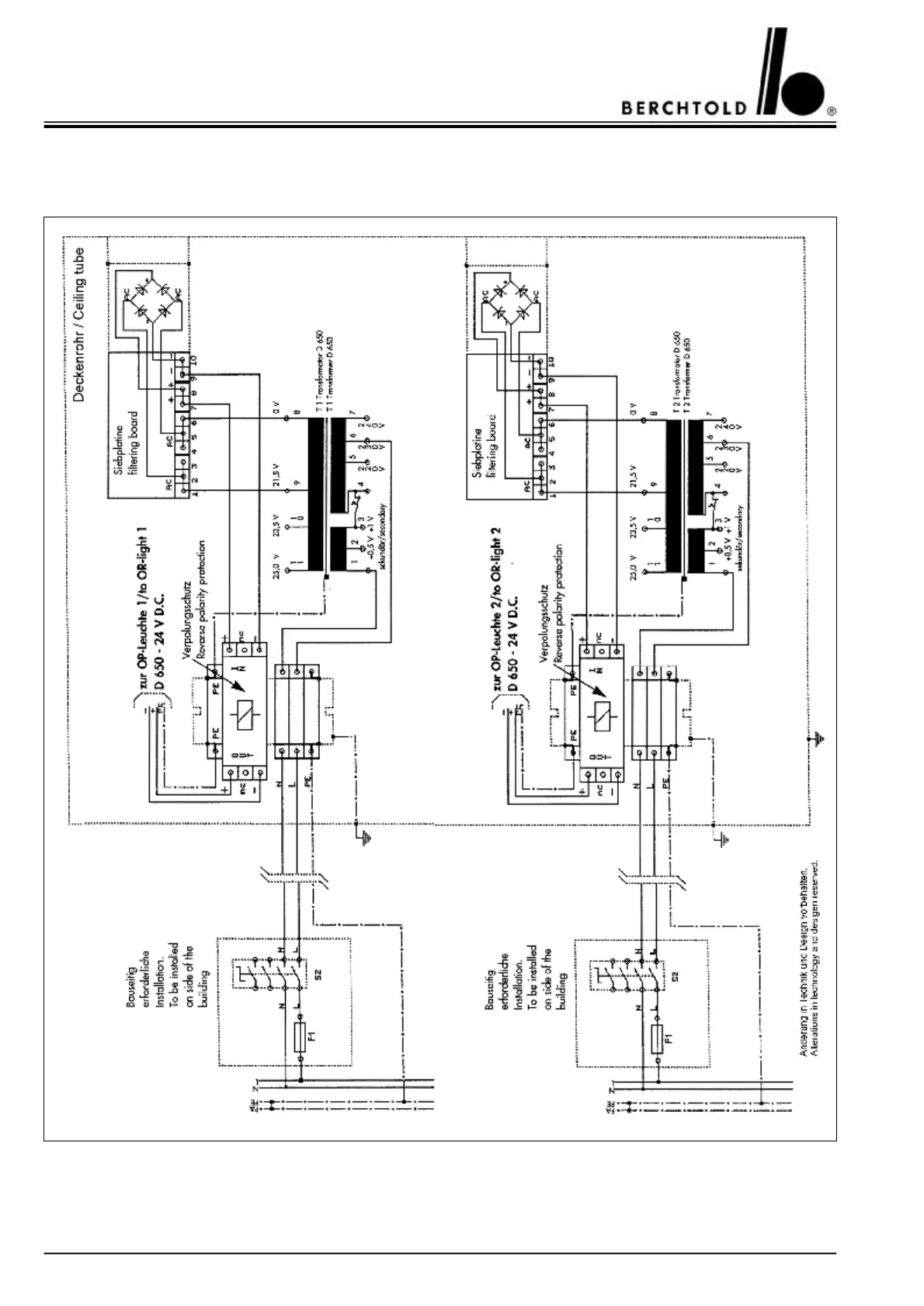

14.11CHROMOPHARE® D 650plus/650plus, D 650/650
Transformers mounted on the ceiling tube
