Berchtold CHROMOPHARE D 650plus - 14.15-14.19 CHROMOPHARE D 650 plus;530 plus;500 plus, D 650;530;500 Wiring Diagrams

86
CHROMOPHARE® D 650plus, D 530plus, D 500plus, D 650, D 530, D 500 Service Manual (E)

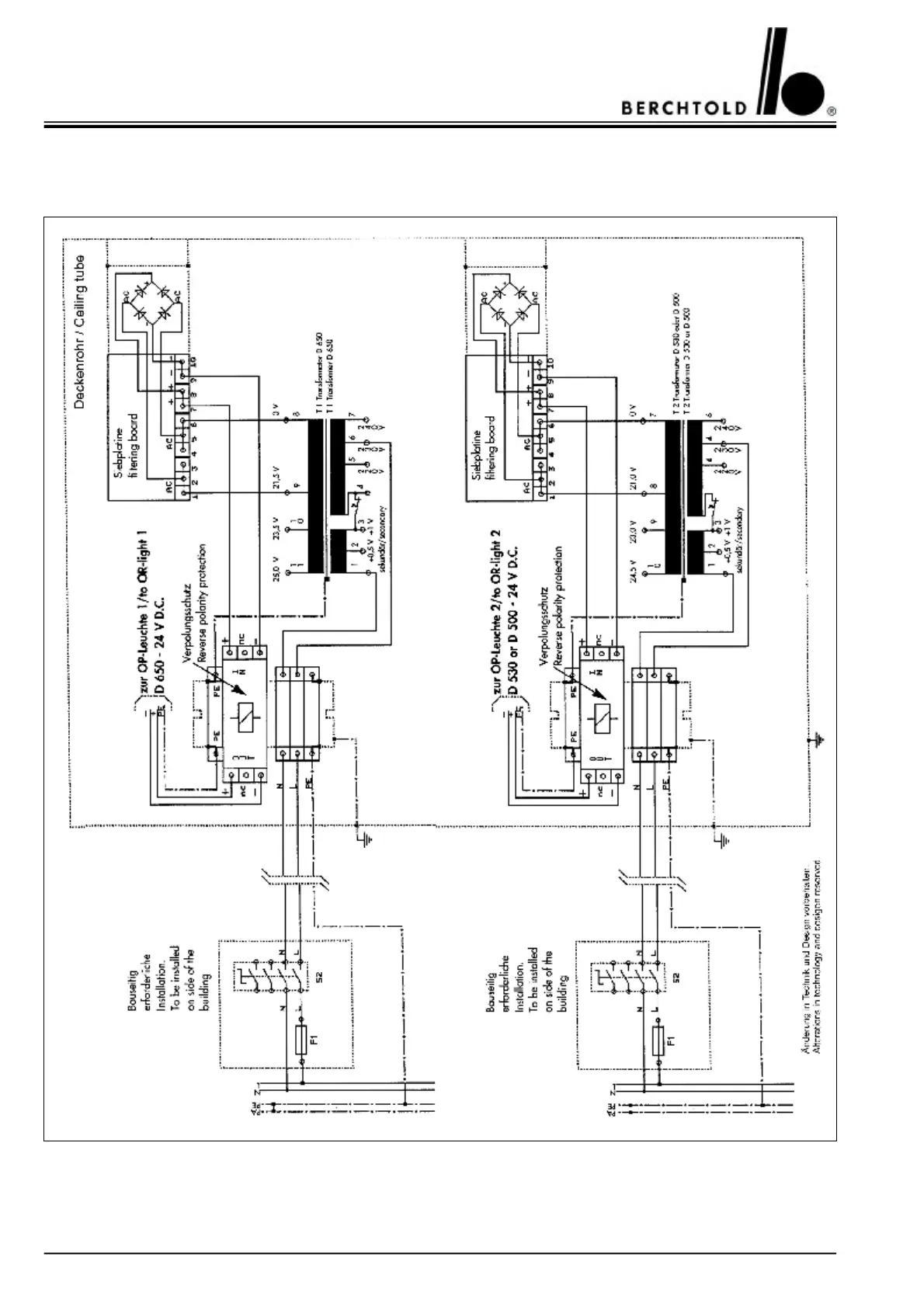

14.15CHROMOPHARE® D 650plus/530plus, D 650plus/500plus, D 650/530, D 650/500
Transformers mounted on the ceiling tube
