Transport
Operating manual, Dumper – 3012 PLUS
127 - 131
28 April 2015
Bergmann Maschinenbau GmbH & Co. KG
If the vehicle needs to be lifted by crane after an
accident, you can attach the lifting tackle to the
marked sling points at the front and rear frame.

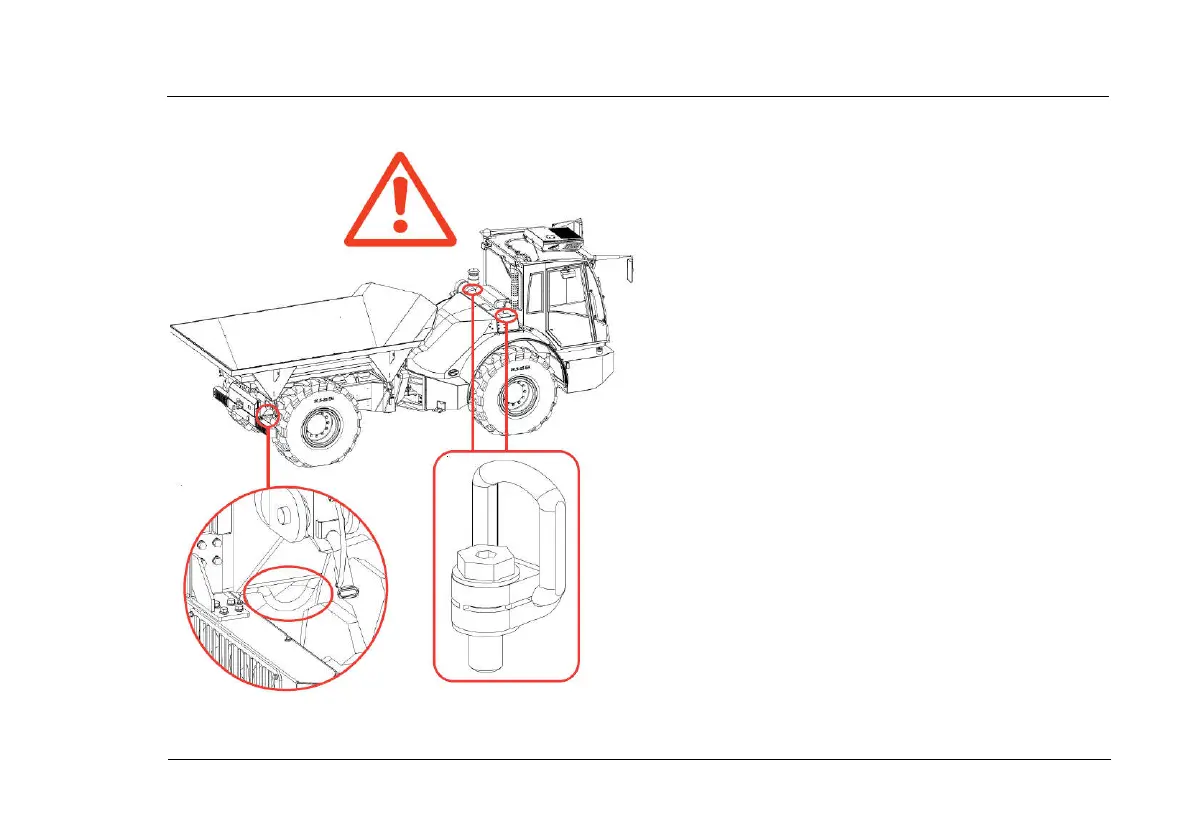

To lift the dumper, attach the cables to the sling
points marked on the front frame (below cover in
bonnet frame) and the rear frame (eyes) as
shown in the figure to the left.
Always use a 4-leg string chain (cable) with a
traverse.
The cables must be arranged in such a way that
the vehicle frame and the cabin components
cannot become damaged.
