Safety

Operating manual, Dumper – 3012 PLUS

53 - 131

28 April 2015

Bergmann Maschinenbau GmbH & Co. KG

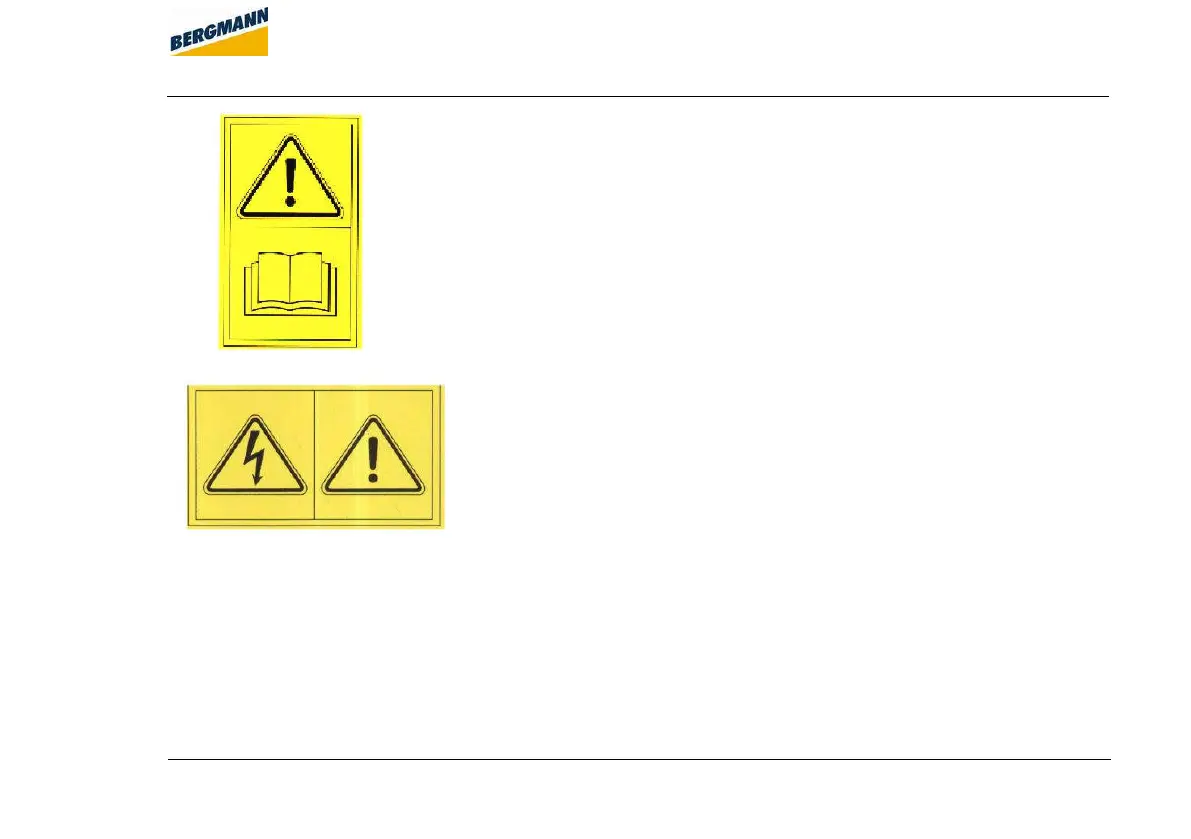

Fig. 5-15

"Caution! Refer to operating manual" / 2 labels

Item no. 50-005-0002-900

Fig. 5-16

"Caution! Electrical hazard" / 1 label

Item no. 50-005-0005-900
