Description
Operating manual, Dumper – 3012 PLUS
79 - 131
28 April 2015
Bergmann Maschinenbau GmbH & Co. KG

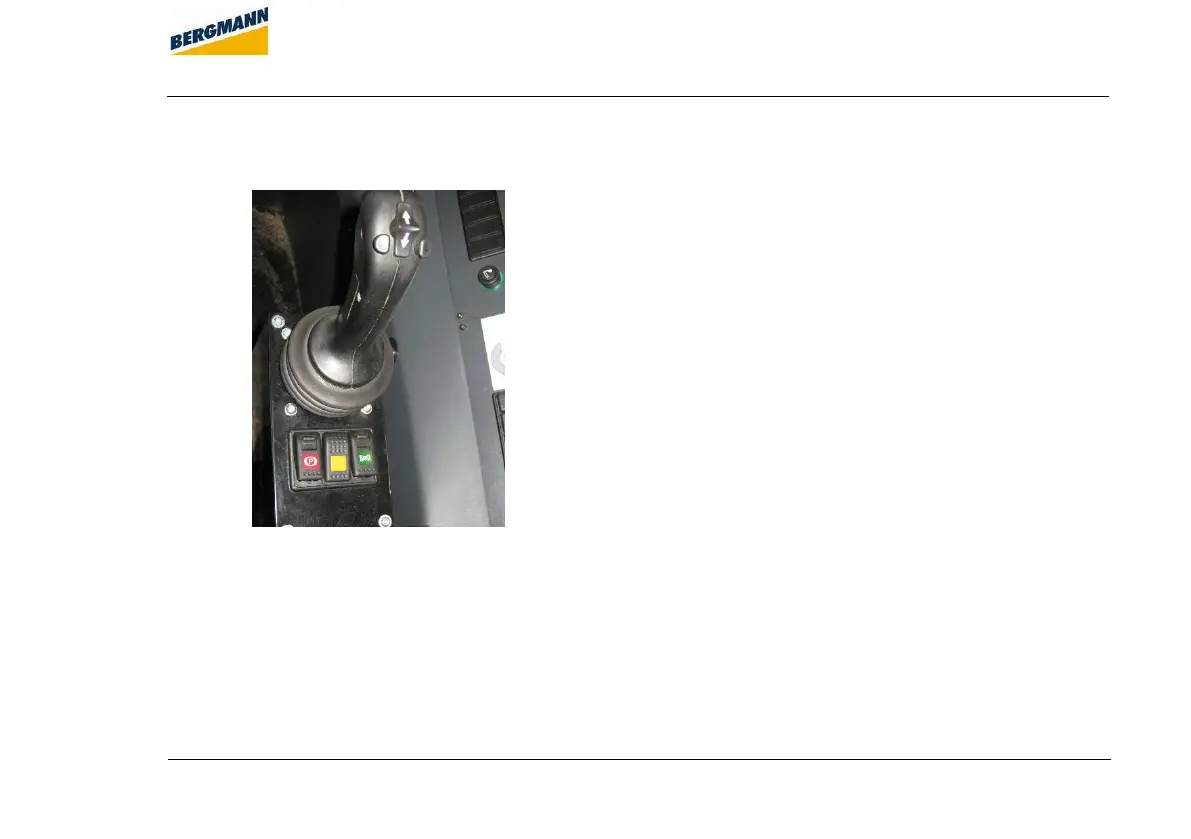

When the joystick is moved, the following cylinder movements are actuated:
Fig. 8-1
Joystick forward: Trough is lowered
Joystick back: Trough is lifted
Joystick to the right: Trough is turned to the
right
Joystick to the left: Trough is turned to the
left
