Operator stand / cab
Operating manual, Dumper – 3012 PLUS
99 - 131
28 April 2015
Bergmann Maschinenbau GmbH & Co. KG
1 – Weight adjustment
2 – Height adjustment
3 – Horizontal spring mechanism
4 – Horizontal adjustment
5 – Seat angle adjustment
6 – Seat depth adjustment
7 – Backrest extension
8 – Lumbar support
9 – Armrest
10 – Armrest angle
11 – Backrest adjustment
12 – Turning mechanism
13 – Cushioning mechanism

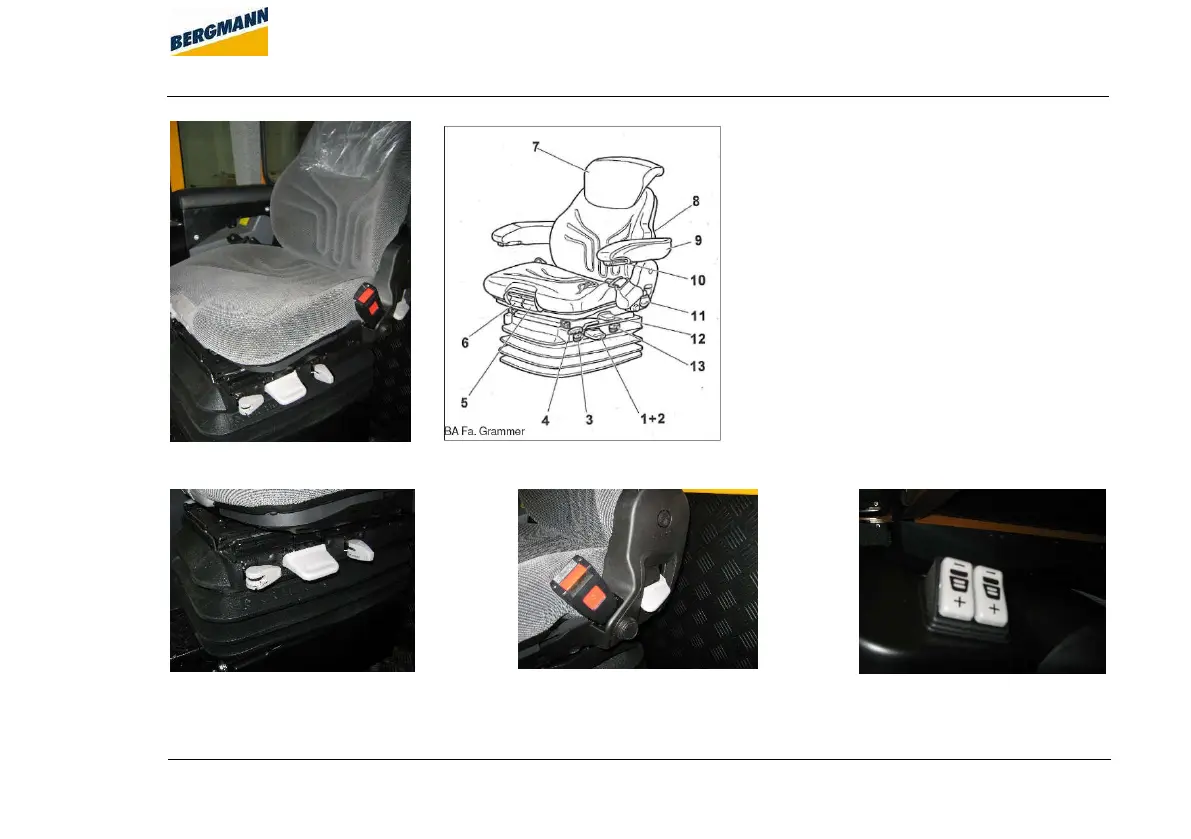

Fig. 9-36 Fig. 9-37
Fig. 9-38 Fig. 9-39 Fig. 9-40
