Bergstrom NITE Phoenix - Wiring 12-Volt Parallel Batteries

2-4
Electrical Installation
Step 1: For the positive (+) to positive
(+) parallel connections measure and
cut pieces of red cable to length. Attach
a ring terminal to each end using a
professional grade crimper. Place heat
shrink around each terminal and heat.
Then loom it. Use these cables to
connect all positive (+) terminals on all
4 NITE Batteries.
Step2: For the negative to negative
connections repeat procedure using
black cables. Then loom it. Connect all
negative (-) terminals of the 4 NITE
Batteries together.
Do NOT use truck frame as a ground
6b
b

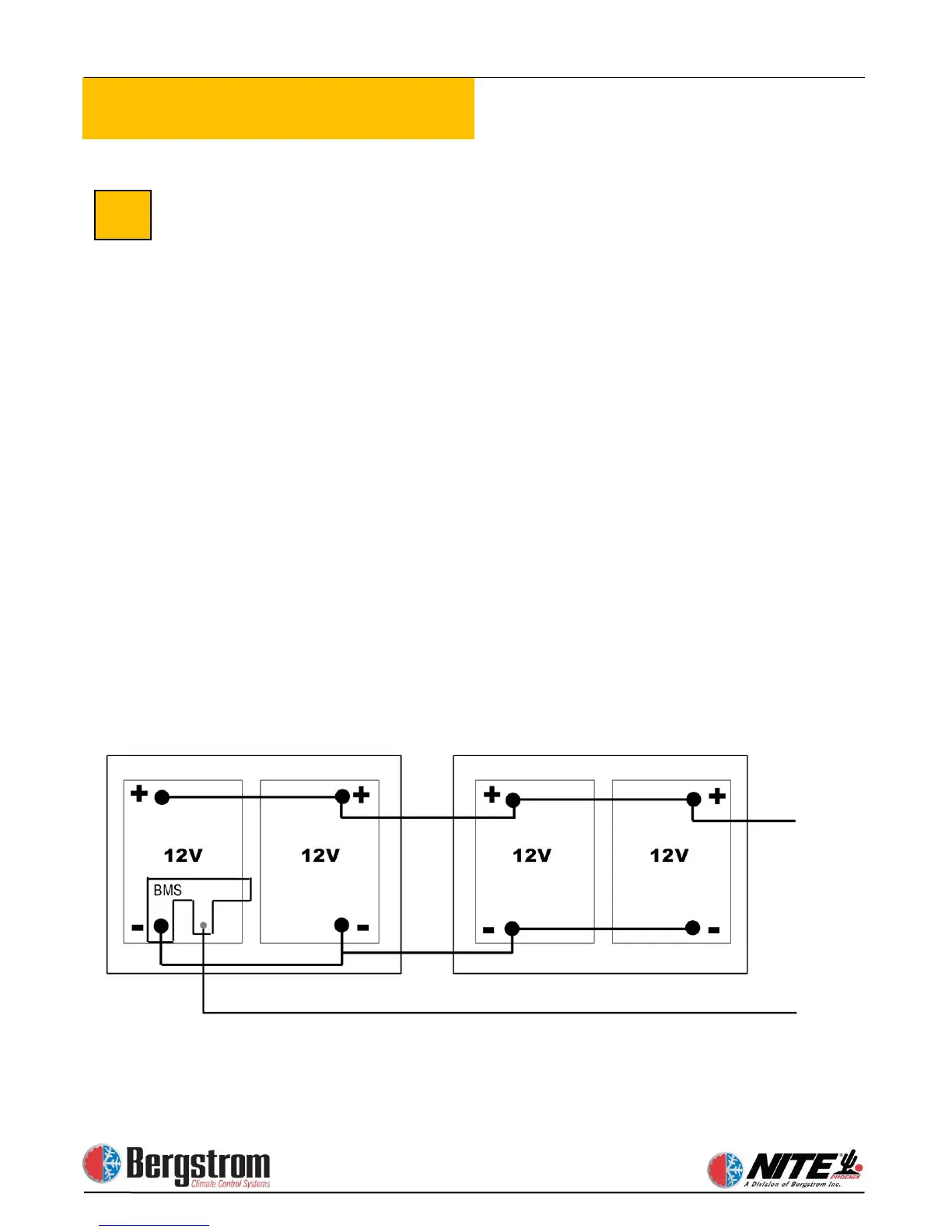

Directions for Wiring A 12-Volt Parallel, 4 Battery NITE Phoenix
Parallel is all positives connected together and all negatives connected
together.
Battery Set
Battery Set
Connect
positives here:
AC Unit,
Heater, and
Separator
Connect
negatives here:
AC Unit,
Heater, and
Truck Battery
negative
BMS=Battery Management System
