DO NOT CONNECT POSITIVE TRUCK BATTERY CABLE YET. WE
WILL CONNECT THIS CABLE ONCE FINISHED.

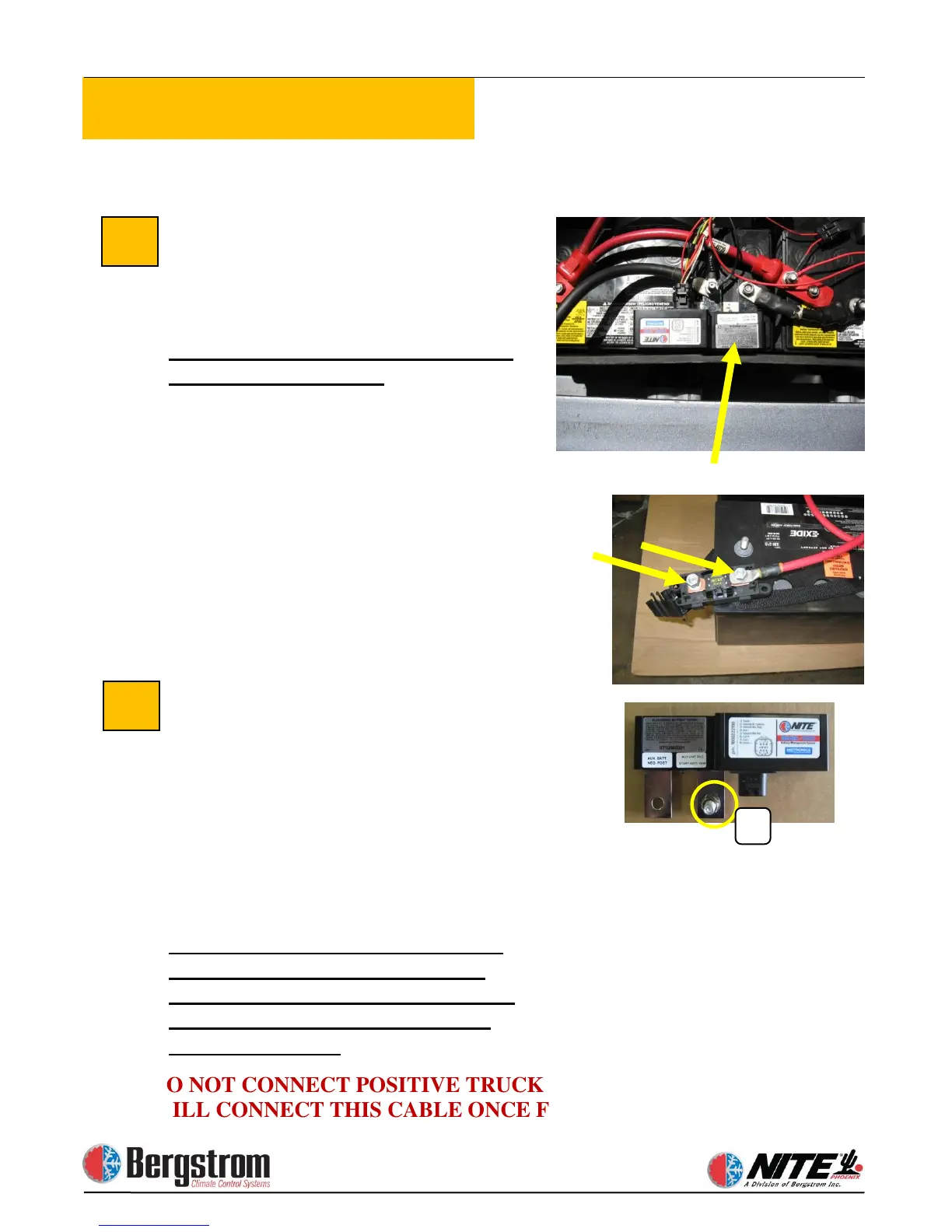

Install Battery Management System
Lug with (open hole) mounts on the
battery negative post. Grounds for the
Phoenix and Aux heater will connect to
the threaded stud post (A-bottom photo)
along with the ground cable from the
truck starting batteries
. This device is
monitoring amps drawn from the batteries
as well as the charging current to the
batteries. It also controls the separator
solenoid.
Connect Power Cables from Phoenix
Unit to the
NITE Batteries. Connect
positive cable from the NITE Phoenix unit
to the 100 amp mega fuse in the fuse
holder. Kit contains 2 lugs with 5/16
diameter holes. Make a short (jumper)
battery cable to go from the fuse to the
Aux battery positive terminal of the NITE
Batteries. Trim end of lug if necessary to
prevent damage to fuse.
Connect the negative cable from the
NITE Phoenix
unit to the negative
threaded stud (A) (see photo at right)
on the BMS. Also see diagrams on
pages 2-3 and 2-4.
Battery Management System Installed
