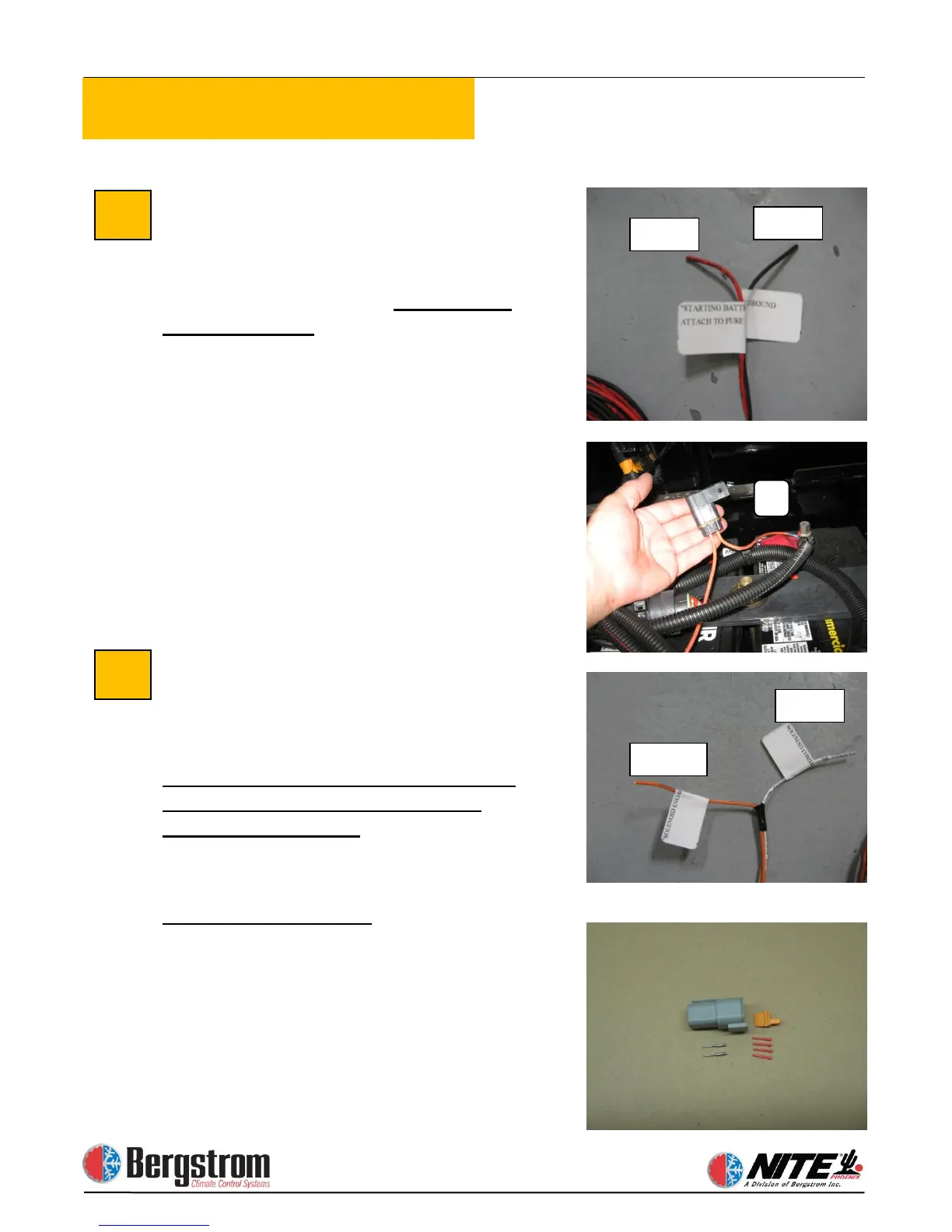

Connect Battery Management System
to Start Batteries. 2 wire harness from 8
pin connector. This harness routes from
the BMS in the Aux battery box to the
truck starting battery box.
This harness
The red connects
through the supplied, field installed, 5
amp mini fuse and holder (A) to any 12
volt POS post in the truck starting battery
box. The black connects to any 12 volt
NEG post in the battery box. It is vital that
these wires connect in each box.
Connect Battery Management System
to Battery Separator.
This 2 wire
harness from the 6 pin connector routes to
the battery separator solenoid.
This harness must be loomed. Notice:
the terminal connecting points are
printed on each wire.
Deutsch connector kit.
This connector connects the orange and
white control wires to the Terra Power
switch. This requires the special Deutsch
crimping tool. See crimping tool
instructions on page
2-18 before
