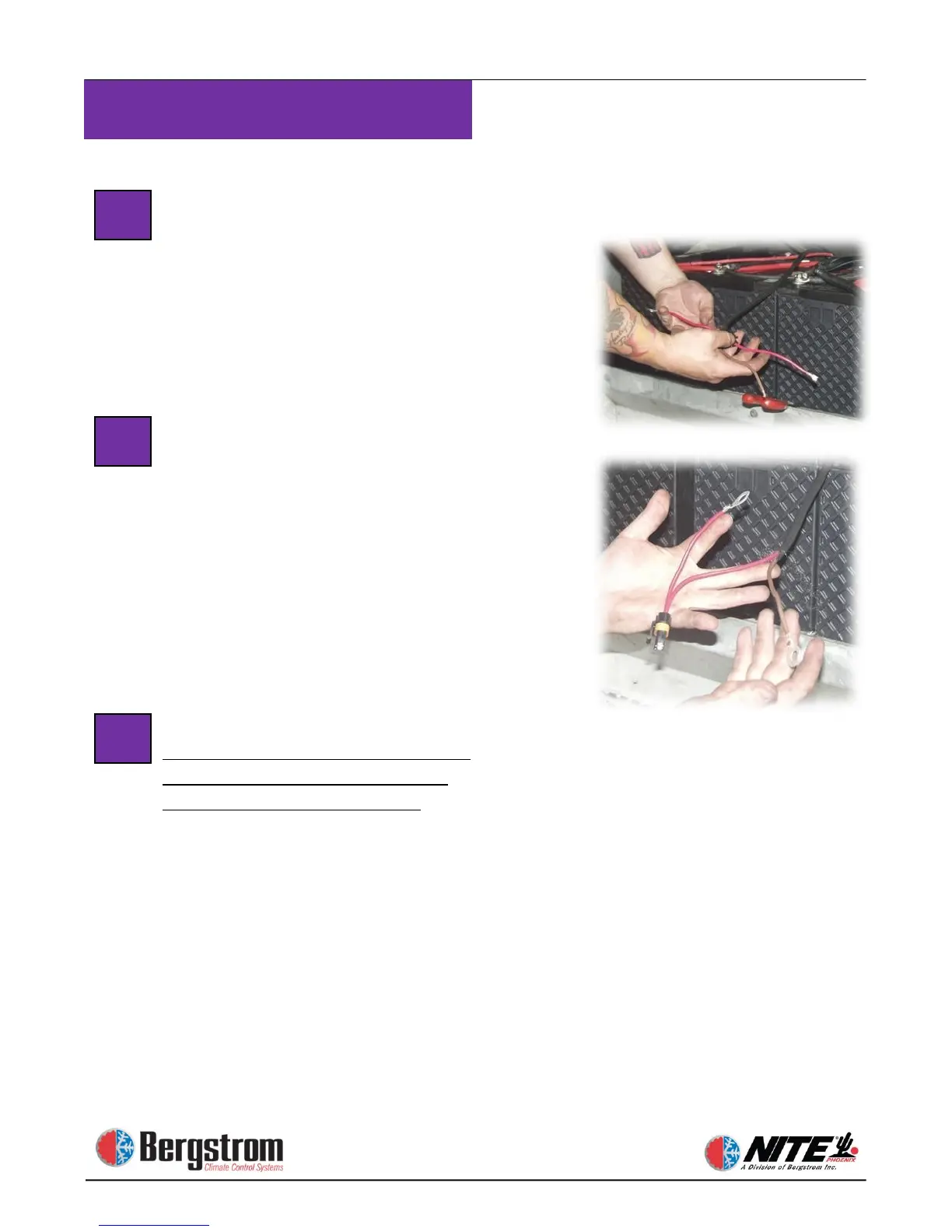

Run Heater Unit Power Cable to
NITE Batteries. Take the heater unit
power cable, run it under the truck
(attach with zip ties where necessary)
over to the NITE Batteries. Strip back
outer cover to expose two inner wires.
Attach Connectors. Strip end off
brown wire. Before stripping red wire,
put the housing of the fuse holder on,
and pull the red wire through. Now strip
the end of the red wire, attach terminal
and crimp. Pull red wire back into fuse
holder. Push rubber seal into place.
Attach ring terminal to ground wire and
crimp.
Attach Wires to NITE Batteries.
Connect Aux heater ground wire to
ground terminal threaded stud of
Battery Management System. Connect
heater unit positive wire to positive
terminal of NITE Batteries. Insert 20
amp fuse into fuse holder. Tighten all
connections.
YOU CAN NOW RECONNECT
THE TRUCK’S BATTERIES TO
TEST THE SYSTEM.
