Optional Webasto Heater controlled
by the Phoenix controller.
WARNING: If you have a Webasto
fuel operated heater that was installed at
the factory or prior to the Phoenix
install, you can continue to operate the
heater with the existing controller. IF
you choose to wire the existing factory
installed Webasto heater to the Phoenix
controller, YOU COULD VOID THE
FACTORY WARRANTY OF THE
HEATER!
DO NOT USE PHOENIX DUCT FOR
HEAT VENT.
ATTN: Refer to Webasto manual for
all heater installation instructions
then proceed to steps below for
connecting Webasto heater to the
Phoenix unit.
Attach Webasto heater control harness
to Phoenix Unit. Route the control
cable along the bed towards the Phoenix
unit. Use zip ties as needed.

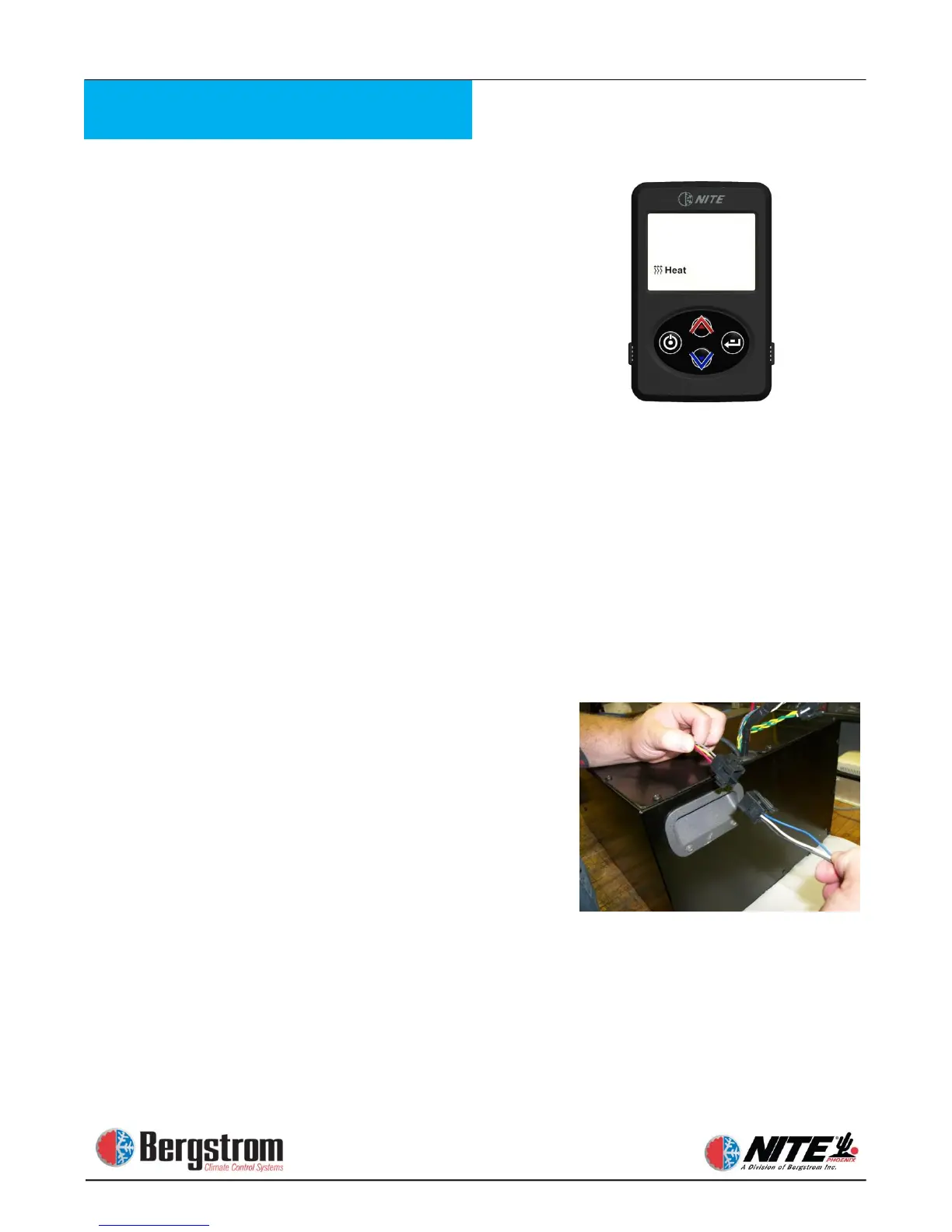

Now connect the heater control harness
to the Phoenix unit harness (as shown in
photo). The Webasto heater in the
Phoenix kit is prewired to connect
directly into the Phoenix unit harness.
For pin numbers and wire colors see
wiring diagram in section 5.
