X13 Exploded Views May 2007
II. ELECTRICAL

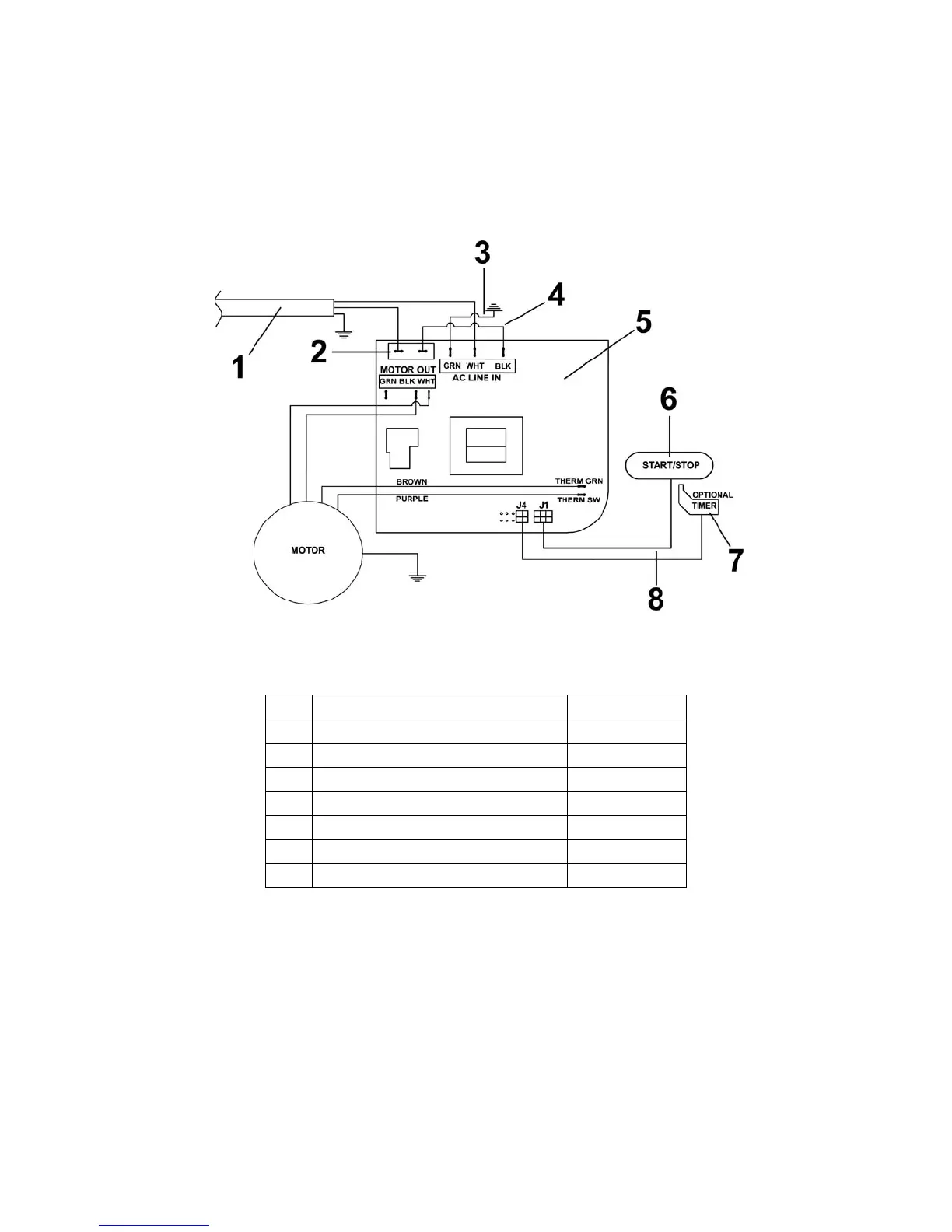

1. WIRING DIAGRAM – X13 & X13E
1 Power Cord 4175-00719
2 Circuit Breaker 2675-00752
3 Ground Jumper 4175-00727
4 Jumper 4175-00121
5 Main PCB Board 2675-00928
6 PCB (Start/Stop Switch) 2675-00921
7 Timer Assembly (optional) 4175-00730
8 Upper Panel Wire Assy 4175-00715
To Next Page
