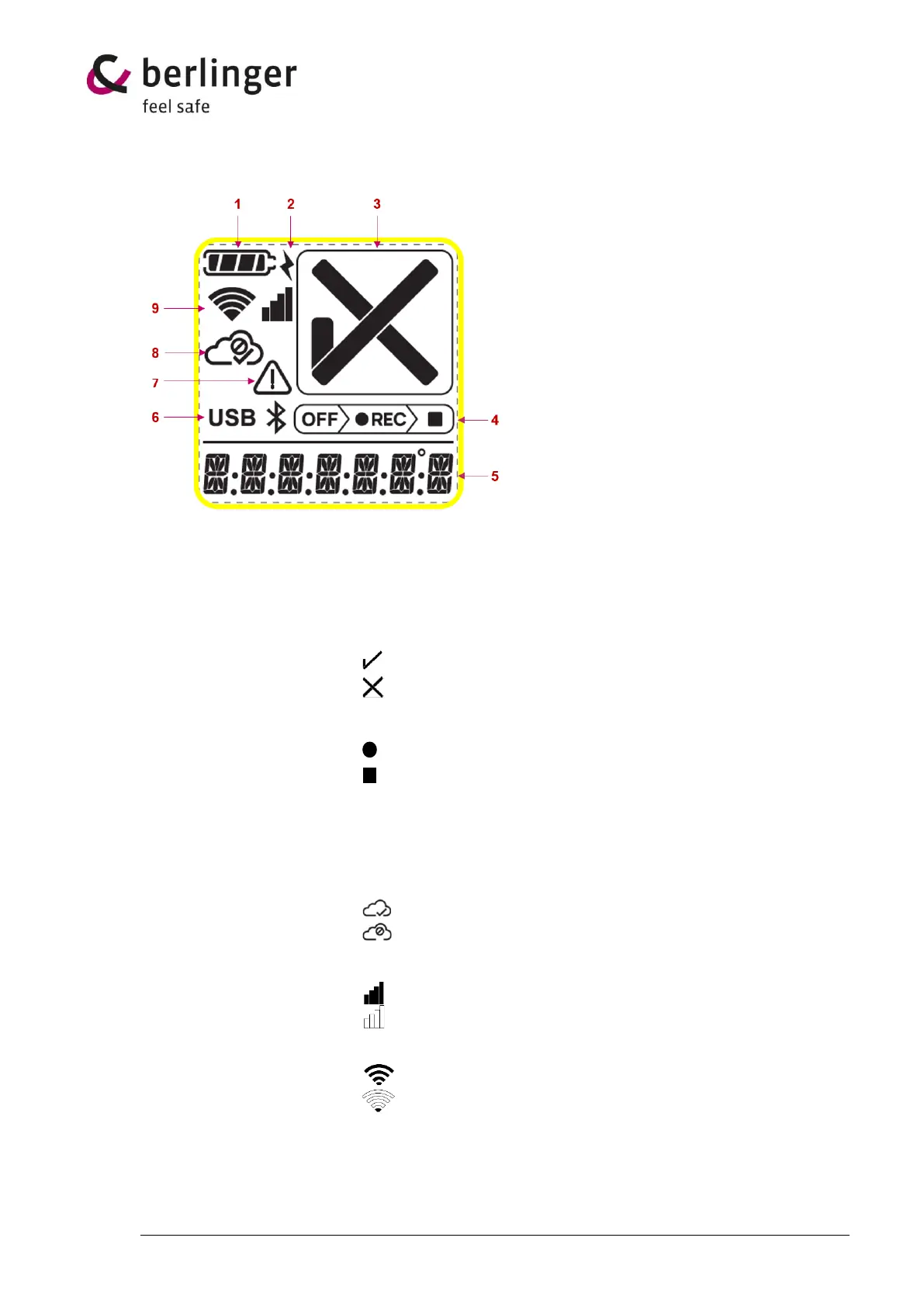

4 Display
Icon Name Description
1 Battery status Indicates the battery status
2 Battery charging Indicates whether external power has been plugged in
3 Alarm status Device indicates that there is no alarm violation
Device indicates that there is one or more alarm violation
4 Logging Modus OFF → SmartMonitor SITE L is ready to start
REC → SmartMonitor SITE L is logging
→ SmartMonitor SITE L has stopped
5 7-digit display Information line (see more in section 7-digit display)
6 External readout Device ready for readout via USB or Bluetooth
7 Warning Symbol Additional warning for function
8 Cloud status Upload successful
Upload not possible
9 Signal strength Cellular connection
Cellular signal available
No cellular signal available
WLAN connectivity
WLAN signal available
No WLAN signal available
To Next Page
